Customize Mac & Serial of Xpenology images to run Synology in VMWare

Here are:

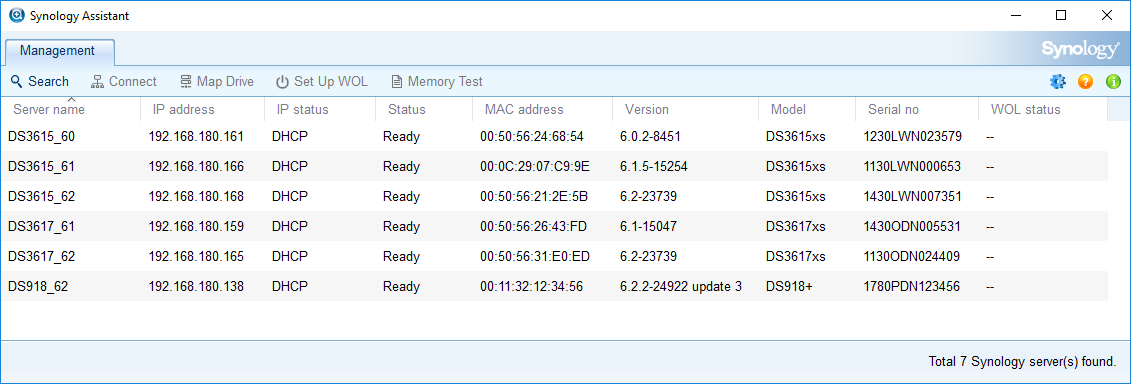

  • all my Xpenology packages used to emulate a Synology with VMWare and
  • how to customize their Mac Address as well as their Serial Number

Click to Read More

The DSM images available in the packages above come from these Synology’s archives.

You can find here or here how to create a Virtual Synology with theses packages (Notice I have fine-tuned those, among others to put the disks in the right boot order for the DS3617xs).


Before importing a package in VMWare, you can update its Mac Address and its Serial to make them unique in your network (E.g.: if you duplicates the images). For that purpose, you need OSFMount, a tool able to update (read and write) the content of .img files.

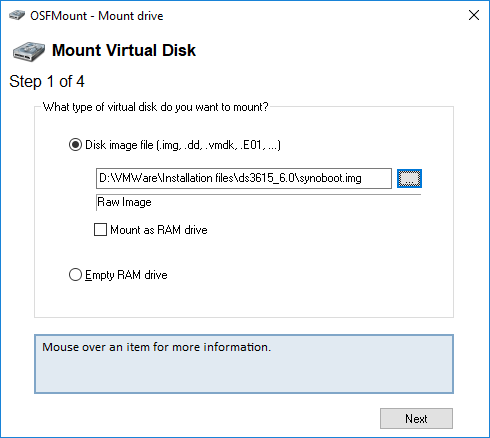

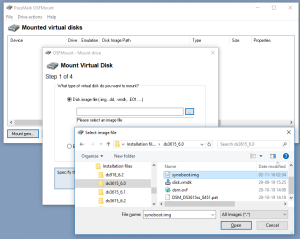

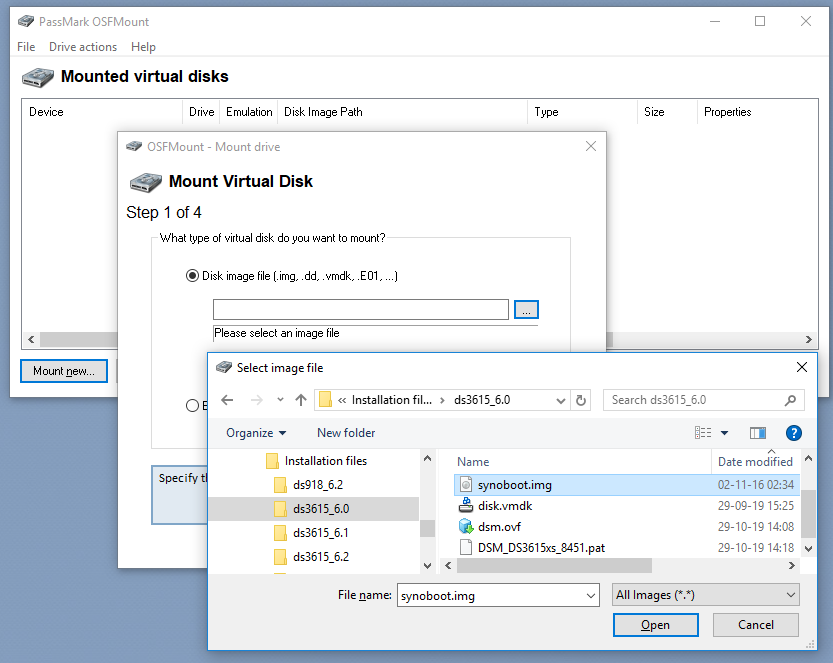

Run OSFMount and open the disk image file “synoboot.img” (Do not mount it as Ram Drive):

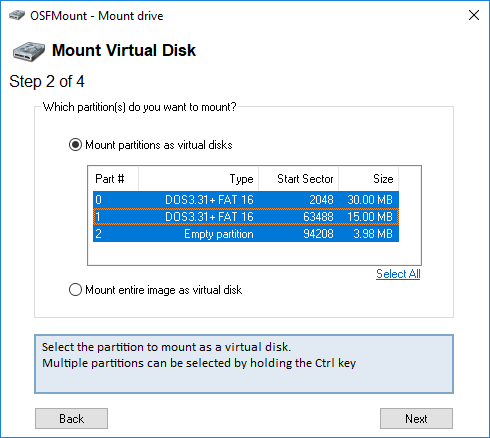

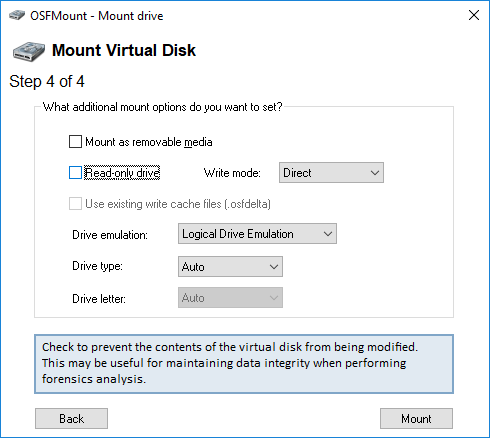

“Select All” the partitions as virtual  disks and uncheck the flag “Read-only drive”:

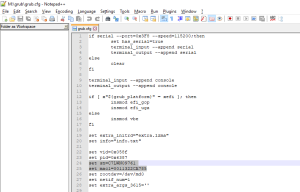

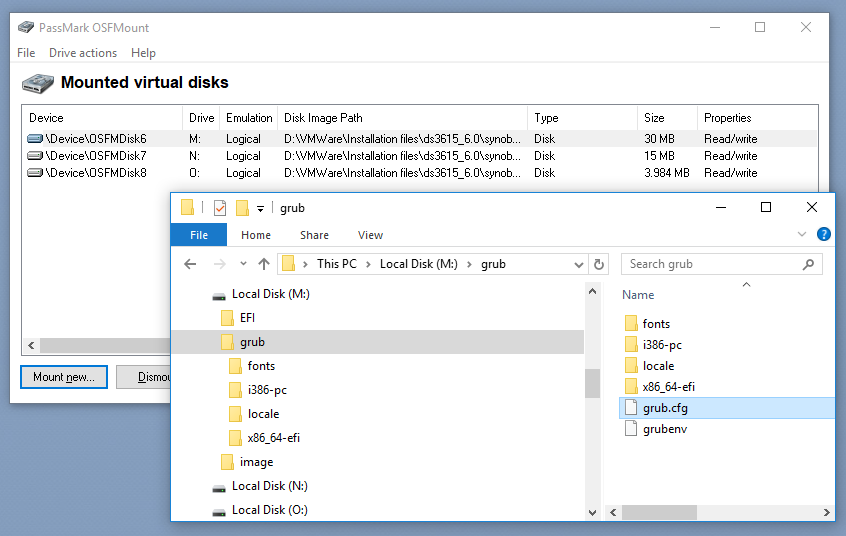

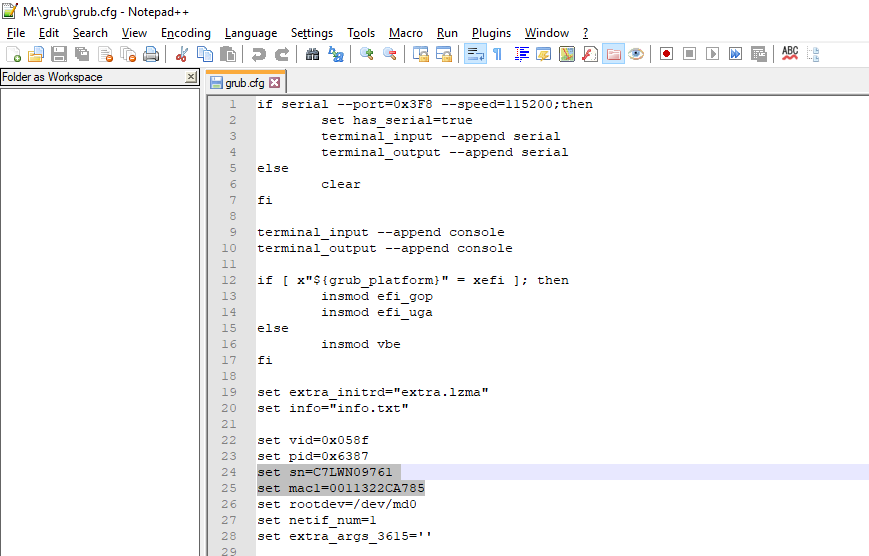

Once opened, double-click on the first drive in the list to open it. It contains the settings to be customized in the file drive:\grub\grub.cfg. Edit that file to change the Serial (set sn) and the MAC address (set mac1):

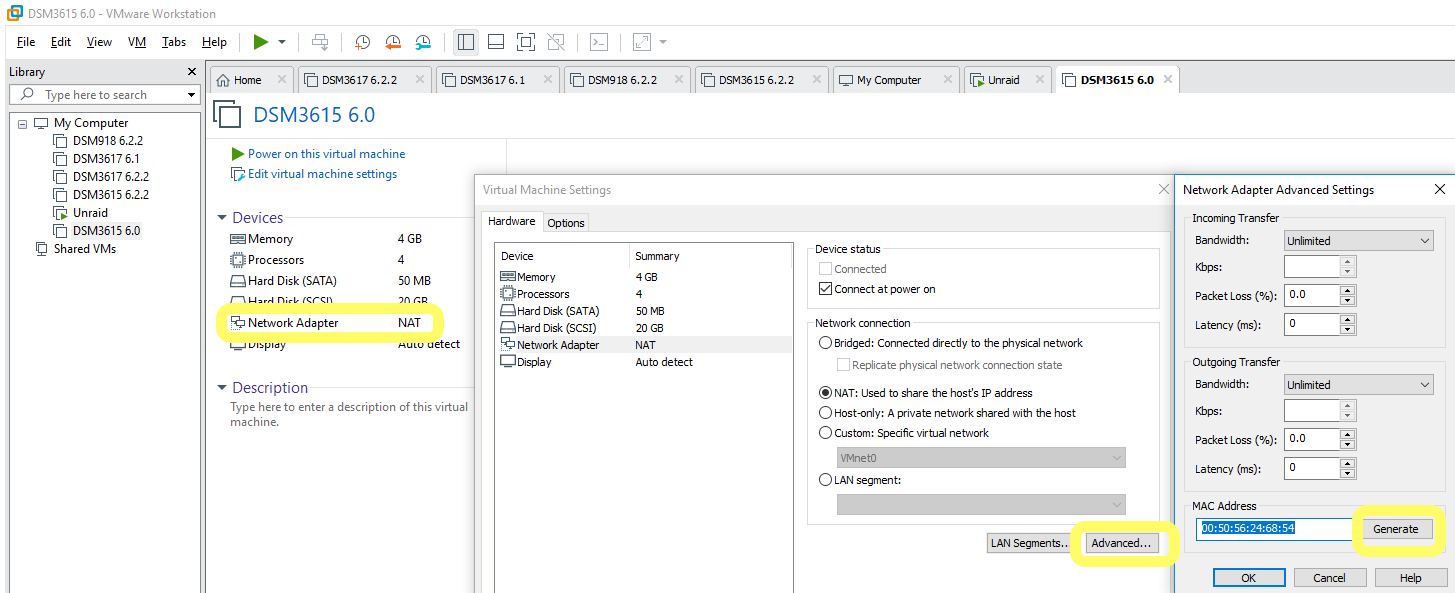

A new MAC address can be generated using VMWare; via a Network Adapter > Advanced > Generate. Click on the button Generate a few times and copy the value in the file above (removing the various semicolons).

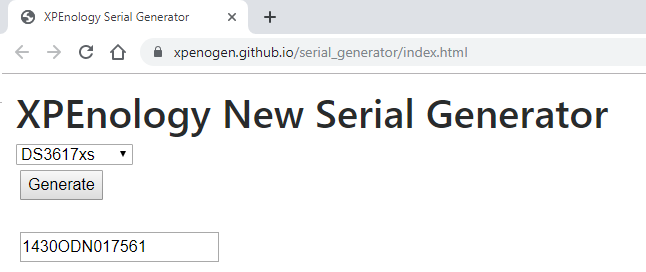

A new Serial can be generated on this site.

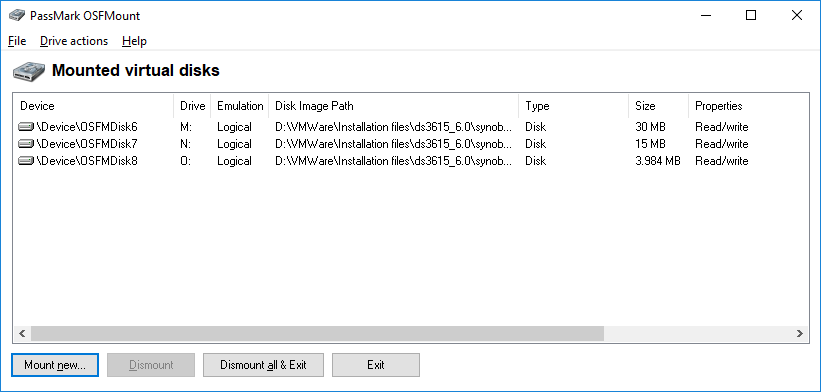

Once done with the edition, “Dismount All” the drives in OSFMount. You can now import the virtual machines in VMWare.

Et voilà.
