  • Setup DSM 7.1 in a Virtual Synology DS3622xs+ using VMWare

    Here is a step by step “How-To create a Virtual Machine to emulate a DS3622xs+ running DSM 7.1” using VMWare and a Loader from redpill

    Click to Read More

    I used a tutorial from internet to create a VM in VMWare 16 and exported this one as ovf. Using that ovf, you can easily setup your own VM with a DS3622xs+ running DSM 7.1.

    1: Download and unzip this package, containing:

    • the configuration of the virtual machine (dsm.ovf and two disk.vmk),
    • the boot file for DS3622xs+ (synoboot.vmdk) and
    • the image of the DSM 7.1 for DS3622xs+ (DSM_DS3622xs+_42661.pat)

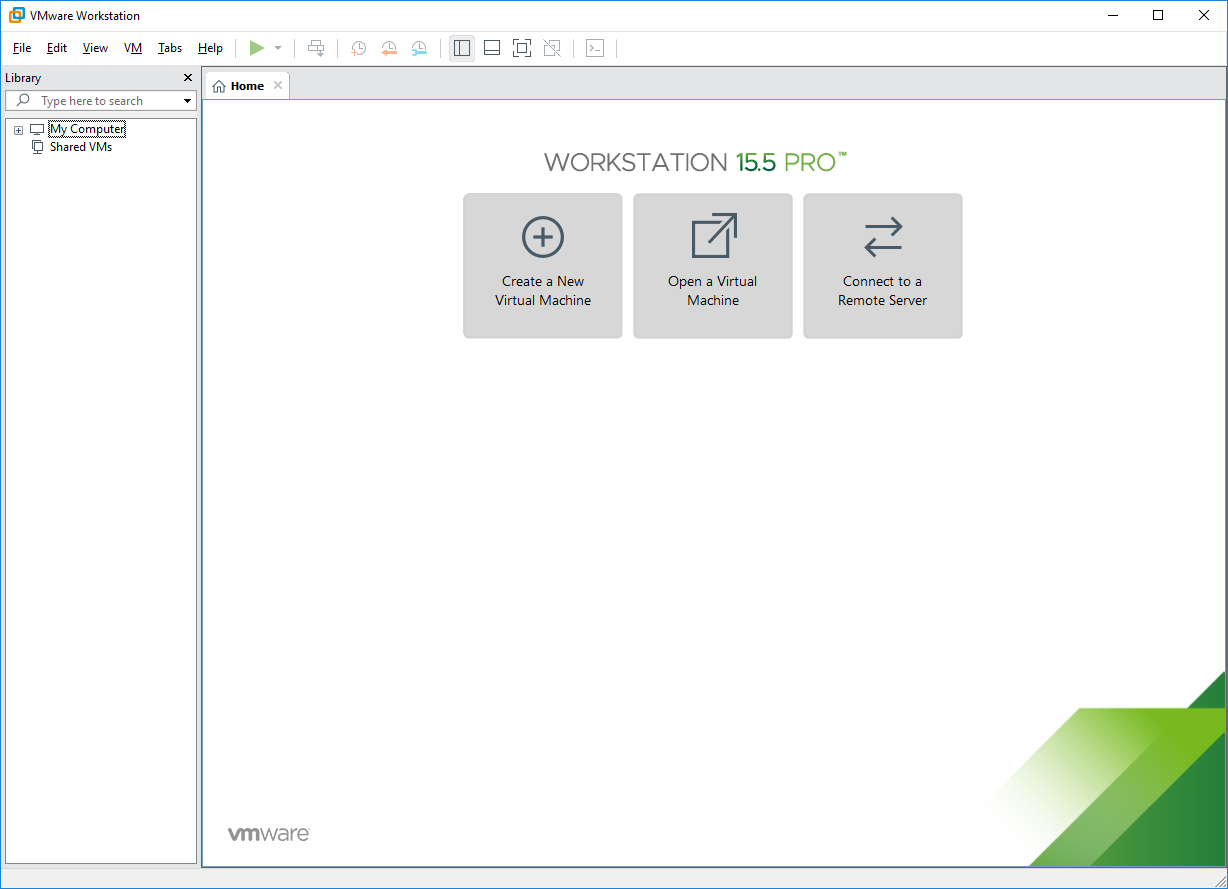

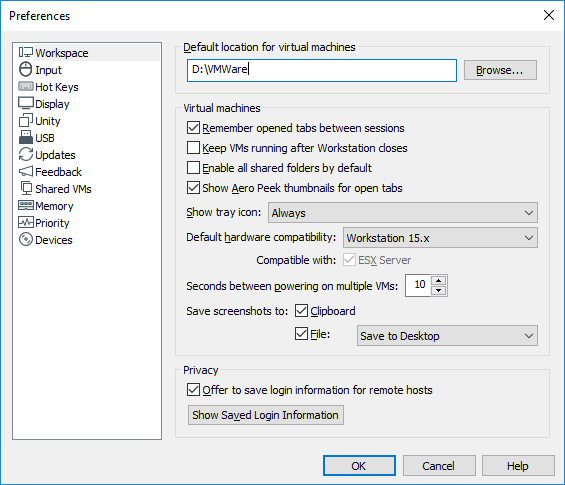

    2: Open VMWare Workstation. If you never configured the default location where you want to create your Virtual Machines, press CTRL-P to open the “Preferences” panel. There, set this default location (I am using E:\VMWare).

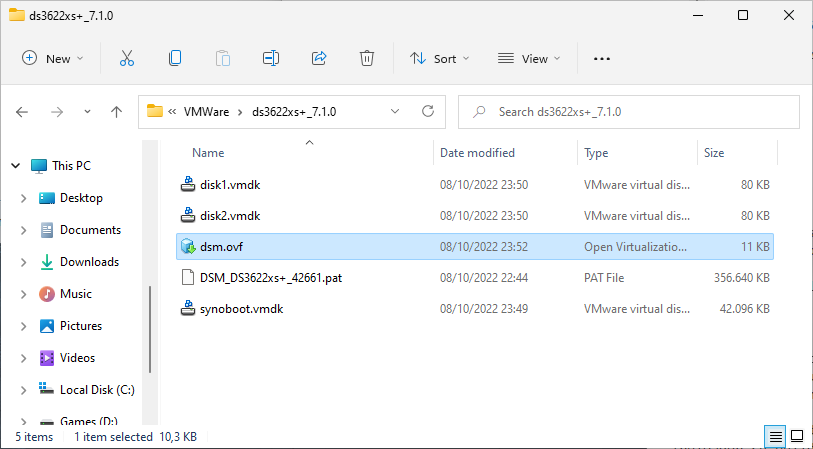

    3: Go next to “Windows Explorer”, in the folder where you have unzipped the package, and double click dsm.ovf. This is going to import the VM into VMWare. Type a name for the new virtual machine (I am using DSM3622xs+ 7.1) and click “Import”.

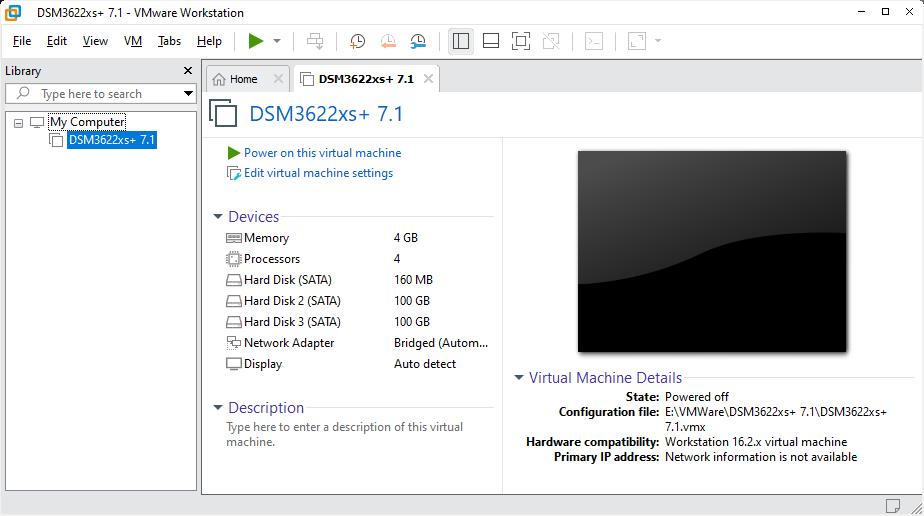

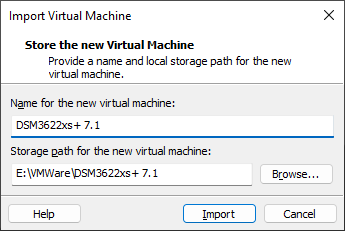

    4: Here is the outcome to the importation. You can now click on “Power on this virtual machine”. If you want, you may also first increase the Memory, the Processors or the size of the Hard Disk 2 and 3 (Do not touch the first Hard Disk  which contains the boot loader).

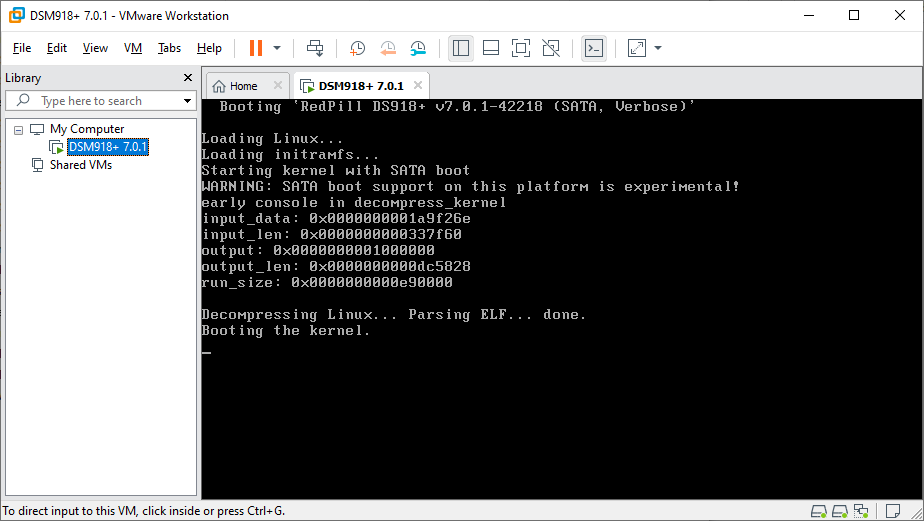

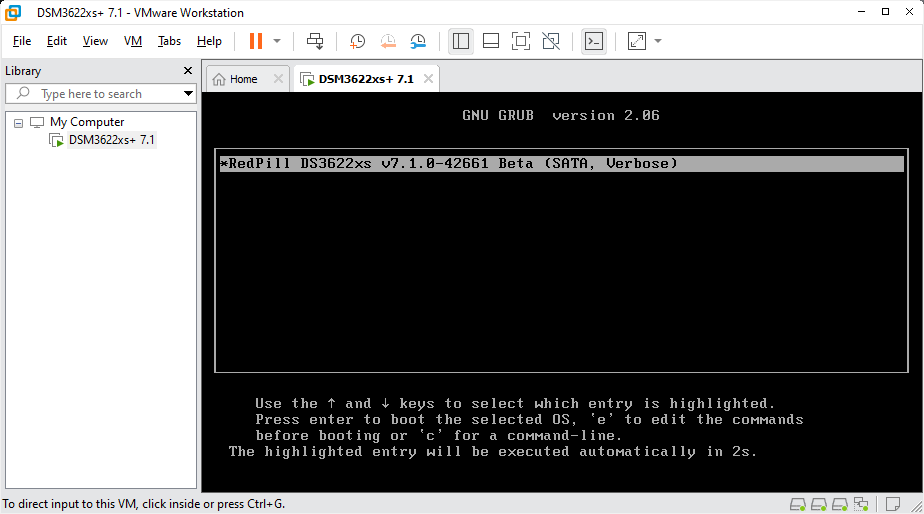

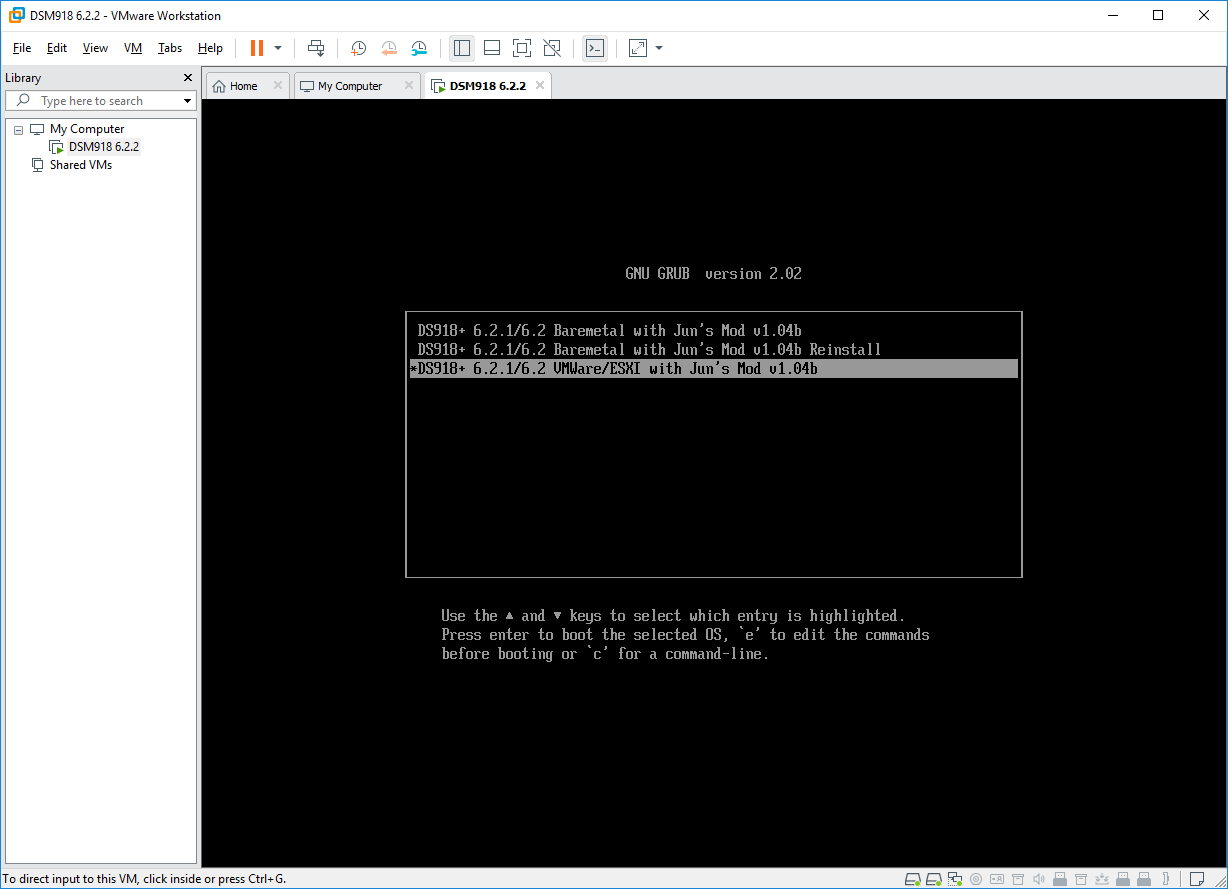

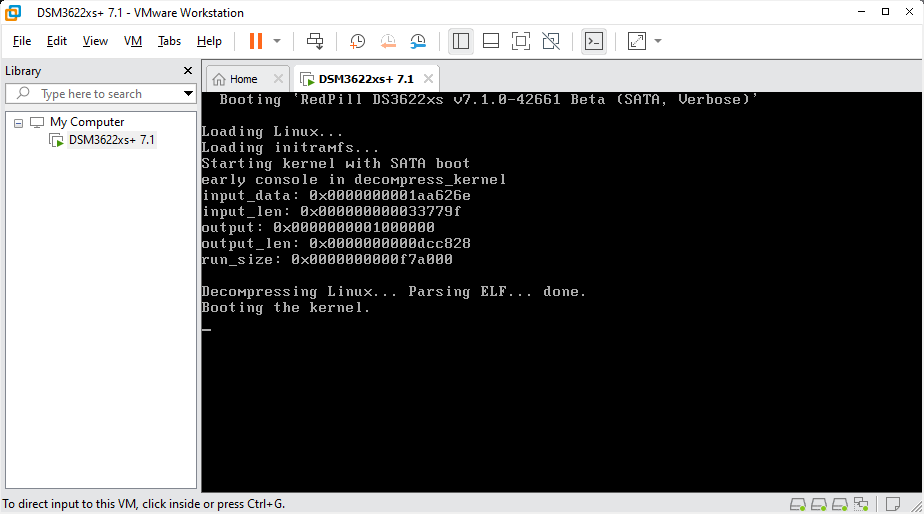

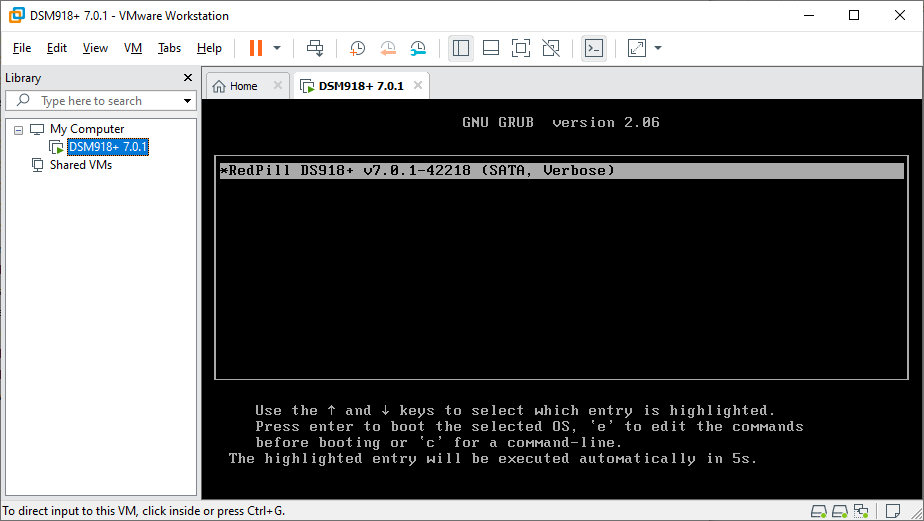

    5: 5 sec after starting the VM, the bootloader will run:

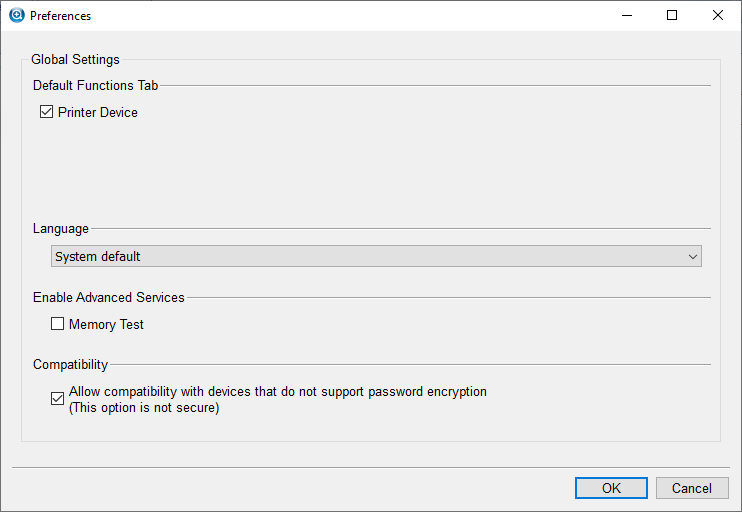

    6: Open the “Synology Assistant”, which is more efficient than the page http://find.synology.com to find your VM, and after +/- 3 minutes (depending on the perf of your PC) click on “Search”. If you didn’t wait long enough, you will see an Error message (In such a case, check that you have enabled the option “Allow compatibility with devices that do not support password encryption” in the preferences – via the gear icon in the top-right corner – and/or click Search “Again”. I never had to do this more than 3 times).

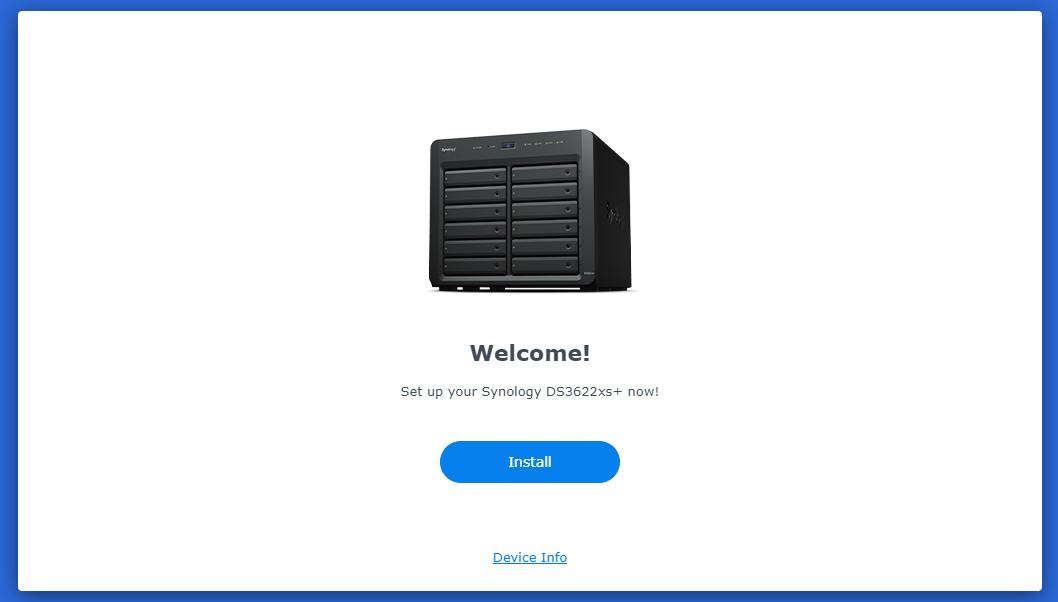

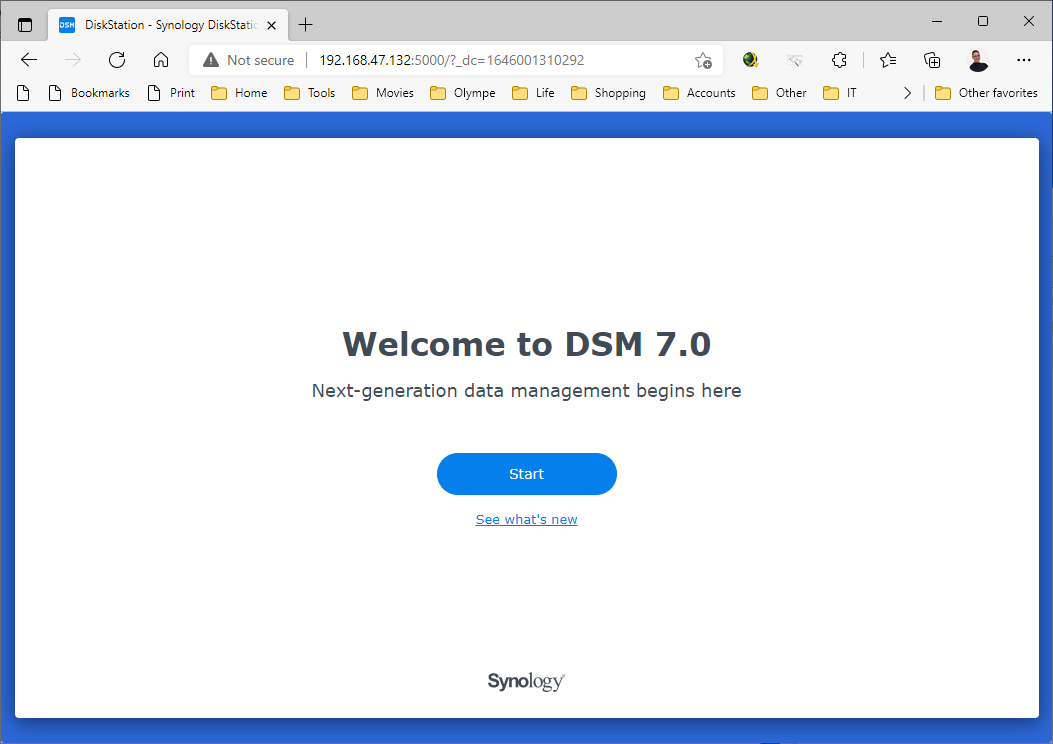

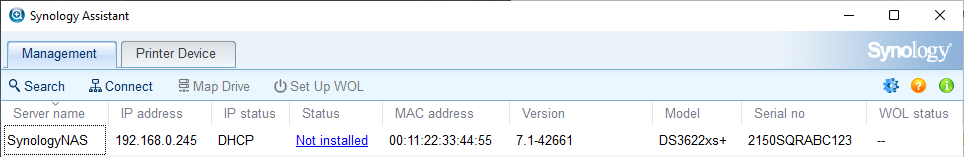

    7: Finally, the Assistant will find your VM. A webpage should automatically open (Otherwise, double-click on the VM). Approve the EULA and click Install.

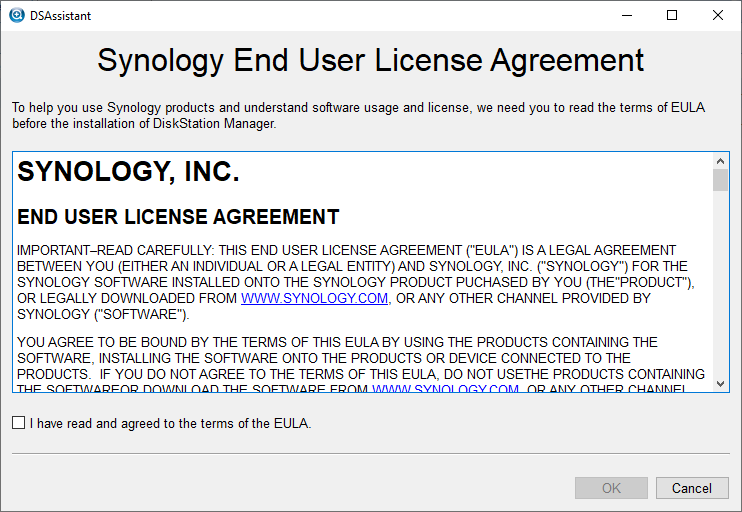

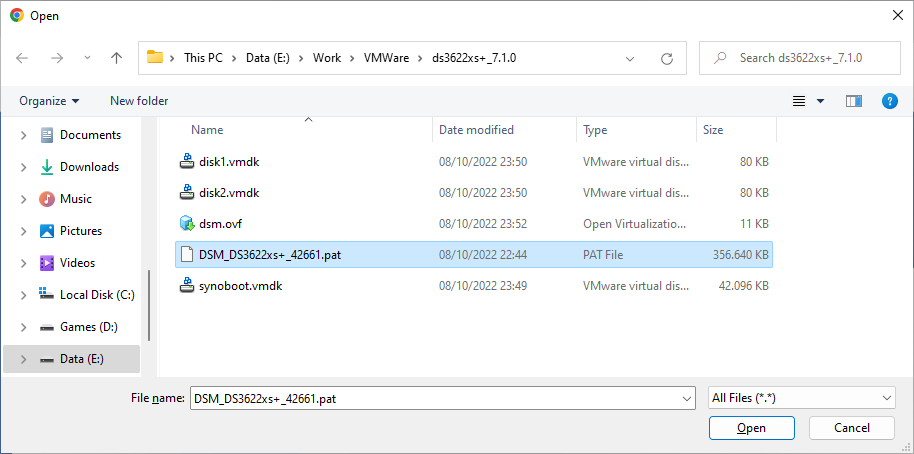

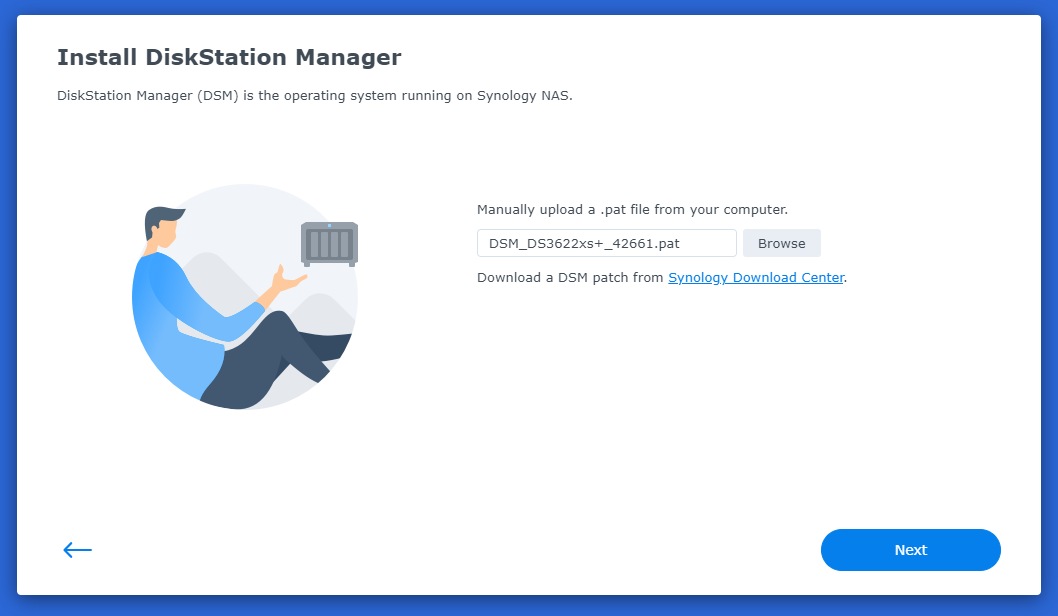

    8: Click next on Browse to select the image of the DSM 7.1 for DS3622xs+ and Select the file “DSM_DS3622xs+_42661.pat” in the folder where you unzipped the package downloaded previously.

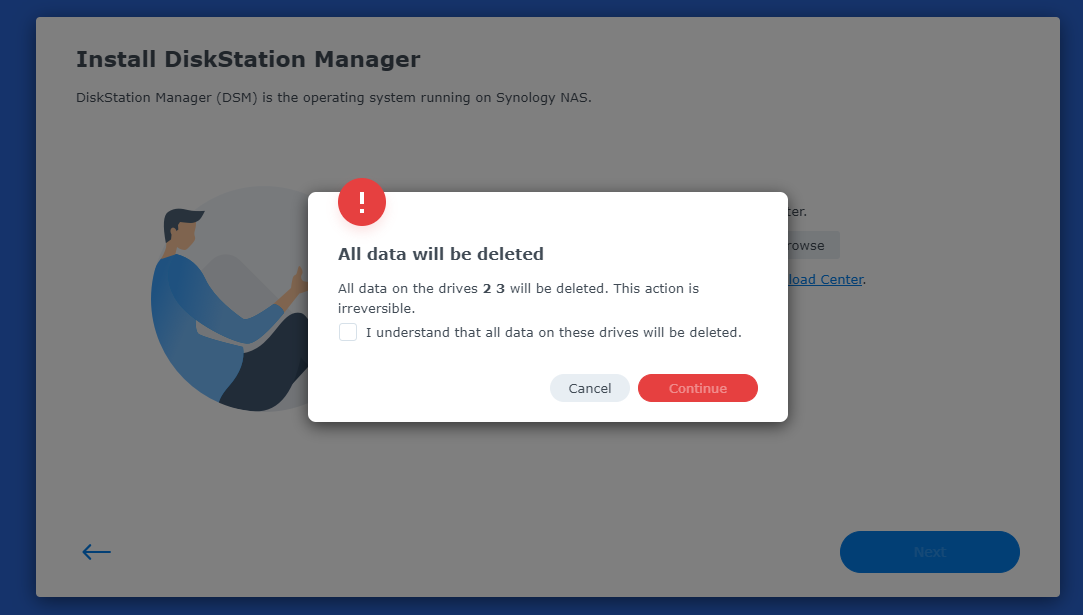

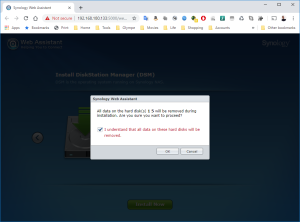

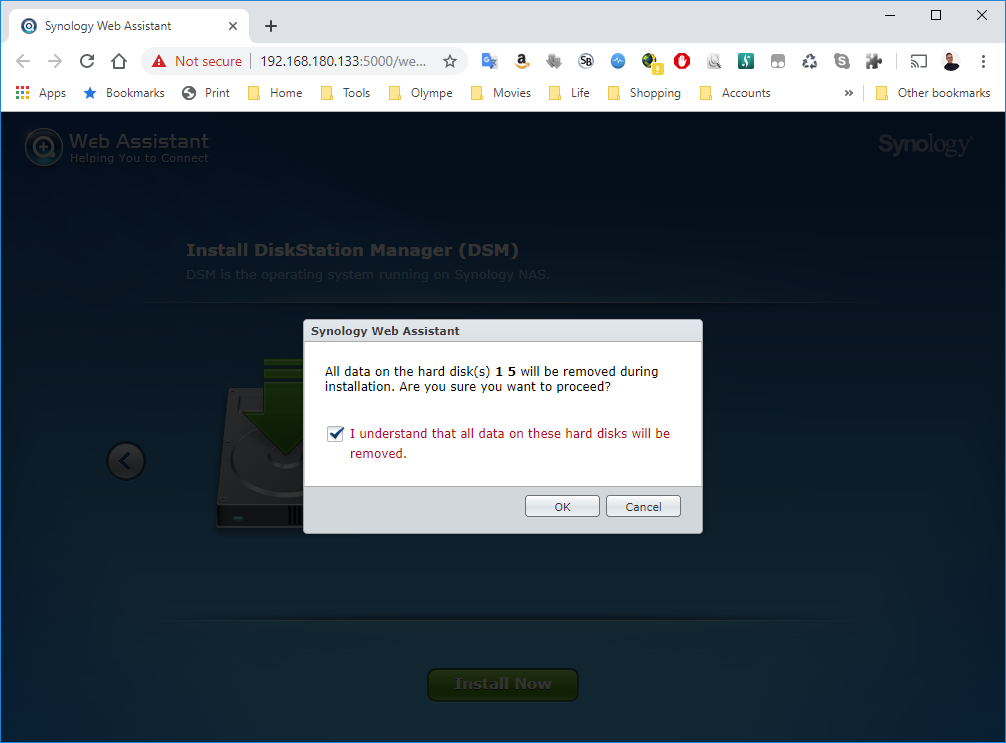

    9: Finally, click on “Next” and confirm that the installation can override the disk… (You can safely tick the “I understand…” it’s the virtual Hard Disk member of the VM. No worry 😉 )

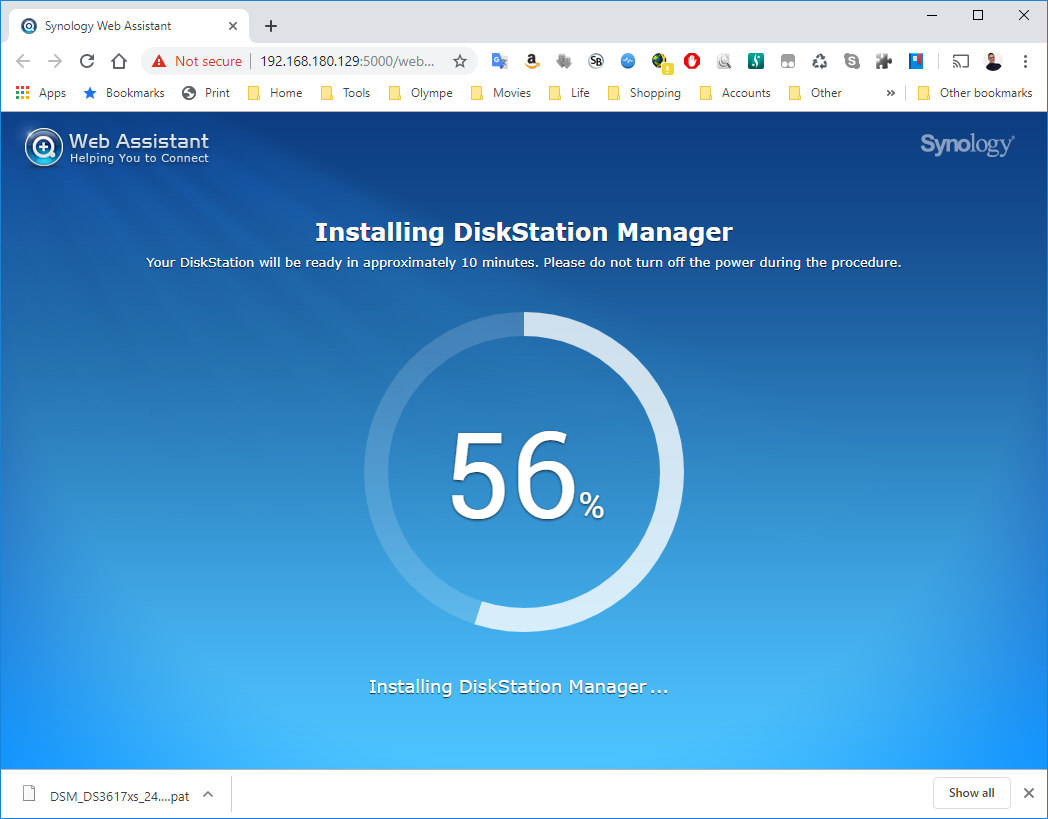

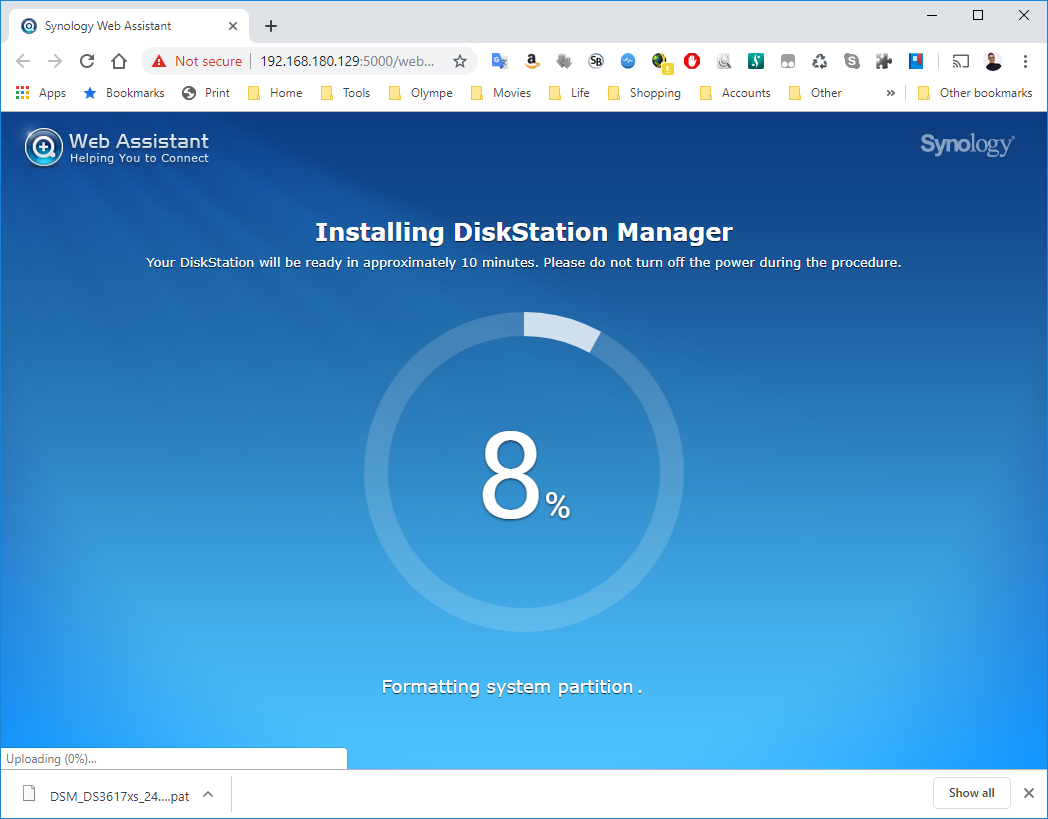

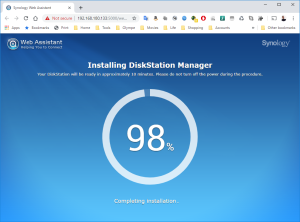

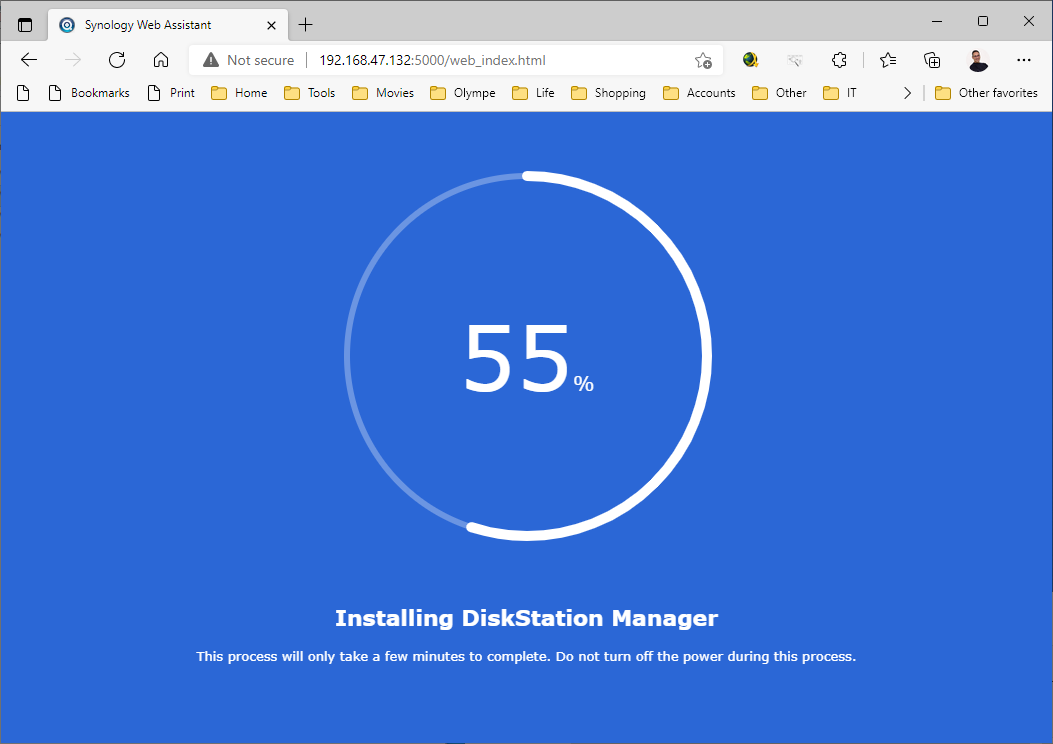

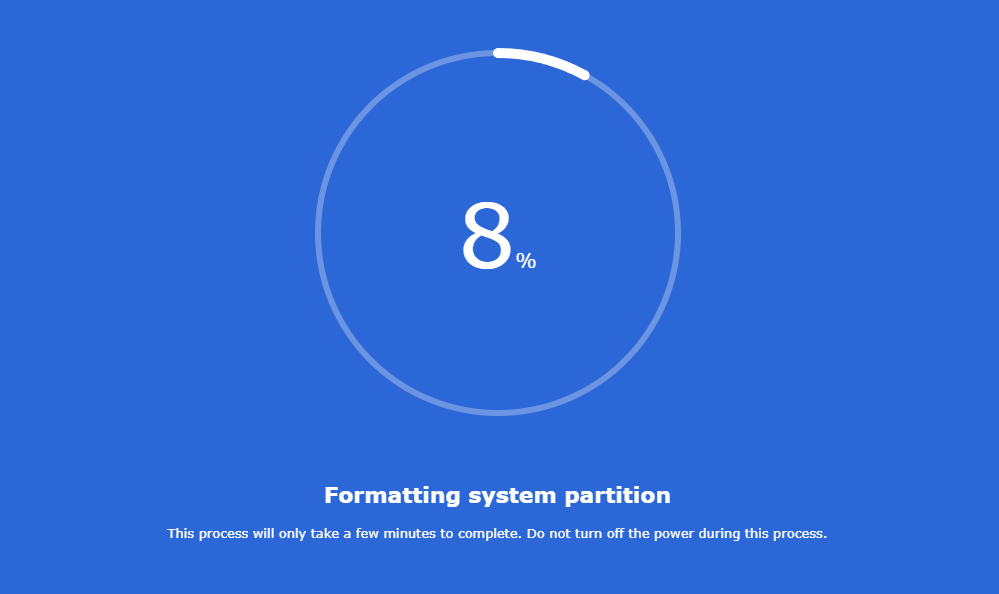

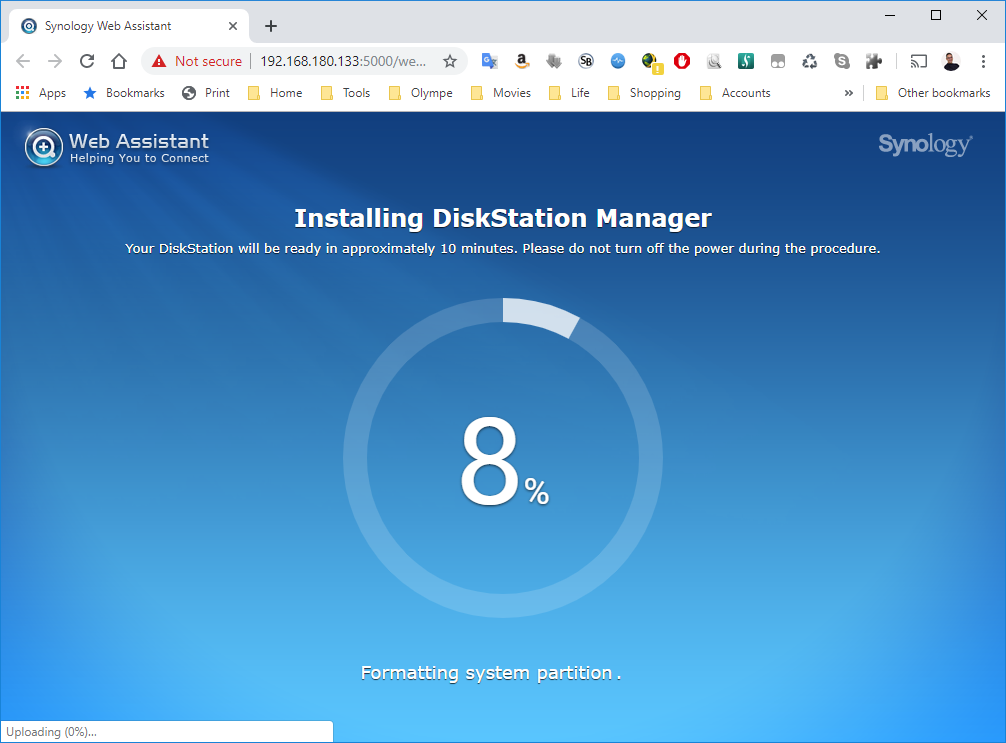

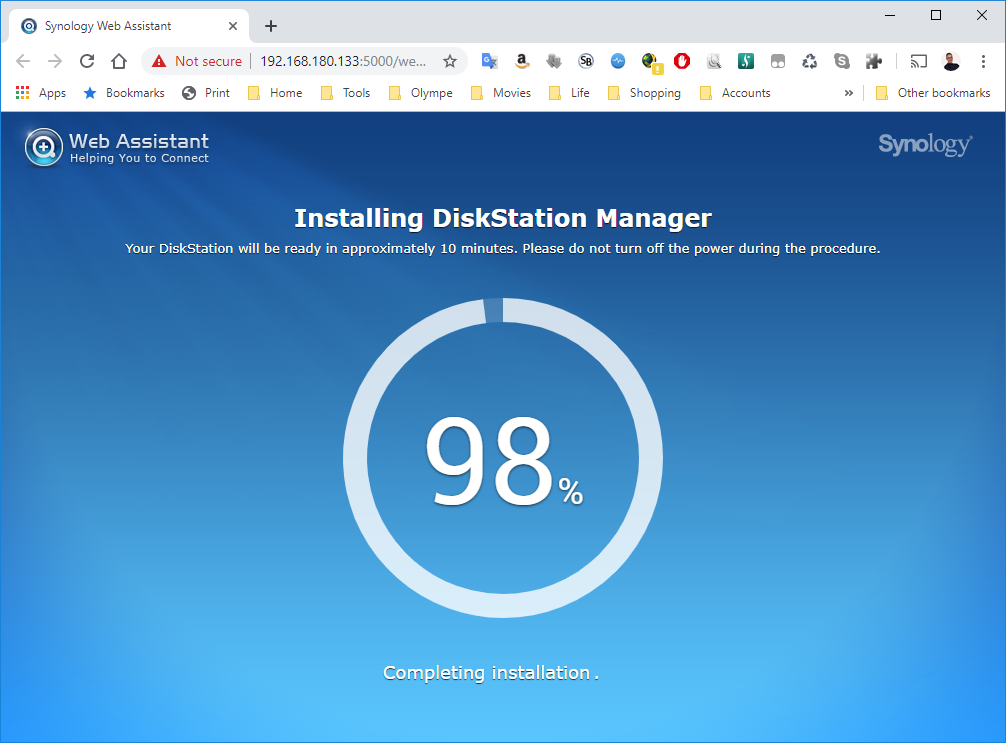

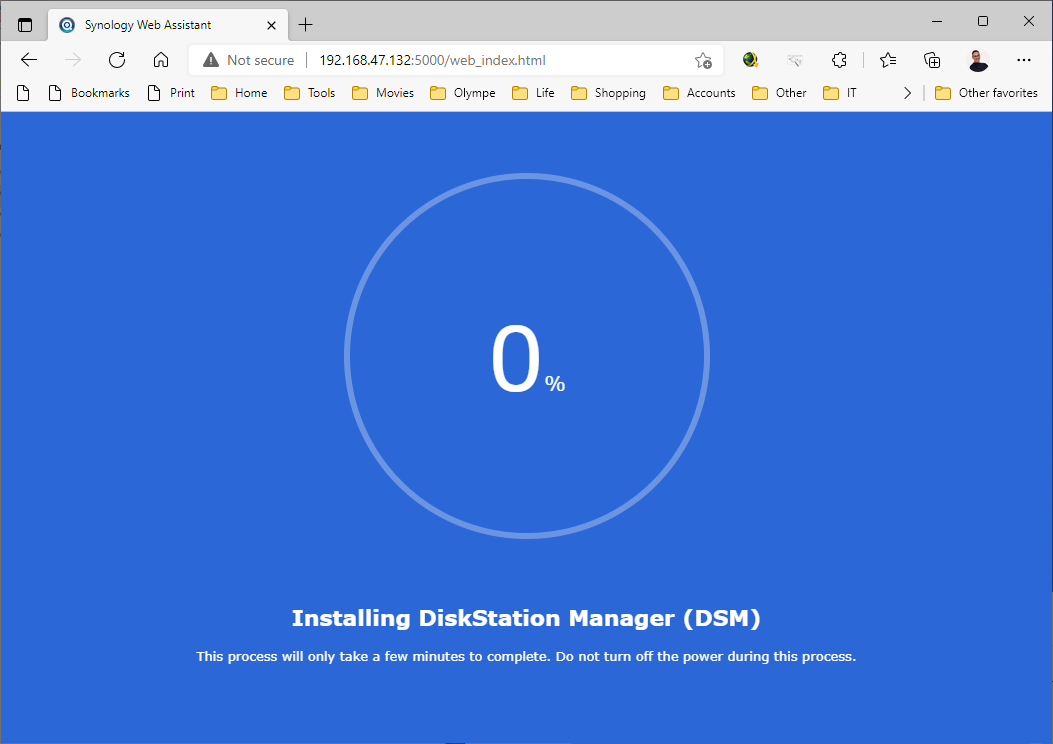

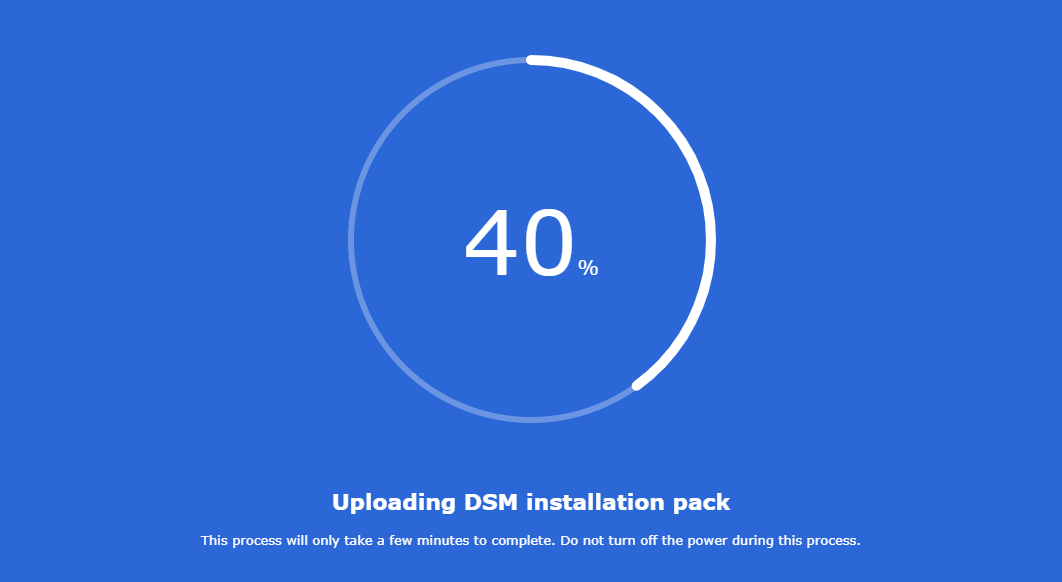

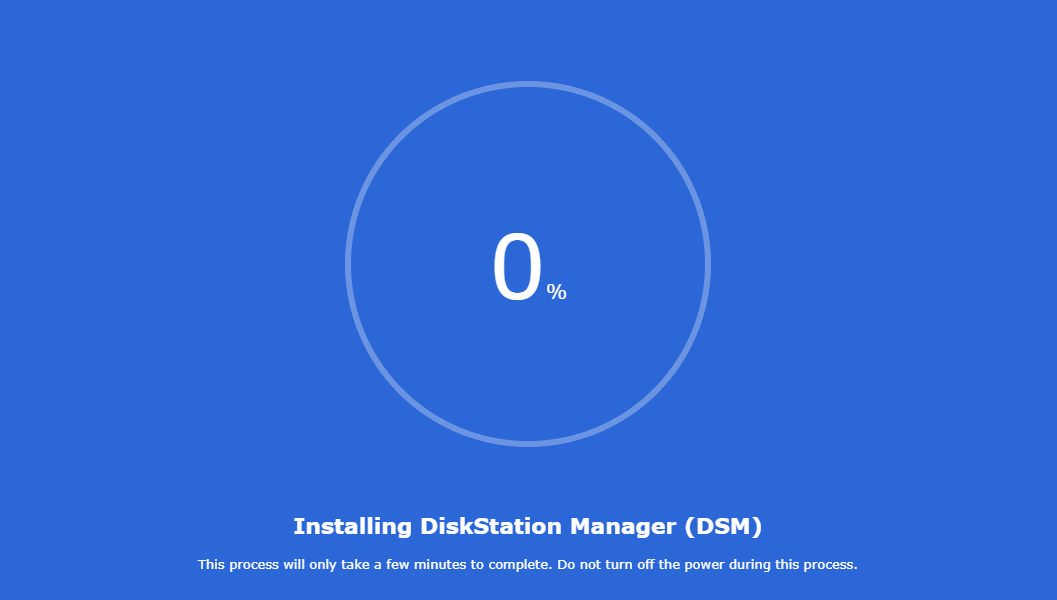

    10: The installation will take a few minutes

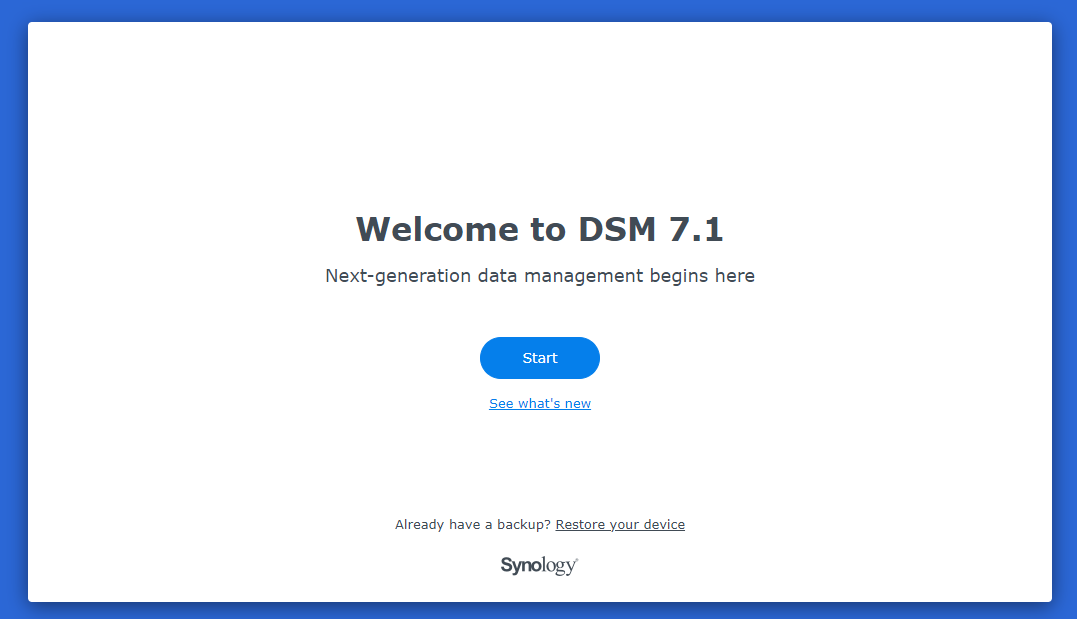

    11: Once the installation complete, you will see in the VMWare Workstation that the VM is rebooting. On the installation page, you see a countdown.

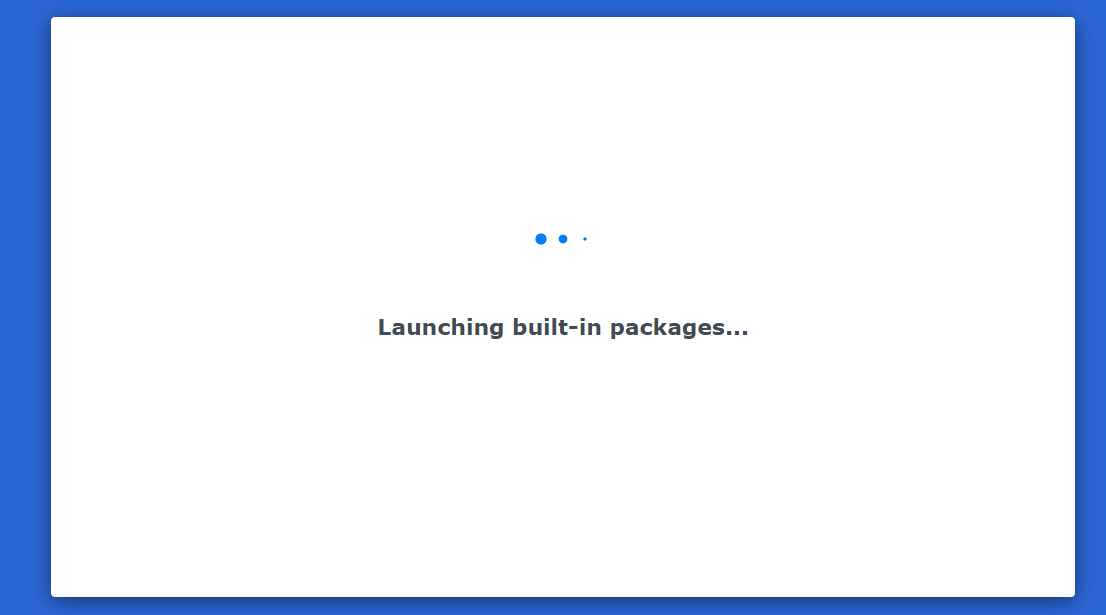

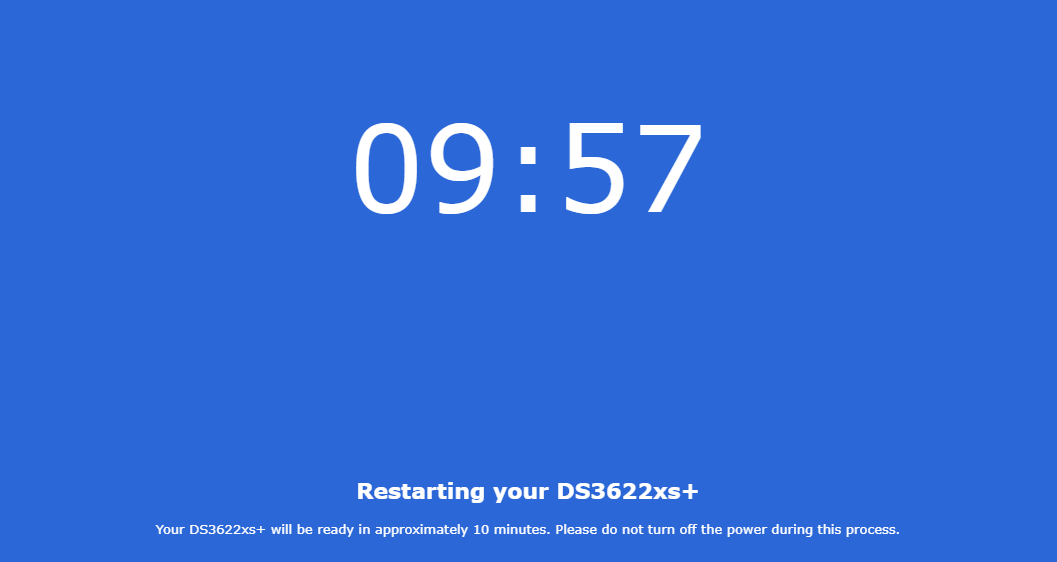

    12: You should soon see that it’s installing packages before being finally ready to “start”

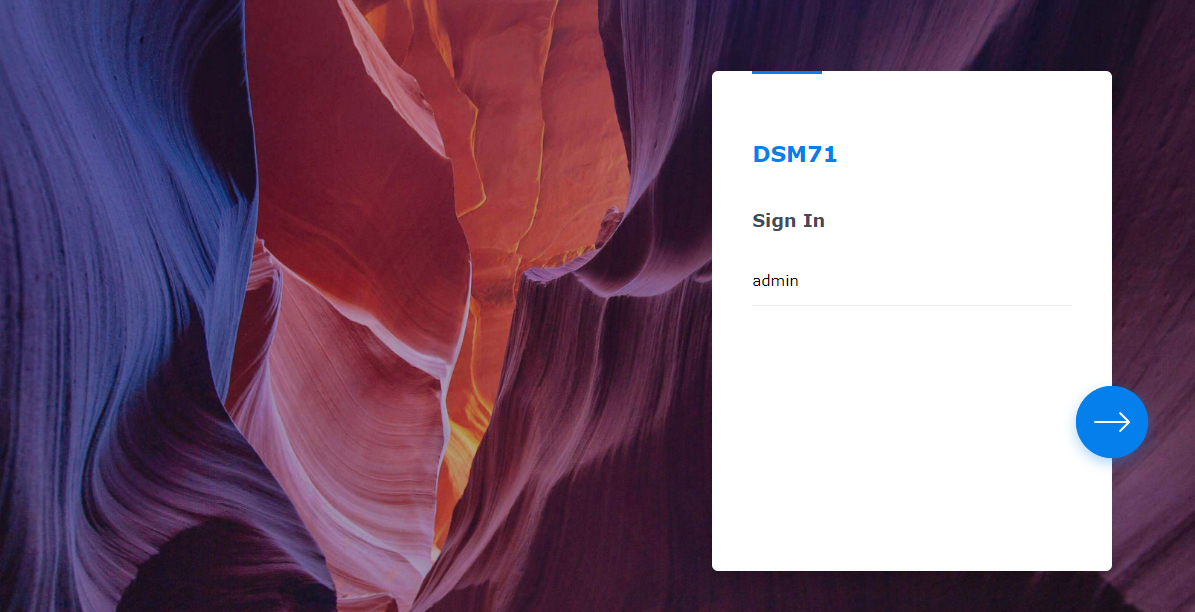

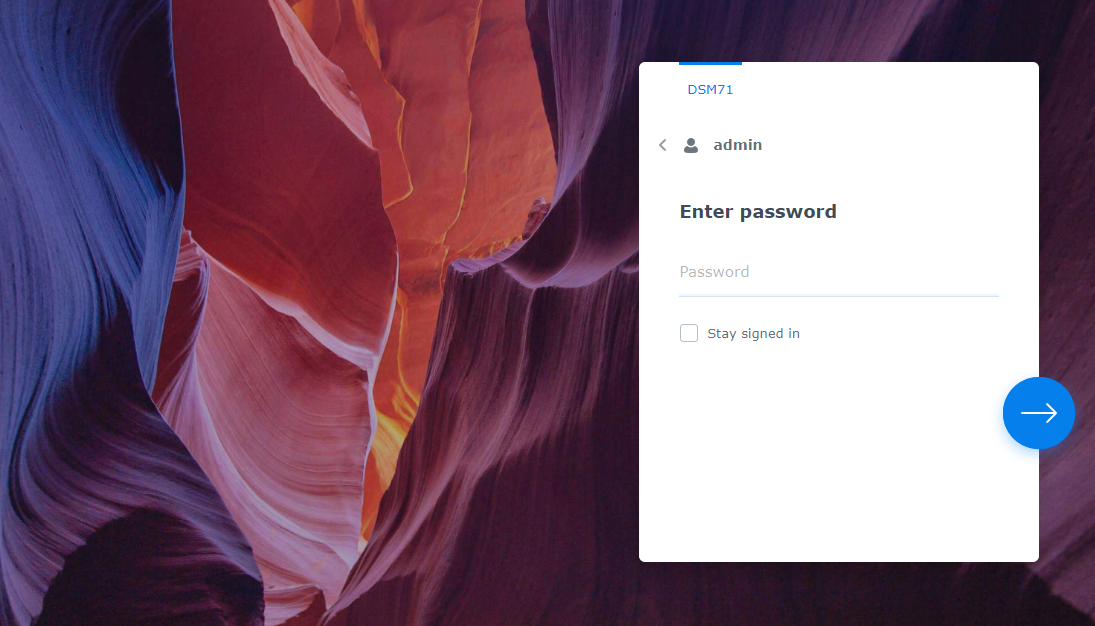

    13: If you are requested to login into the VM, do it as “admin” without password and configure it. Next configure your new NAS (Do not accept automatic updates !!!).

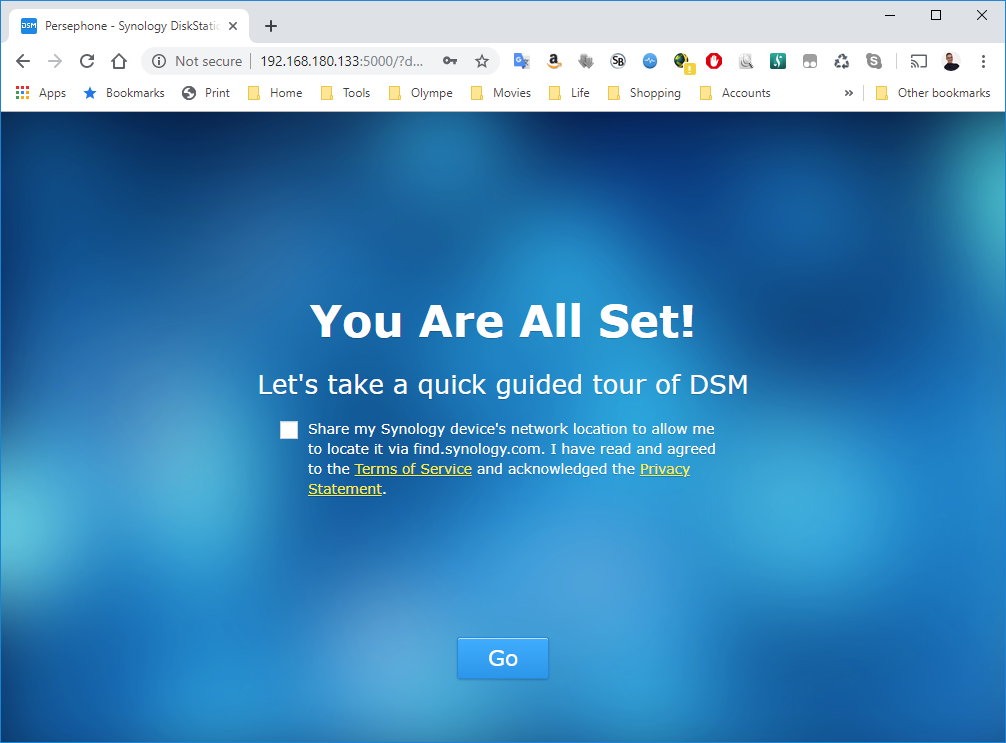

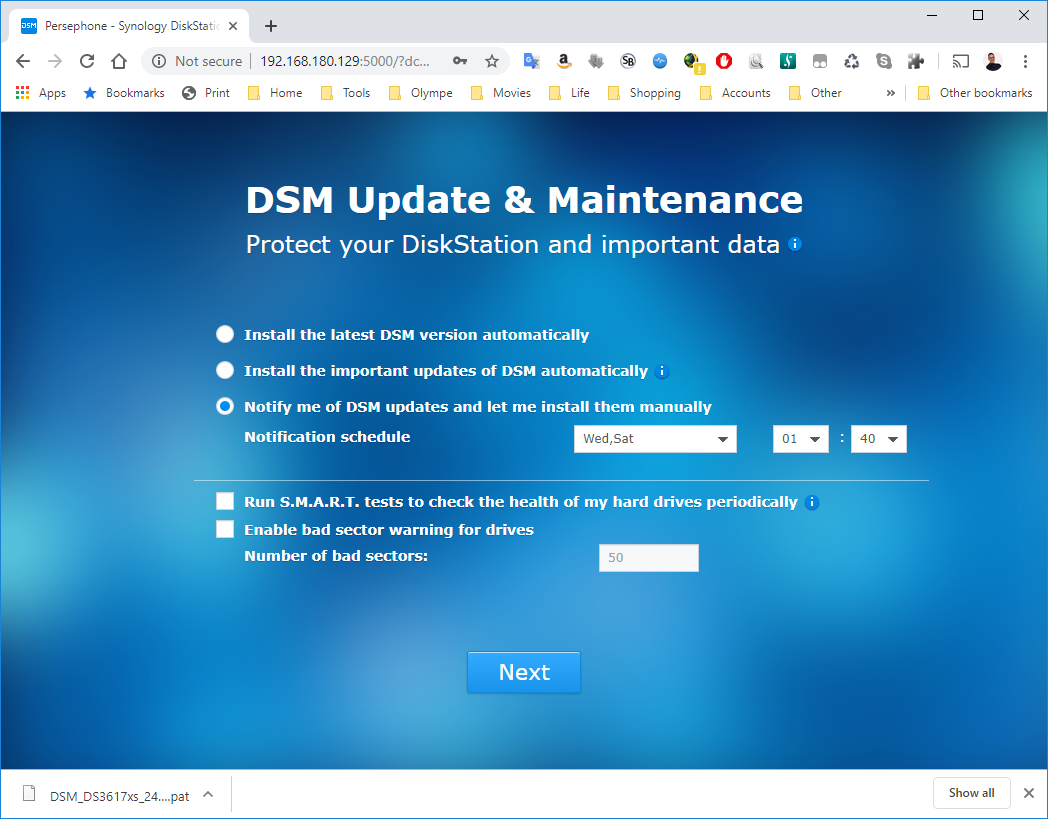

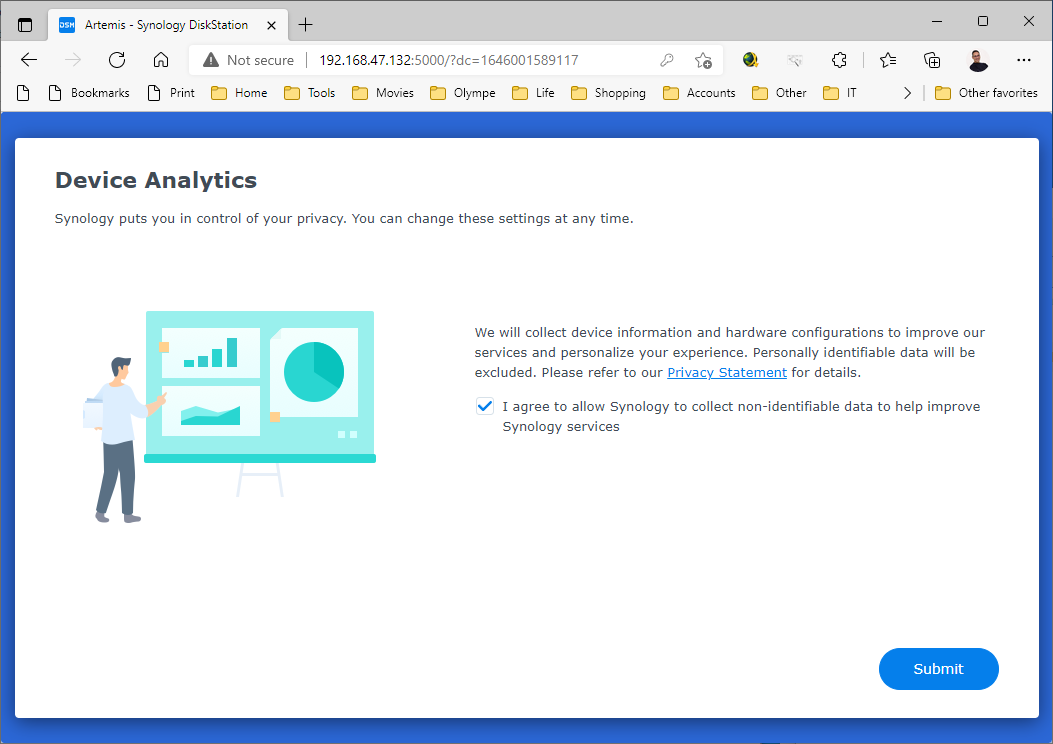

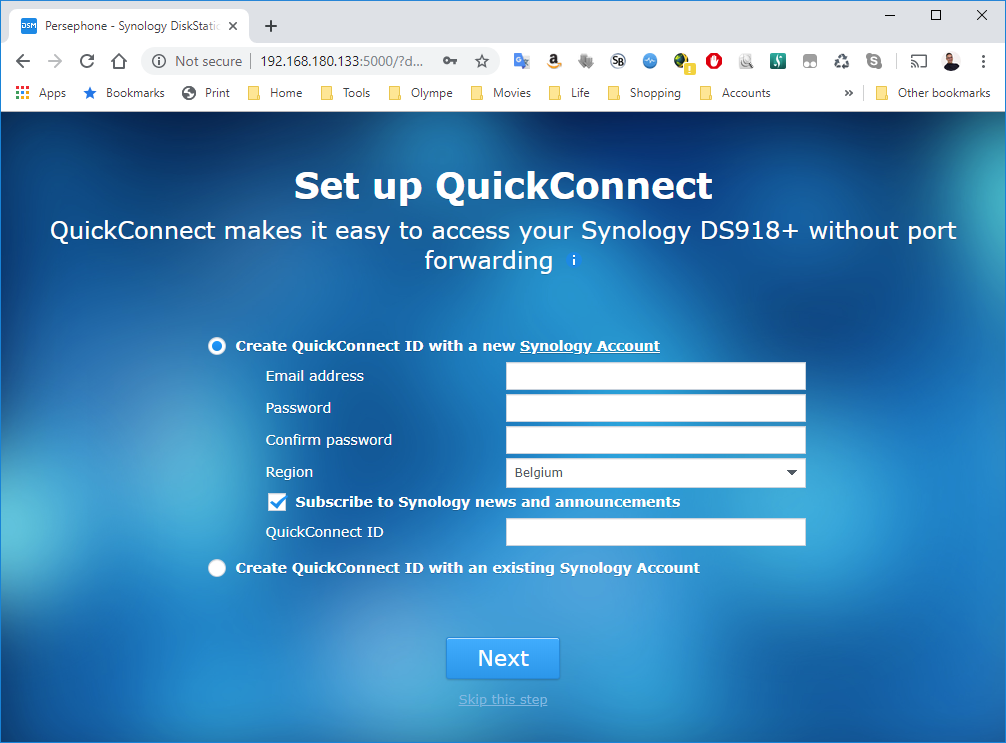

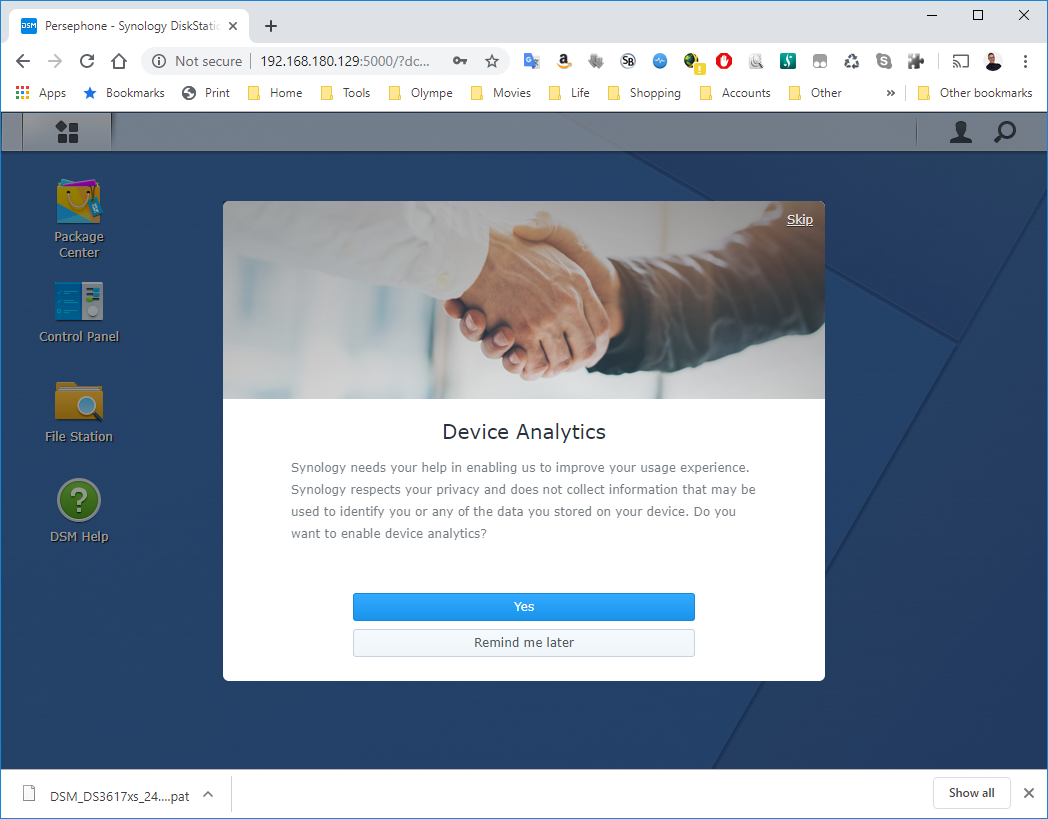

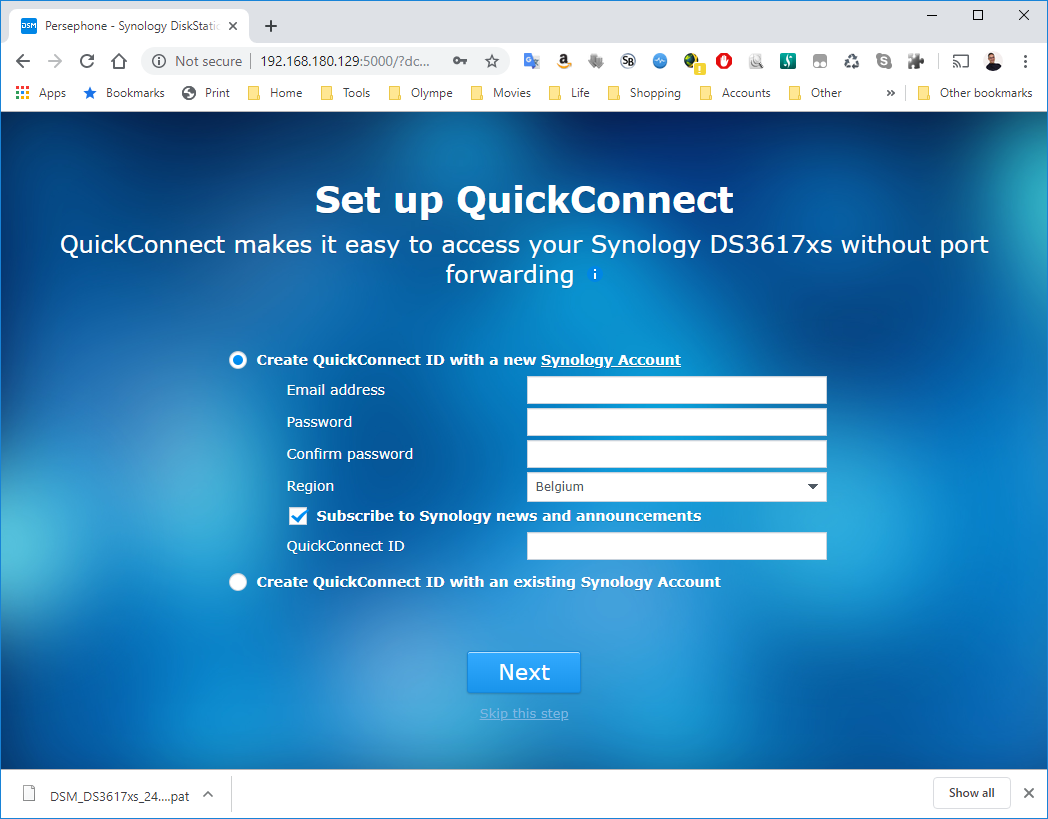

    I did skip the creation of Synology account and didn’t agree on Device Analytics or the display of this Nas in the Web Assistant.

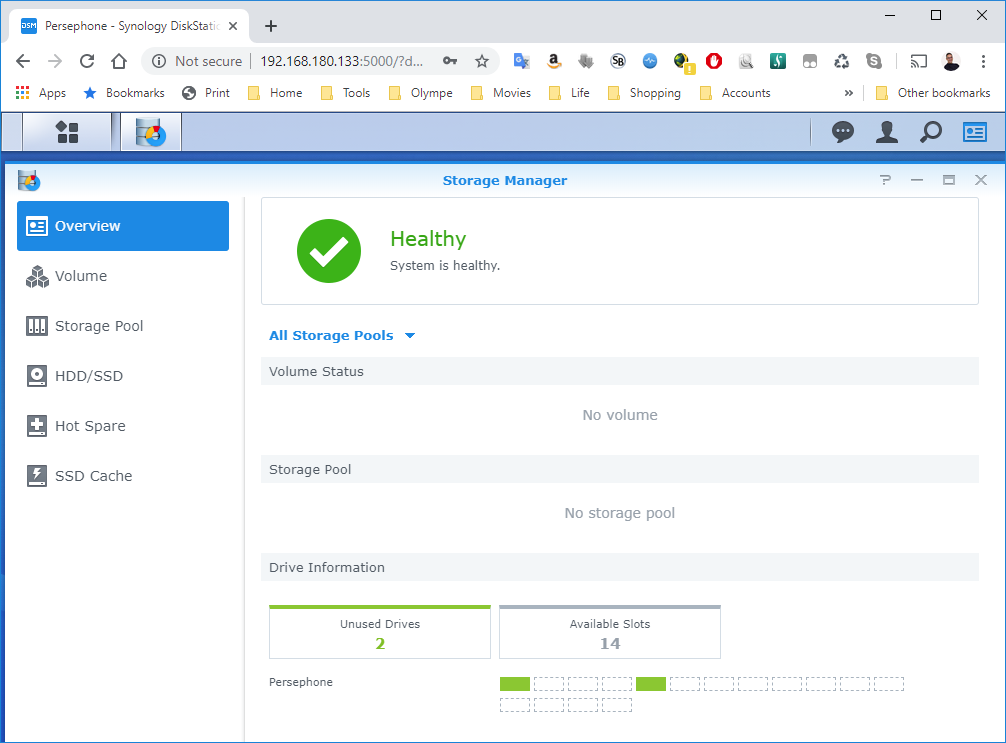

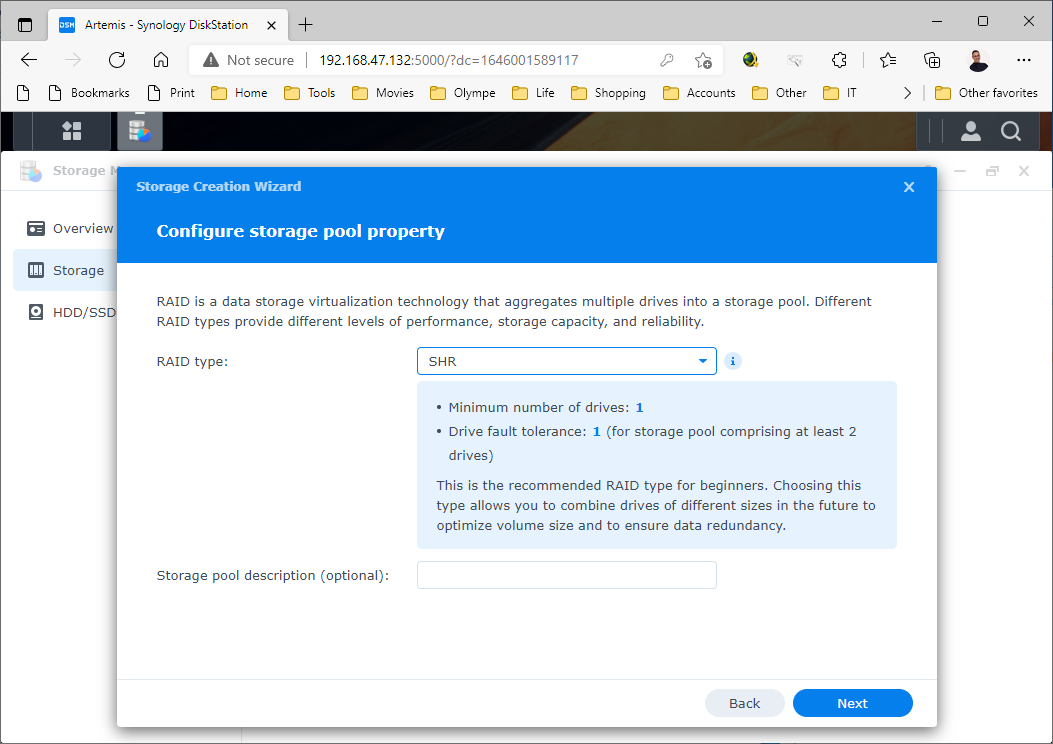

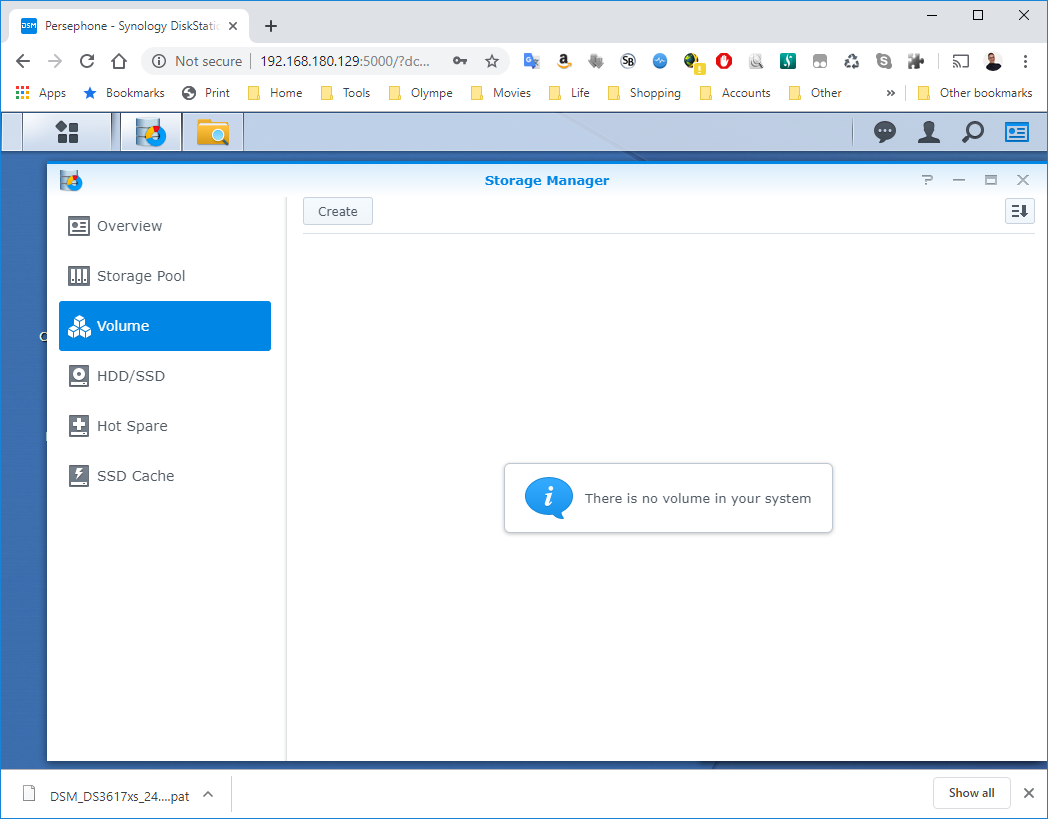

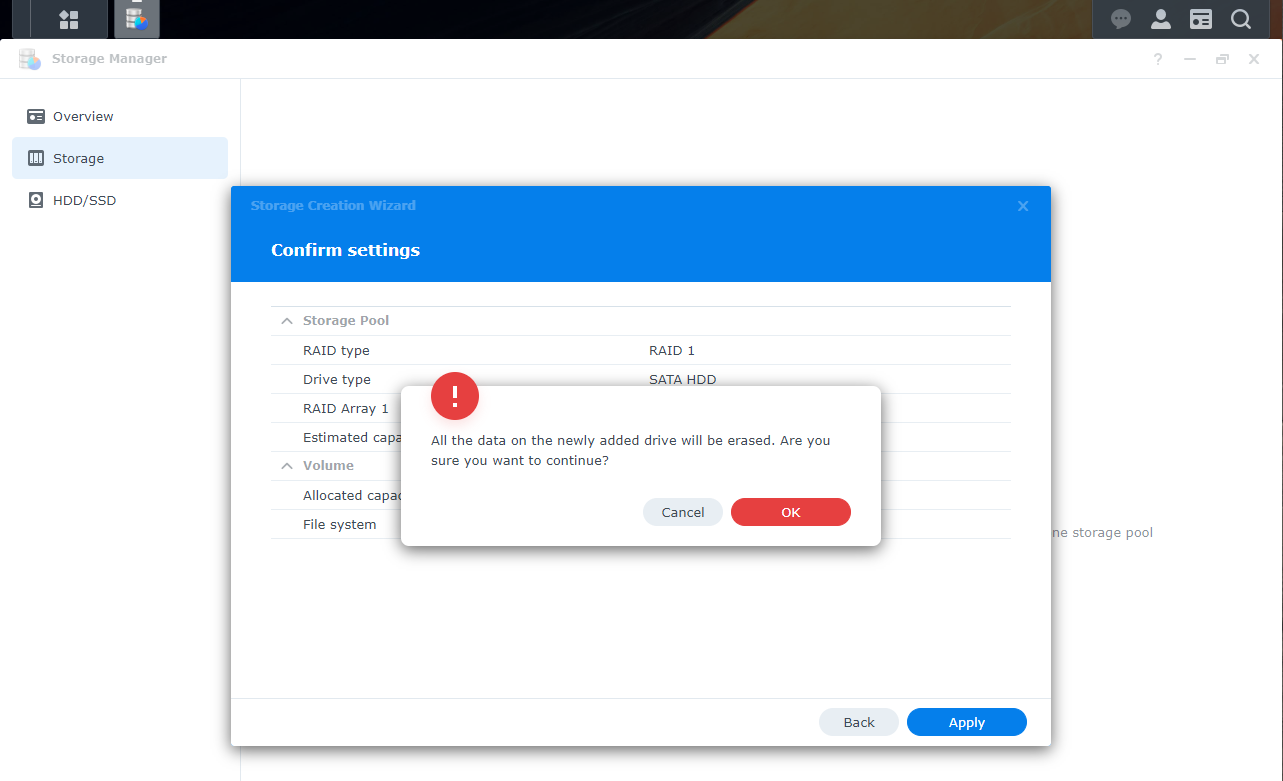

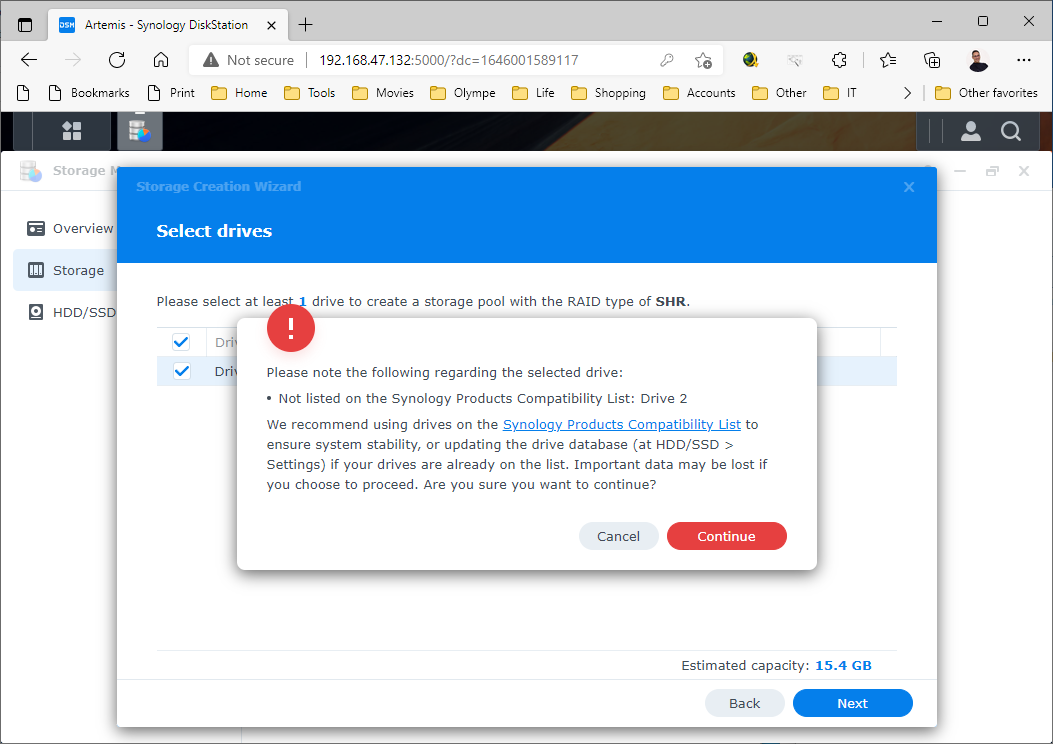

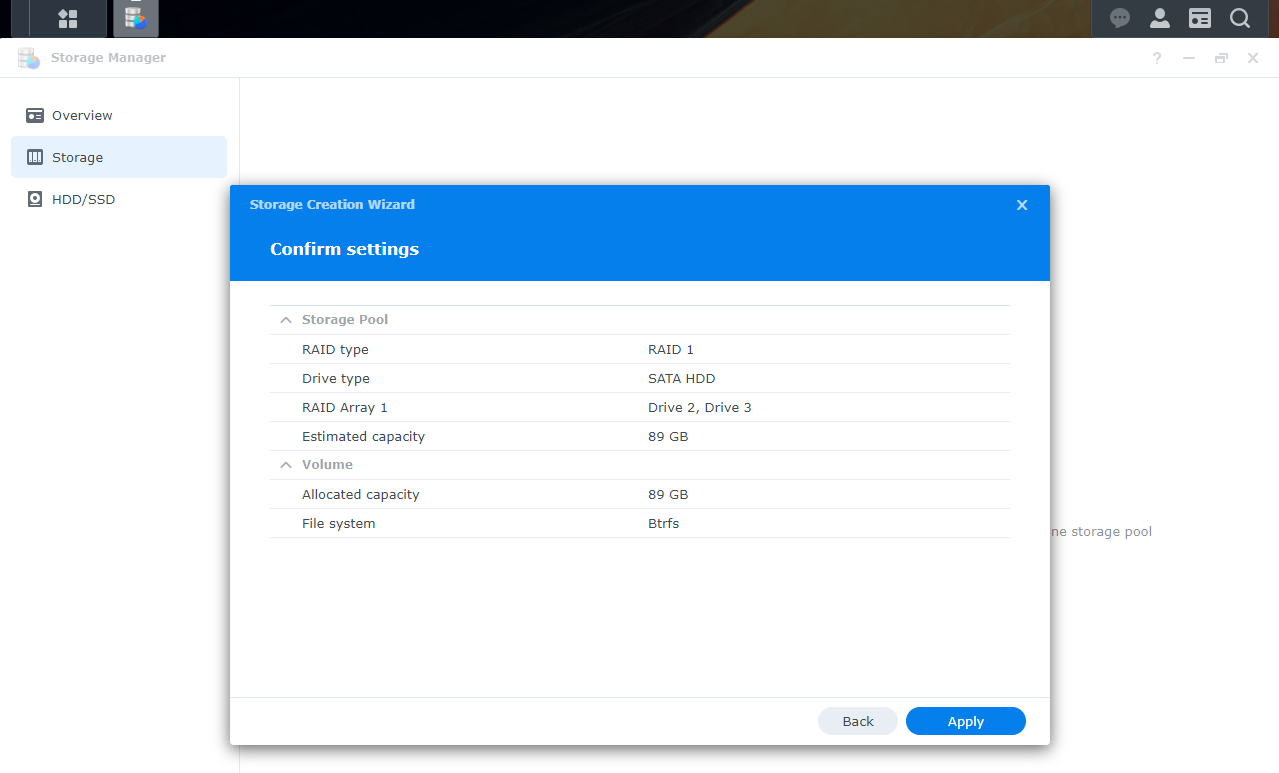

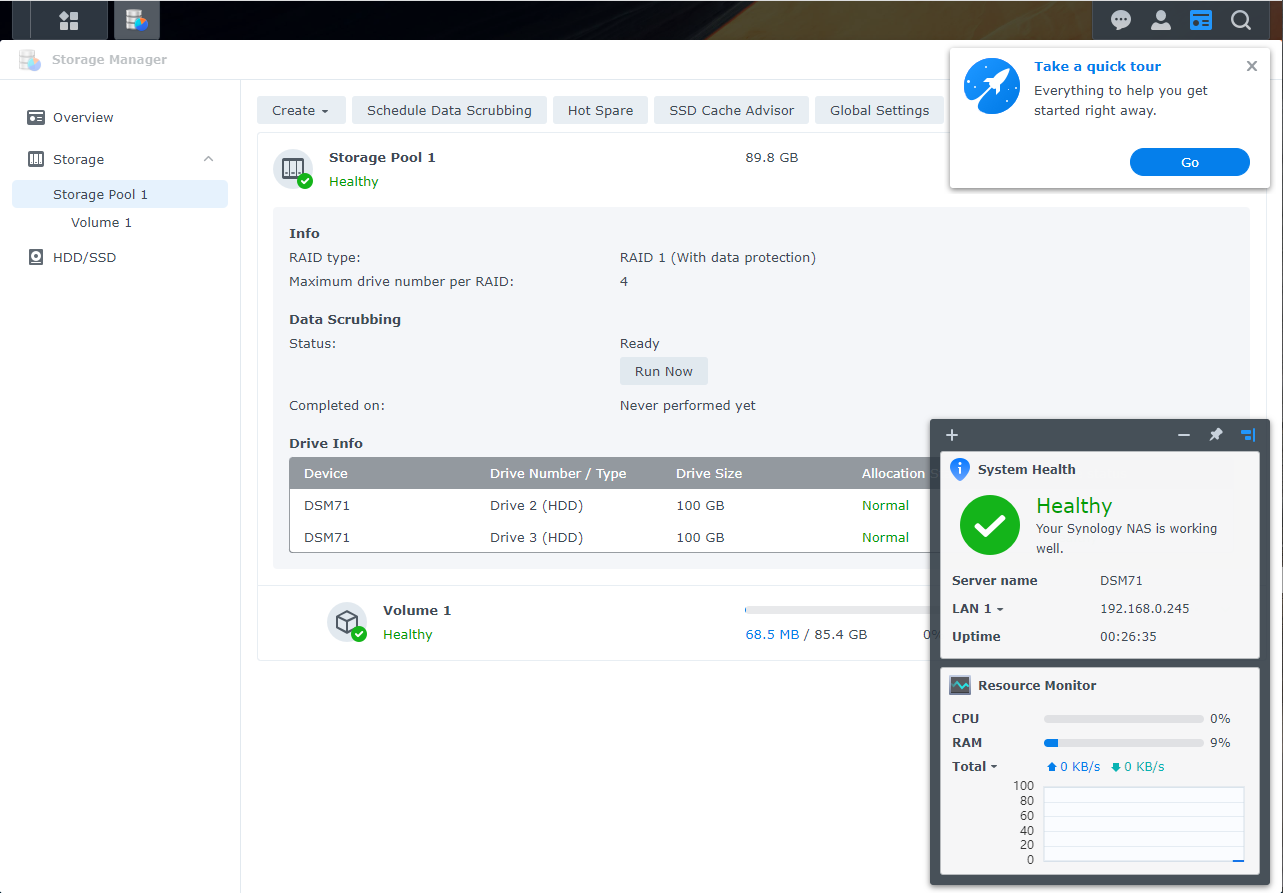

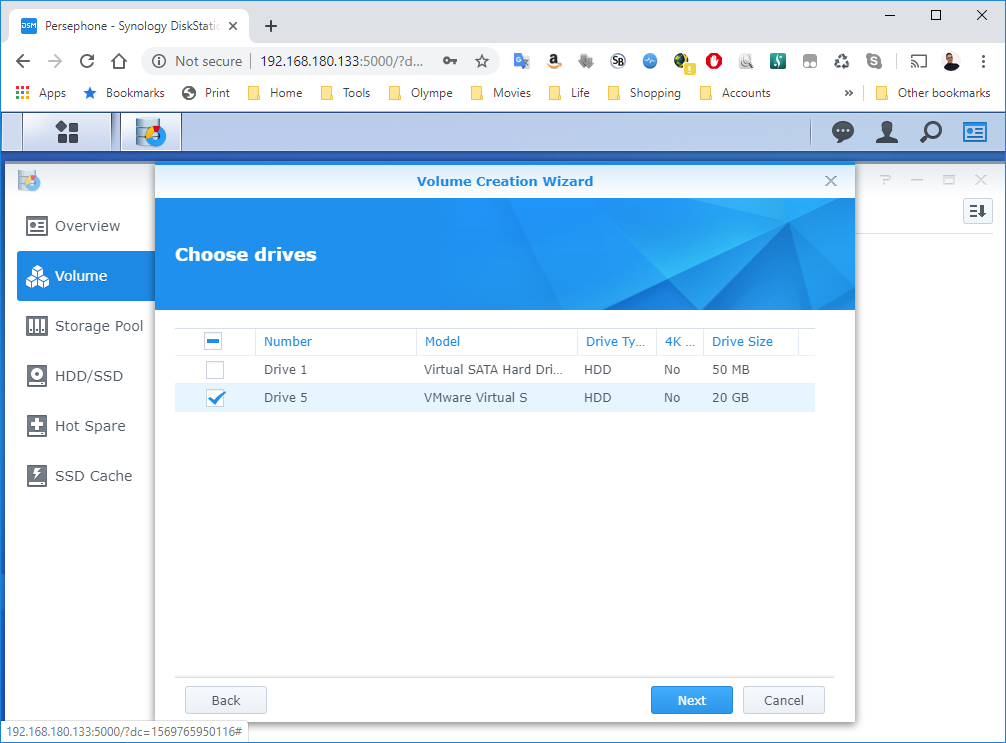

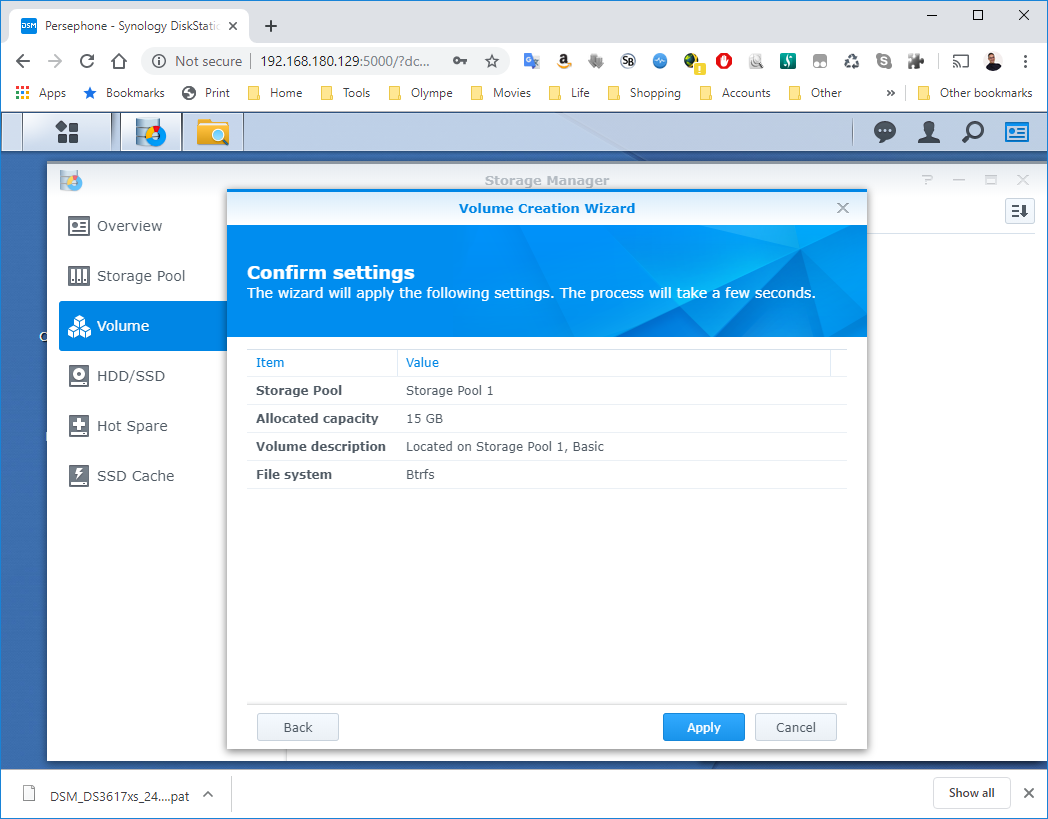

    14: It’s now time to use the Hard Disk 2 and 3 to create a first Volume. Open the DSM Main Menu and start the Storage Manager (Then, it’s just a next, next, next journey depending on which Disk Array you want).

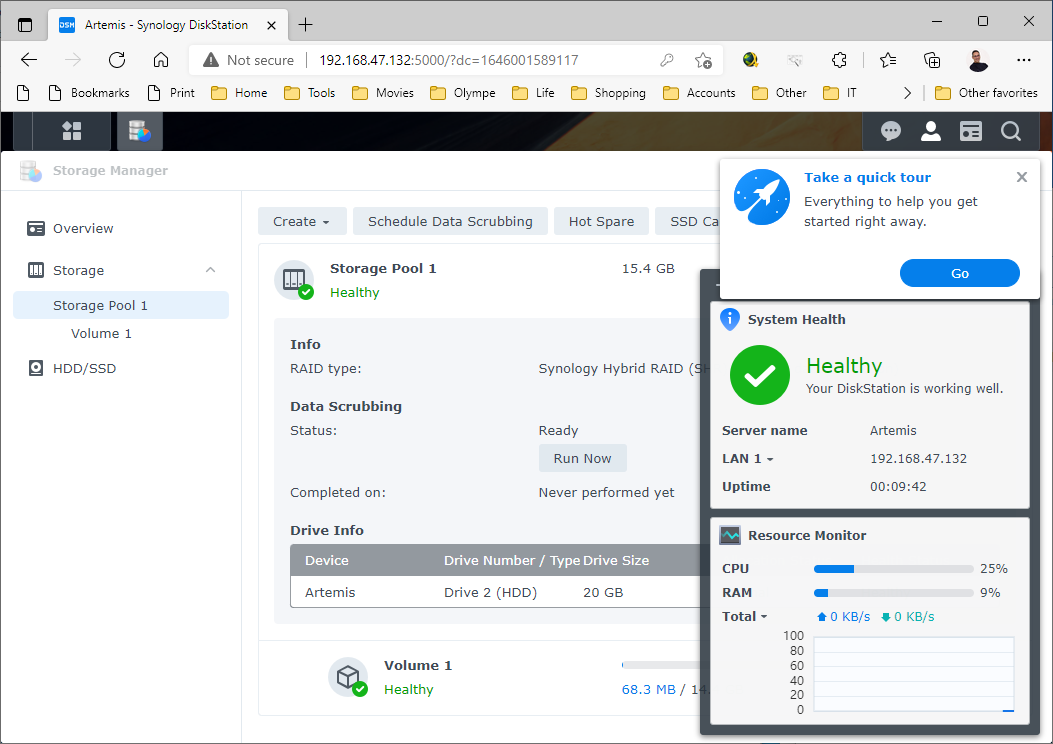

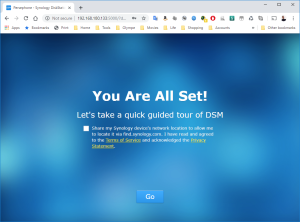

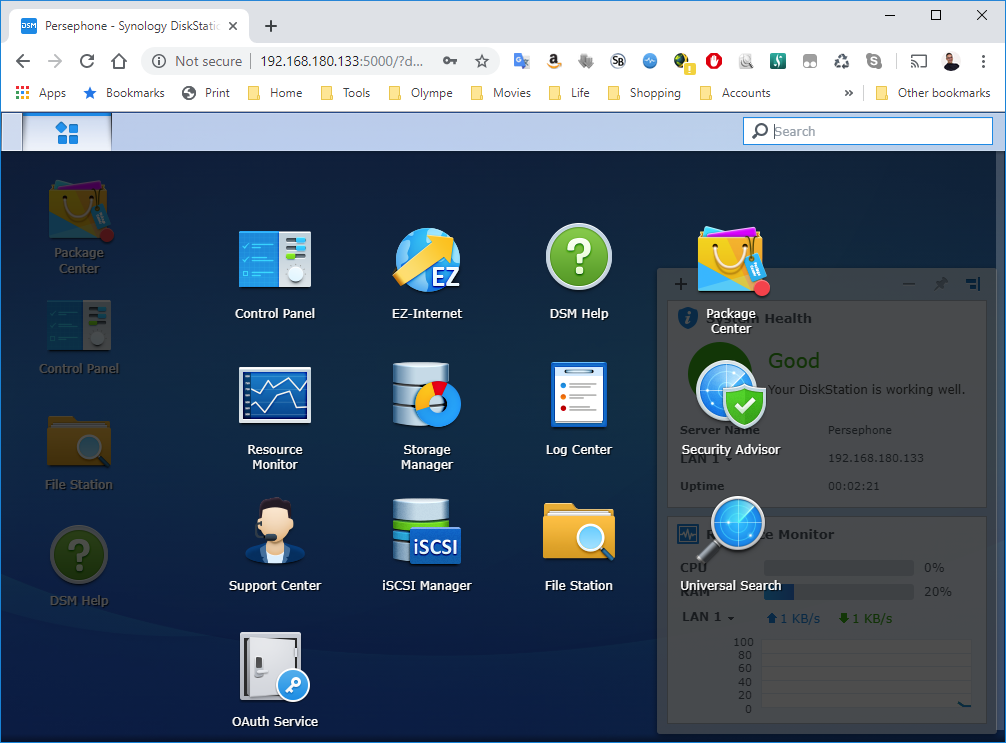

    15: Et voila, you have now a brand new DS3266xs+ with the DSM 7.1-42661 (DO NOT UPGRADE !!! The NAS would go into a “Recoverable” and I have no resolution for that)

    Loading

  • Setup DSM 7.0.1 in a Virtual Synology DS918+ using VMWare

    Here is a step by step “How-To create a Virtual Machine to emulate a DS918+ running DSM 7.0.1” using VMWare and a Loader from redpill

    THIS DOES NOT WORK ANYMORE (?): issue betwen the .pat file version and the loader => Try the DSM 7.1 with DS3622+ available here

    Click to Read More

    As for my previous packaging (DSM 6.2.2 on DS918+), I simply used various tutorials from internet to create a VM in VMWare 15 and exported this one as ovf

    1: Download and unzip this package, containing:

    • the configuration of the virtual machine (dsm.ovf, disk.vmdk and synoboot.vmdk),
    • the boot file for DS918+ (synoboot-falt.vmdk) and
    • the image of the DSM 7.0.1 for DS198+ (DSM_DS918+_42218.pat)

    2: Open VMWare Workstation. If you never configured the default location where you want to create your Virtual Machines, press CTRL-P to open the “Preferences” panel. There, set this default location (I am using E:\VMWare).

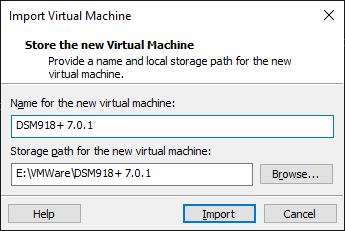

    3: Go next to “Windows Explorer”, in the folder where you have unzipped the package, and double click dsm.ovf. This is going to import the VM into VMWare. Type a name for the new virtual machine (I am using DSM918+ 7.0.1) and click “Import”.

    4: Here is the outcome to the importation. You can now click on “Power on this virtual machine”. If you want, you may also first increase the Memory, the Processors or the size of the Hard Disk 2 (Do not touch the Hard Disk 1 which contains the boot loader).

    5: 5 sec after starting the VM, the bootloader will run:


    6: Open the “Synology Assistant”, which is more efficient than the page http://find.synology.com to find your VM, and after 1 minute click on “Search”. If you didn’t wait long enough, you will see an Error message (In such a case, check that you have enabled the option “Allow compatibility with devices that do not support password encryption” in the preferences – via the gear icon in the top-right corner – and/or click Search “Again”. I never had to do this more than 3 times).

    7: Finally, the Assistant will find your VM. A webpage should automatically open (Otherwise, double-click on the VM). Approve the EULA and click Install.

    8: Click next on Browse to select the image of the DSM 7.0.1 for DS918+ and Select the file “DSM_DS918+_42218.pat” in the folder where you unzipped the package downloaded here previously.

    9: Finally, click on “Next” and confirm that the installation can override the disk… it’s the virtual SCSI Hard Disk member of the VM. No worry 😉

    10: The installation will take a few minutes

    11: Once the installation complete, you will see in the VMWare Workstation that the VM is rebooting. On the installation page, you see a countdown.

    12: You should soon see that it’s installing packages before being finally ready to “start”

    13: You will now be able to login into the VM and configure it.

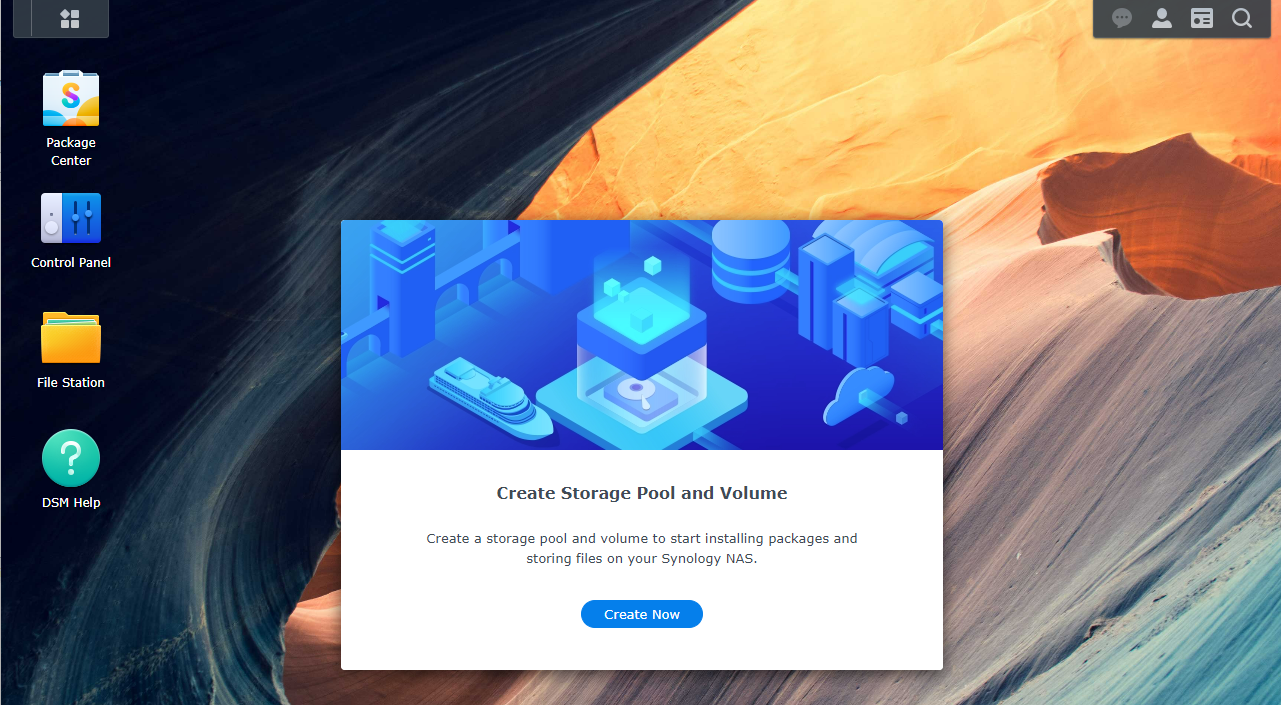

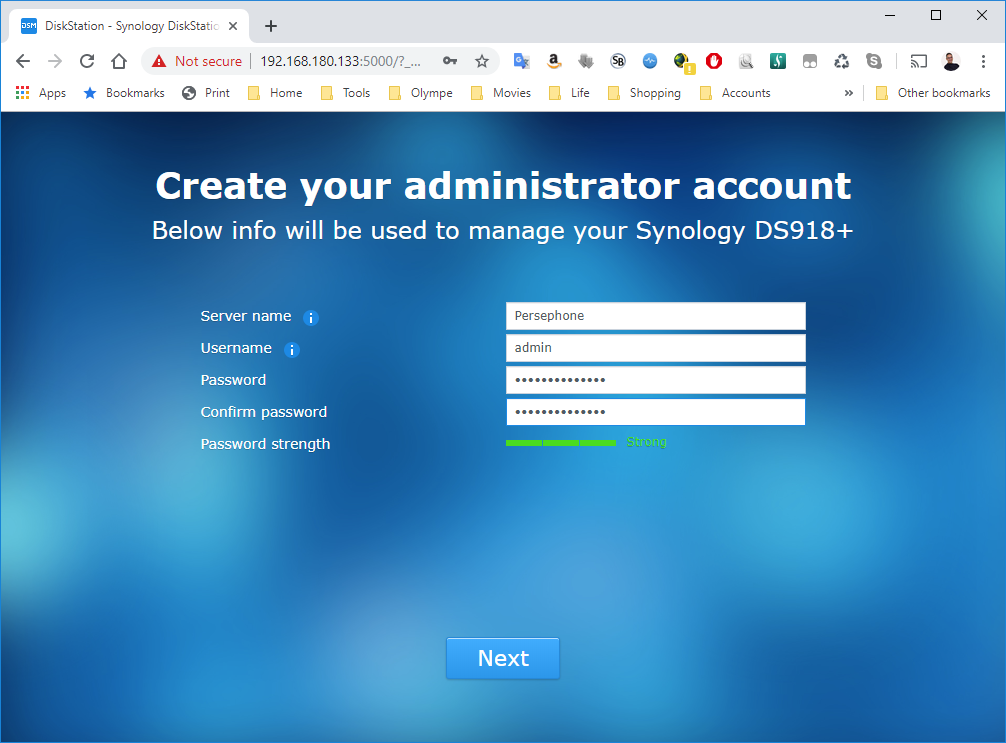

    14: It’s now time to use the Hard Disk 2 to create a first Volume. Open the DSM Main Menu and start the Storage Manager.

    15: Et voila, you have now a brand new DS918+ with the DSM 7.0.1-43 Update 2.



    Loading

  • Customize Mac & Serial of Xpenology images to run Synology in VMWare

    Here are:

    • all my Xpenology packages used to emulate a Synology with VMWare and
    • how to customize their Mac Address as well as their Serial Number

    Click to Read More

    The DSM images available in the packages above come from these Synology’s archives.

    You can find here or here how to create a Virtual Synology with theses packages (Notice I have fine-tuned those, among others to put the disks in the right boot order for the DS3617xs).



    Before importing a package in VMWare, you can update its Mac Address and its Serial to make them unique in your network (E.g.: if you duplicates the images). For that purpose, you need OSFMount, a tool able to update (read and write) the content of .img files.

    Run OSFMount and open the disk image file “synoboot.img” (Do not mount it as Ram Drive):

    “Select All” the partitions as virtual  disks and uncheck the flag “Read-only drive”:

    Once opened, double-click on the first drive in the list to open it. It contains the settings to be customized in the file drive:\grub\grub.cfg. Edit that file to change the Serial (set sn) and the MAC address (set mac1):

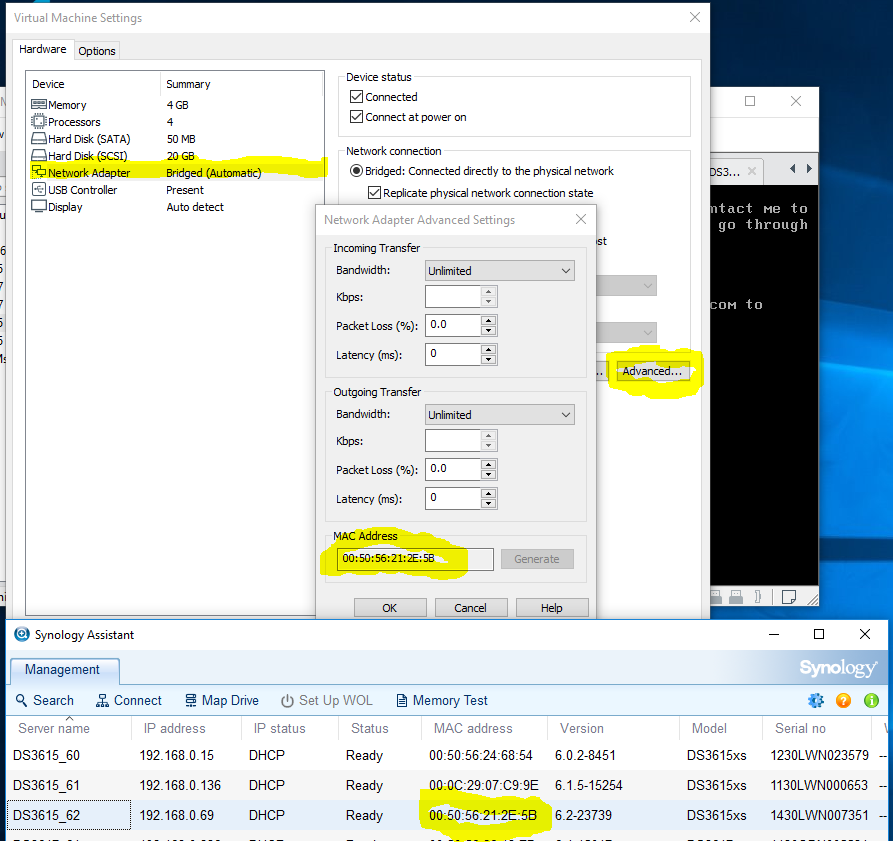

    A new MAC address can be generated using VMWare; via a Network Adapter > Advanced > Generate. Click on the button Generate a few times and copy the value in the file above (removing the various semicolons).

    A new Serial can be generated on this site.

    Once done with the edition, “Dismount All” the drives in OSFMount. You can now import the virtual machines in VMWare.

    Et voilà.

    Loading

  • Use a Bridged Network for a Virtual Synology using VMWare

    Within the Virtual “Synologies” created as described here and here, I was using NAT for the Network Connection. To use a Bridged Network Connection is not easy, but can work.

    Click to Read More

    I wanted to reconfigure all my Virtual Synology to use NAT instead of a Bridged Network Connection.

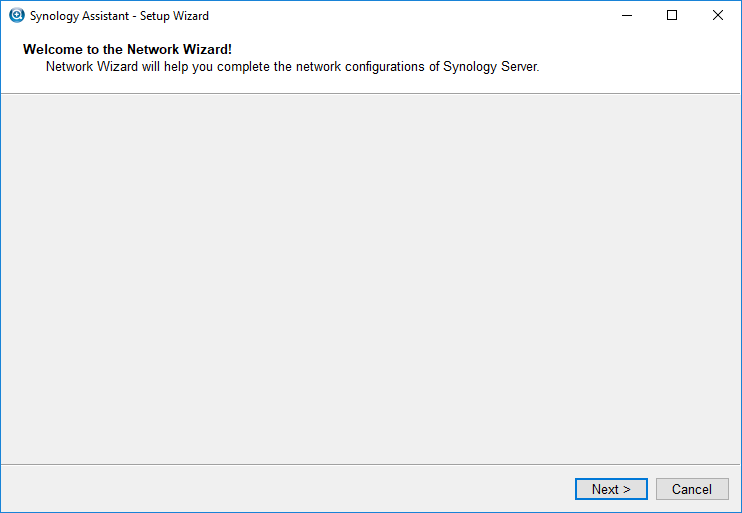

    But once this is done, the Virtual Synology does not appear anymore as configured in the Synology Assistant (which opens the Network Wizard). And trying to reach it via a browser, on its admin port,  results in connection timeout.

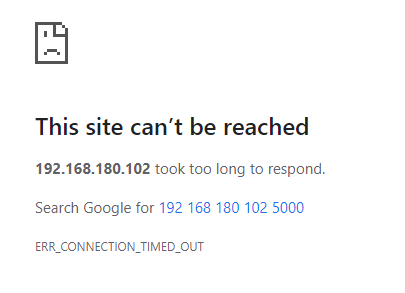

    If I wait for several minutes (sometimes more than 10′) and try again and again to reach my various Virtual Synology on its admin port, I finally get them.

    I don’t know yet why this is not immediate ?!… I seems to be an issue with the Bridged Connection of VMWare under Windows 10.



    I tried to clean the arp table (Run as Command Prompt as Administrator on Windows and type: arp -d *). But without success. And the problem comes back not only each time the VM is restarted, but also sometimes while running since a while…

    I did check that the Mac Address of each Synology (displayed by the Synology Assistant) was correctly defined in VMWare:

    See here how to customize the MAC Address of a Synology image.

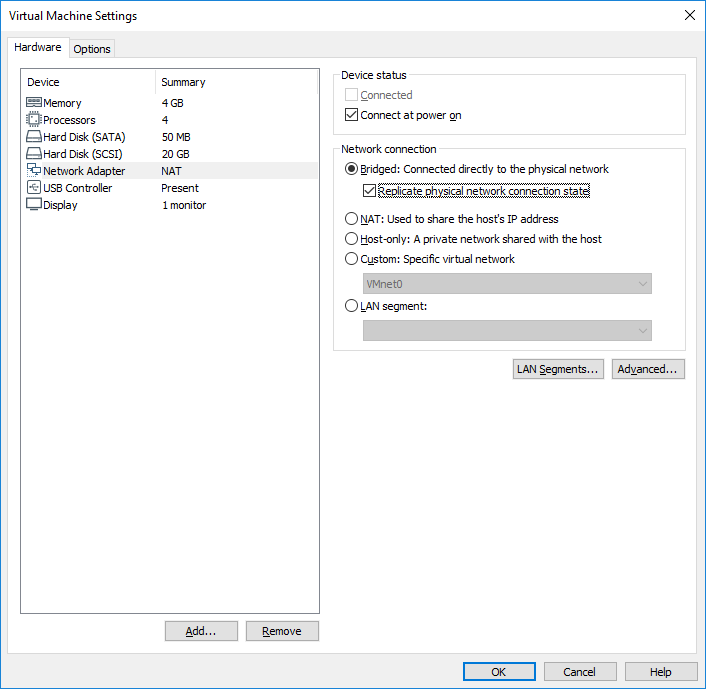

    I also checked that the Bridged Connections were correctly configured in VMWare as suggested here:

    1. Be sure your vm is stopped.
    2. Run the VMWare Virtual Network Editor (click Start and search for Virtual Network Editor)
    3. Run it as administrator (or click the button at the bottom of the screen that says, “change settings.” VMNet0 will dislpay when running as administrator. Otherwise, it will not be visible)
    4. Highlight VMNet0 and click on “Automatic Settings”
    5. You will see a list of adapters. De-select all but the physical network card. (When I set up up with player, I had selected only the 1. After install of workstation, all of the items were checked.)
    6. Click “OK”
    7. Click “Ok”
    8. Start the VM and test.



    I tried next various tips from here and here, such as stopping and restarting the vmnetbridge. The best results are achieved by deleting all the virtual adapters in the VMWare Virtual Network Editor, creating a new one bridged to a specific Ethernet Adapter and finally using that one as a “Custom: Specific virtual network” as Network Adapter for each VM.

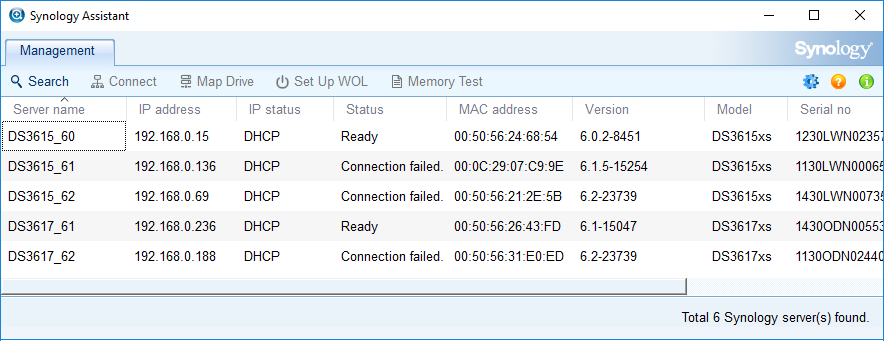

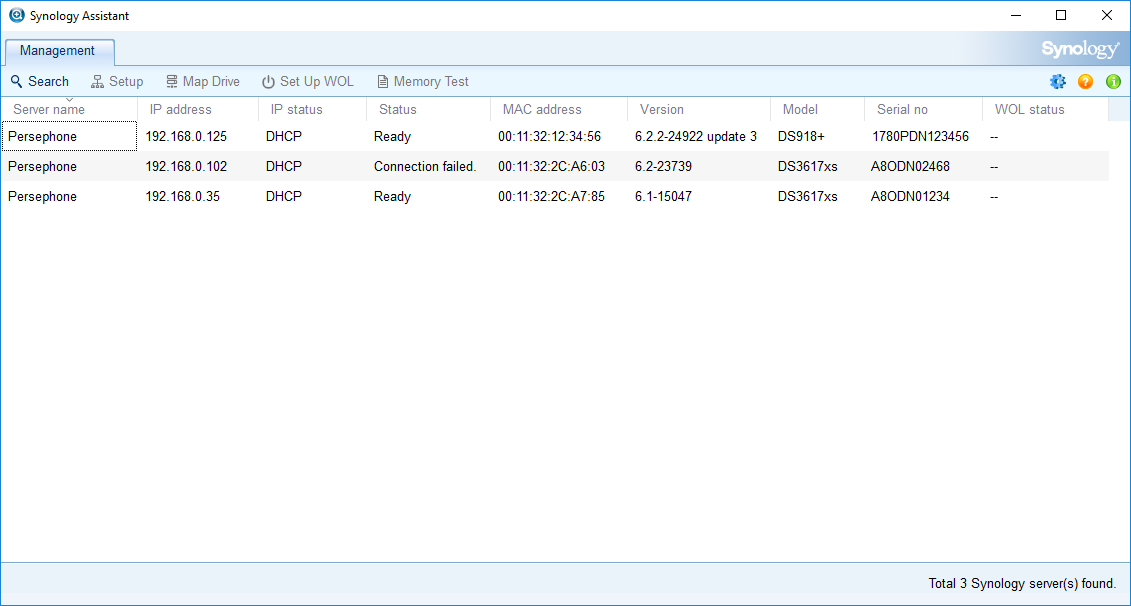

    But I still have randomly some VM with a “Connection Failed” status in the Synology Assistant. If I found how to definitively fix this issue, I will post it here.

    Loading

  • Setup DSM 6.2.2 in a Virtual Synology DS3617xs using VMWare

    Here is a step by step “How-To create a Virtual Machine to emulate a DS3617xs running DSM 6.2.2” using VMWare and Xpenology

    Click to Read More

    Xpenology is a bootloader for Synology’s operating system which is called DSM. It can be used to setup DSM on a PC or in a Virtual Machine like VirtualBox or VMWare.

    I am using VMWare 15. But any version from VMWare 11 should work.



    1: Download and unzip this package, containing:

    • the configuration of the virtual machine (dsm.ovf, dsm.vmx, disk.vmdk and synoboot.vmdk),
    • the xpenology boot file for DS3617xs (synoboot.img) and
    • the image of the DSM 6.2.2 for DS3617xs (DSM_DS3617xs_23739.pat)

    Notice that only the image “23739” is compatible with the boot file (Jun’s loader 1.03b).

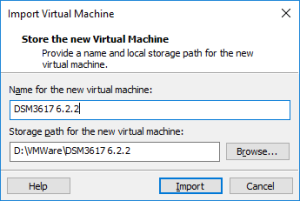

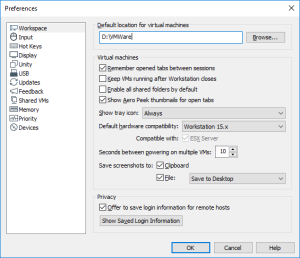

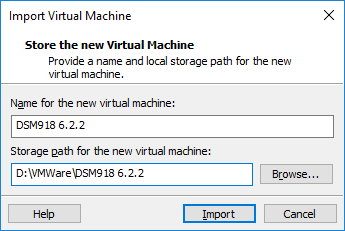

    2: Open VMWare Workstation. If you never configured the default location where you want to create your Virtual Machines, press CTRL-P to open the “Preferences” panel. There, set this default location (I am using D:\VMWare).

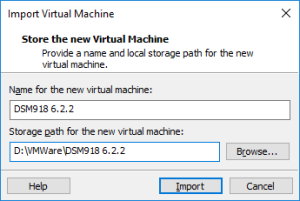

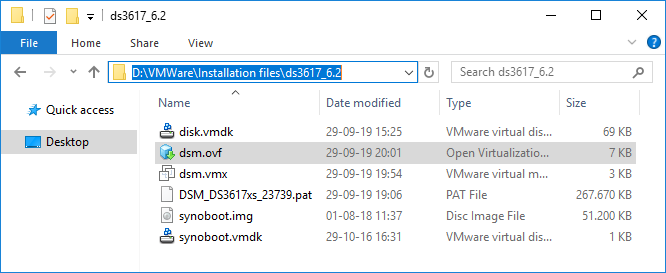

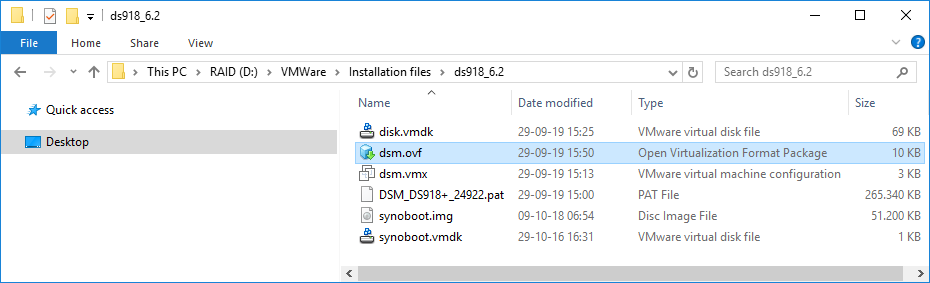

    3: Go next to “Windows Explorer”, in the folder where you have unzipped the package, and double click dsm.ovf. This is going to import the VM into VMWare. Type a name for the new virtual machine (I am using DSM3617 6.2.2) and click “Import”.

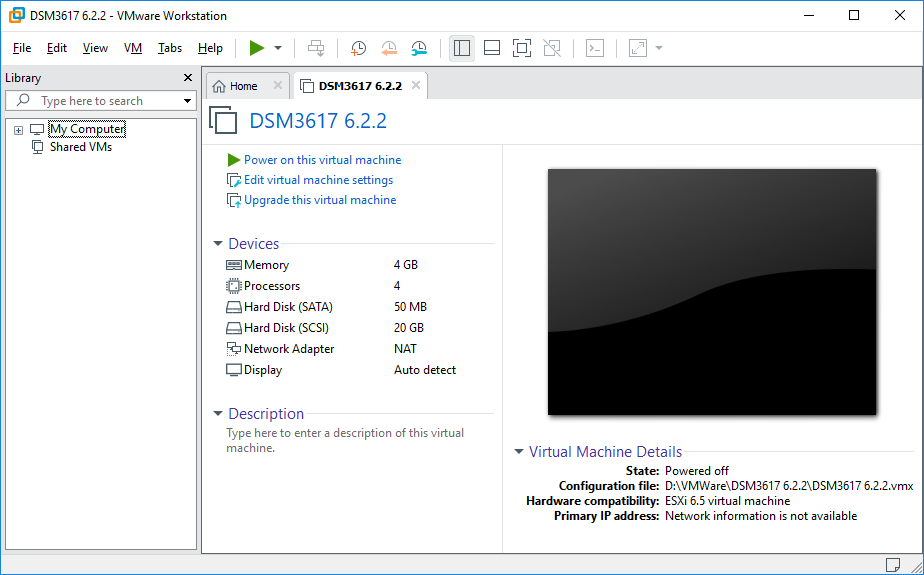

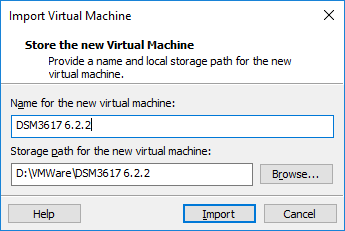

    4: Here is the outcome to the importation. You can now click on “Power on this virtual machine”. But first, be ready to type F2 in the console to enter the Bios. You will have only 2 seconds to do so!

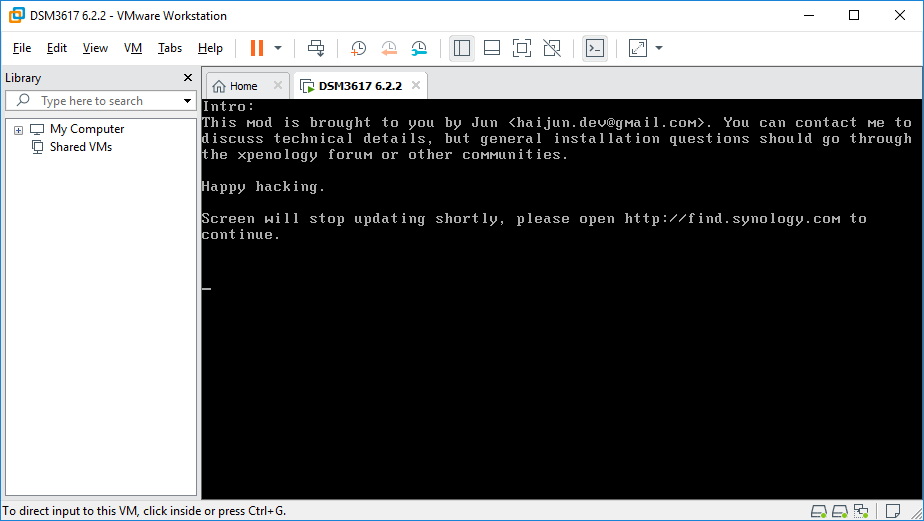

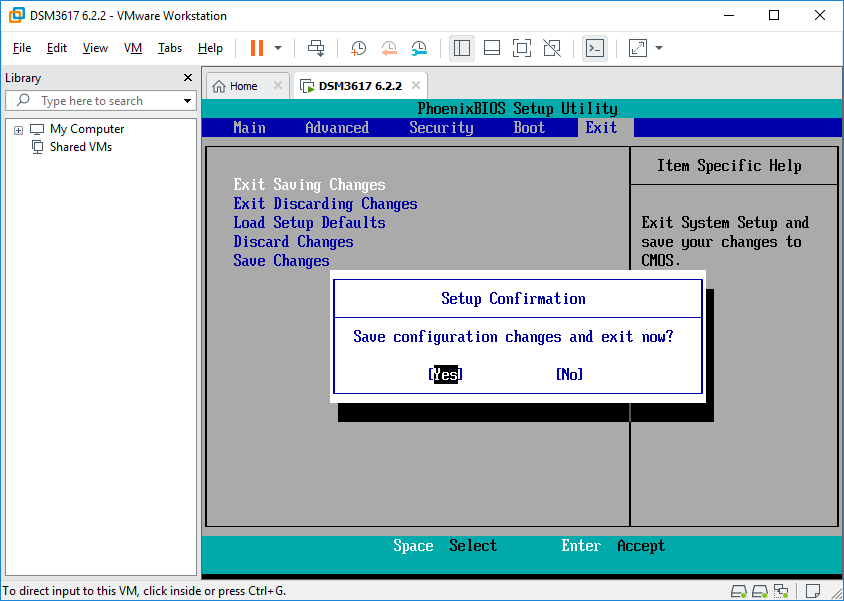

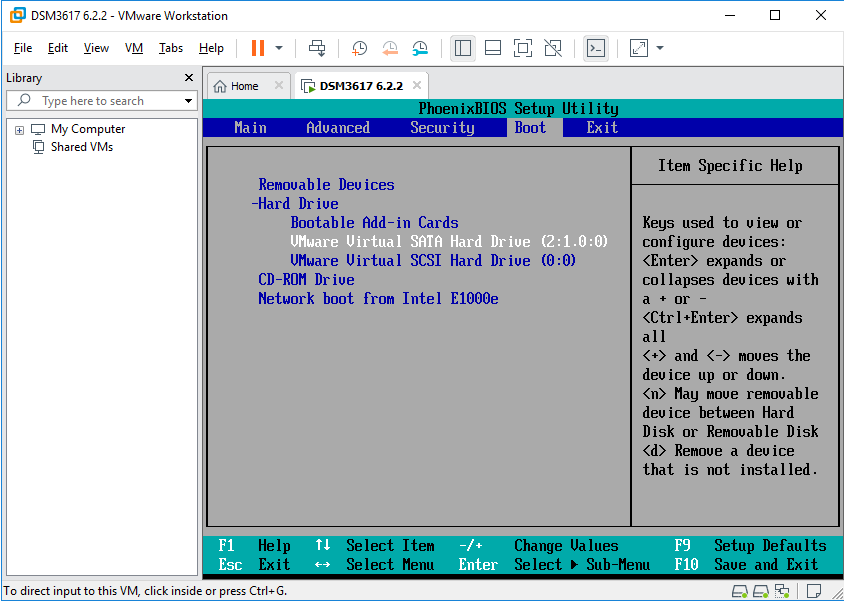

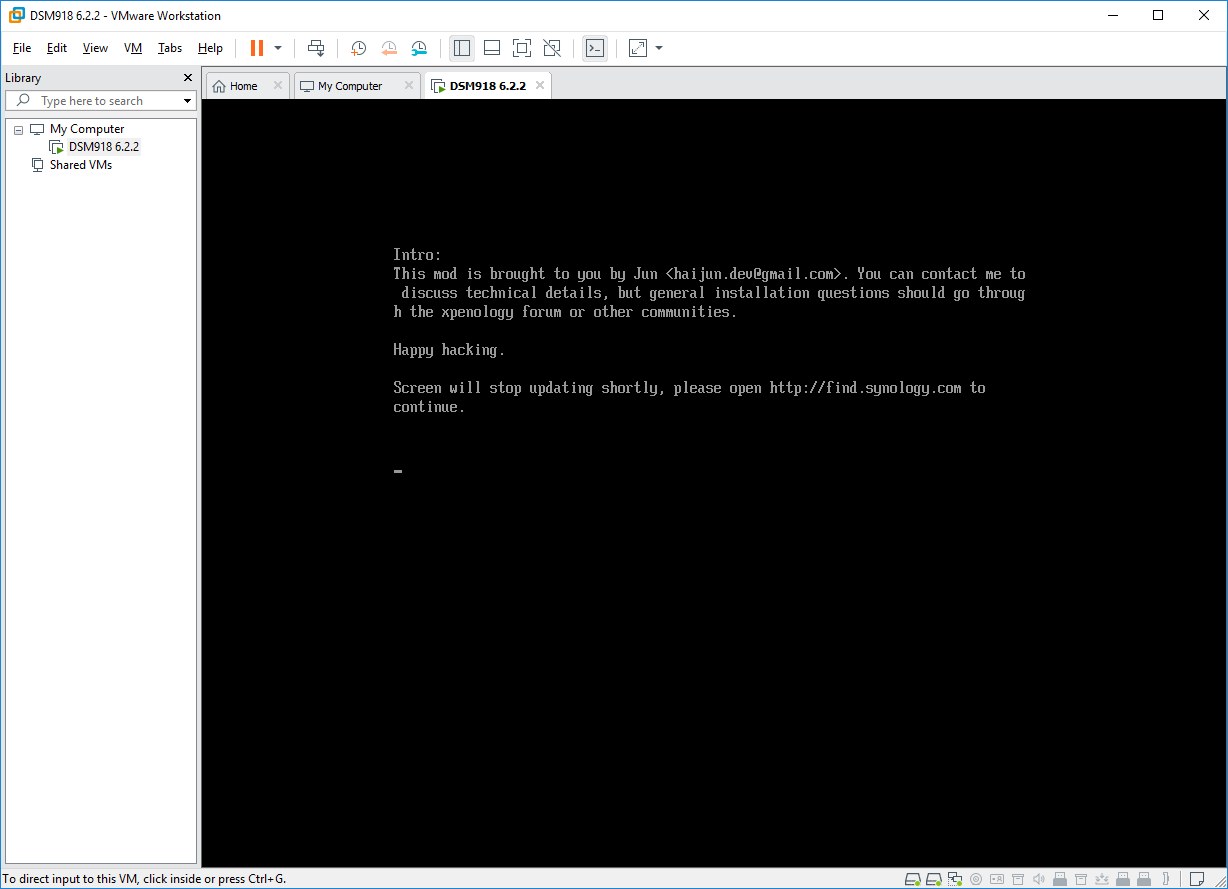

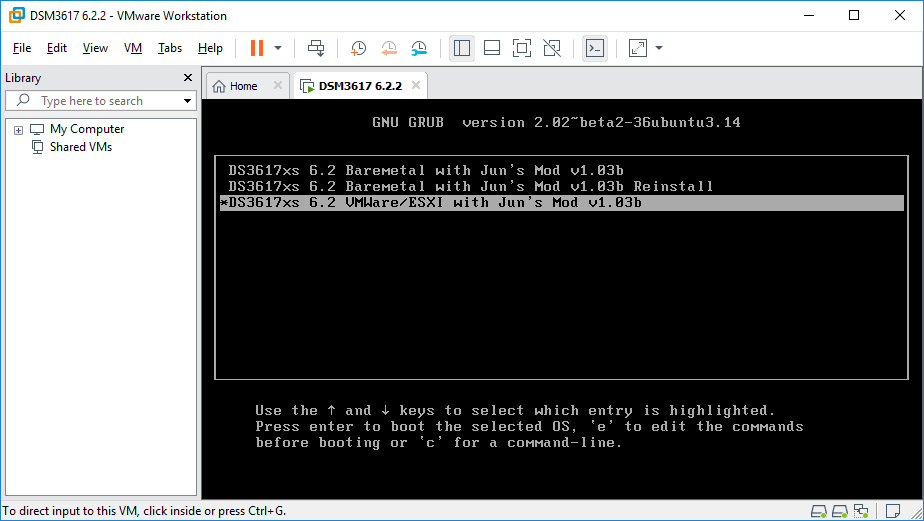

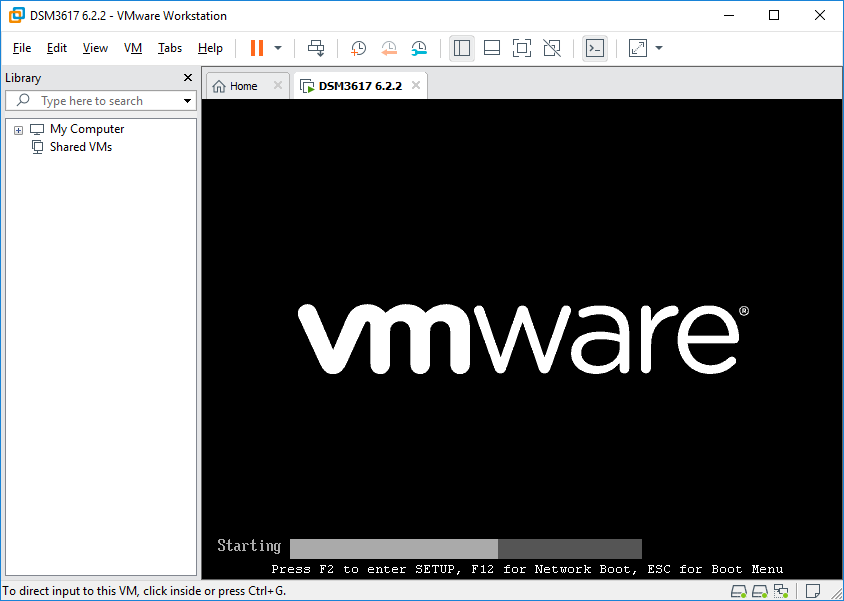

    5: As soon as you have run the VM, click into it to capture the keyboard, and press “F2”. If you missed it, the VM will try to boot from the network. In such a case restart the VM and try again! Once in the Bios, go to the Boot tab and swap the SATA Hard Disk with  the SCSI Hard disk. The VM has indeed to boot with the SATA disk containing the boot loader. Finally, Save and Exit the Bios. The VM will reboot.

    6: Again, quickly click into it to capture the keyboard and press the “down arrow” to select the loader for “VMWARE/ESXI” (attention, you don’t have a lot of time to start the selection). Press next Enter and the boot will load. The VM is ready to install the DSM image.

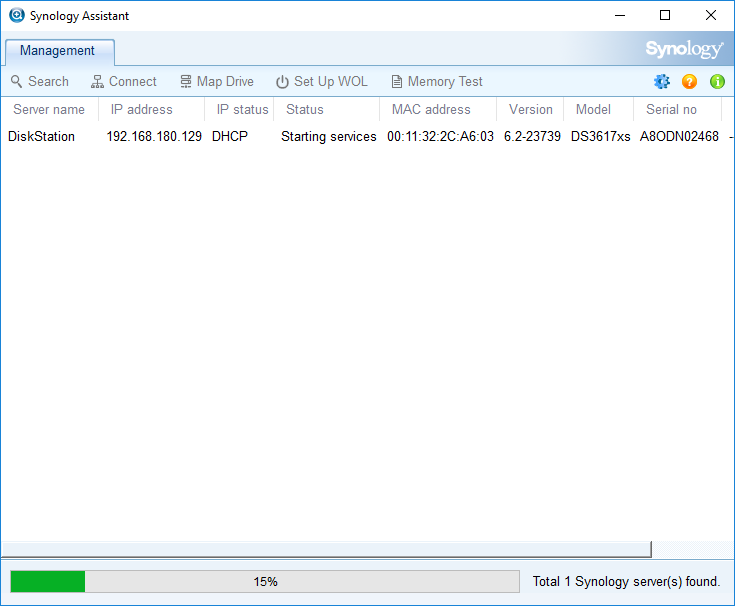

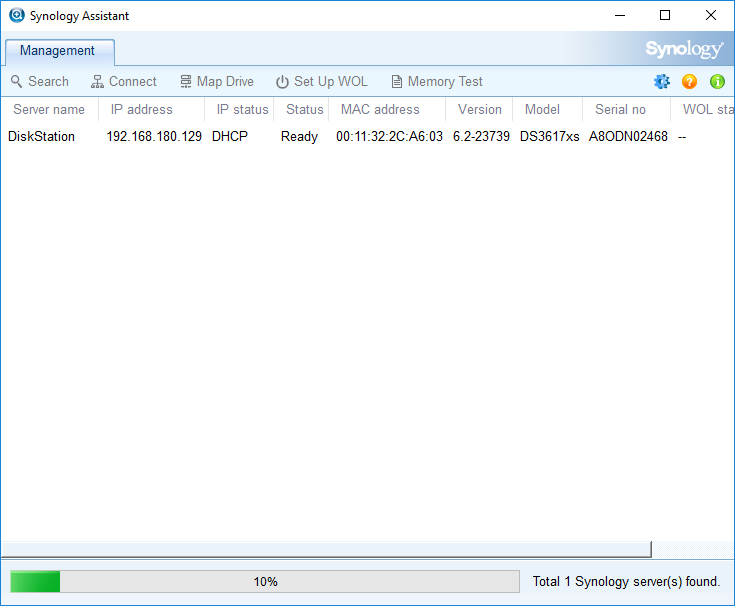

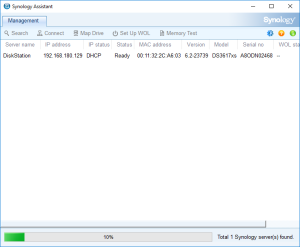

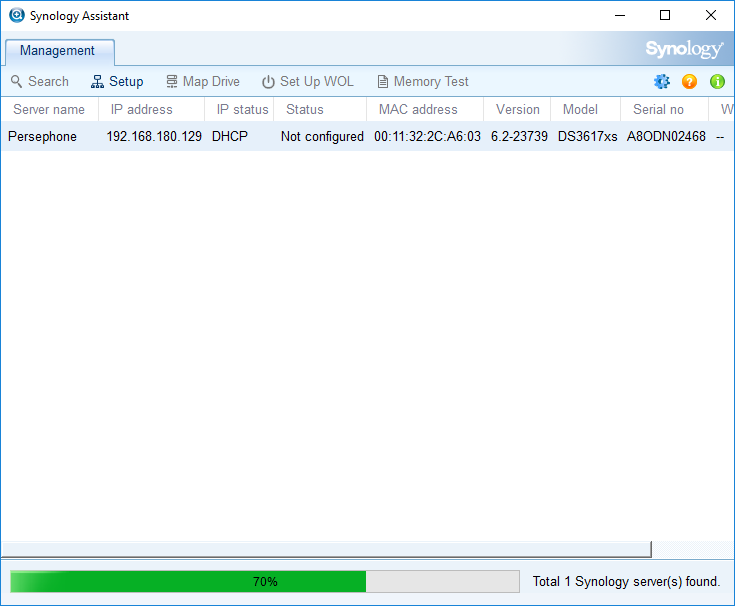

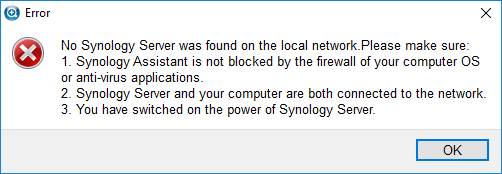

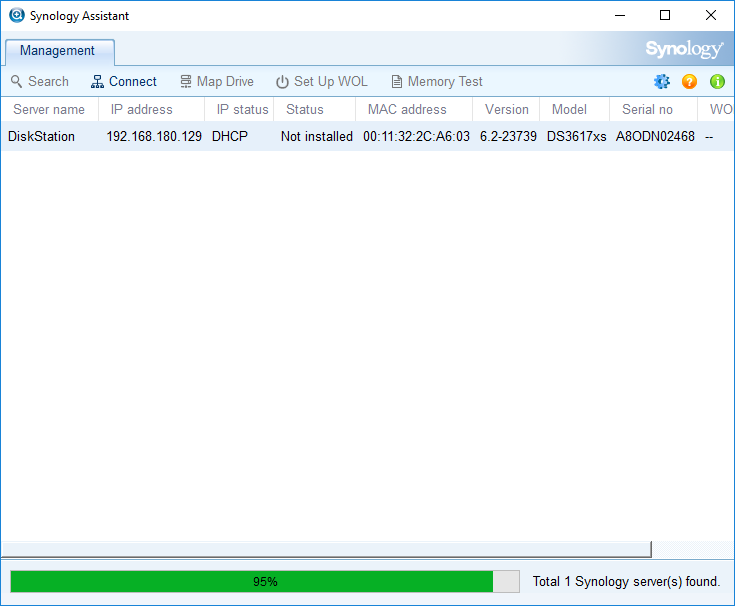

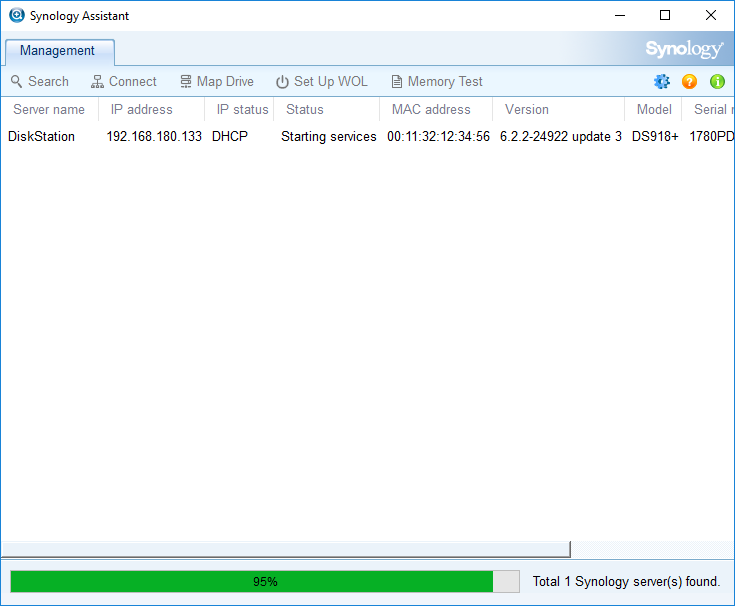

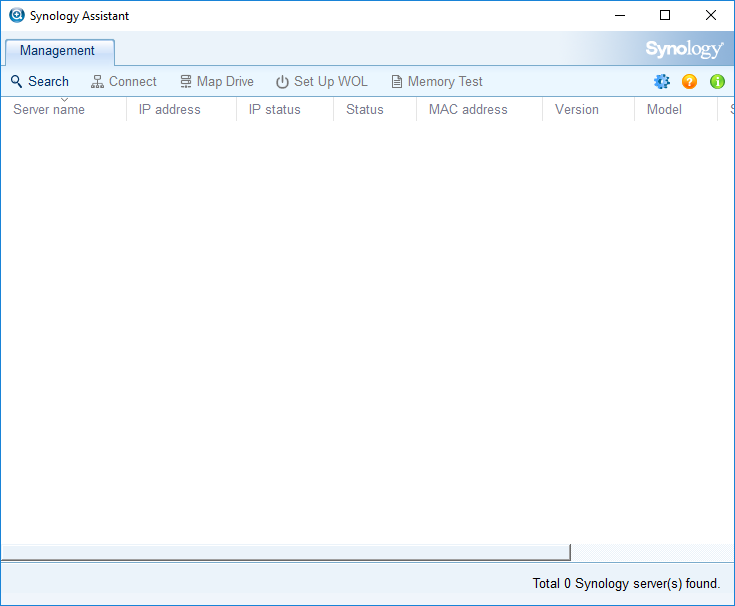

    7: Open the “Synology Assistant”, which is more efficient than the page http://find.synology.com to find your VM, and after 1 minute click on “Search”. If you didn’t wait long enough, you will see an Error message (In such a case, click Search “Again”. I never had to do this more than 3 times).

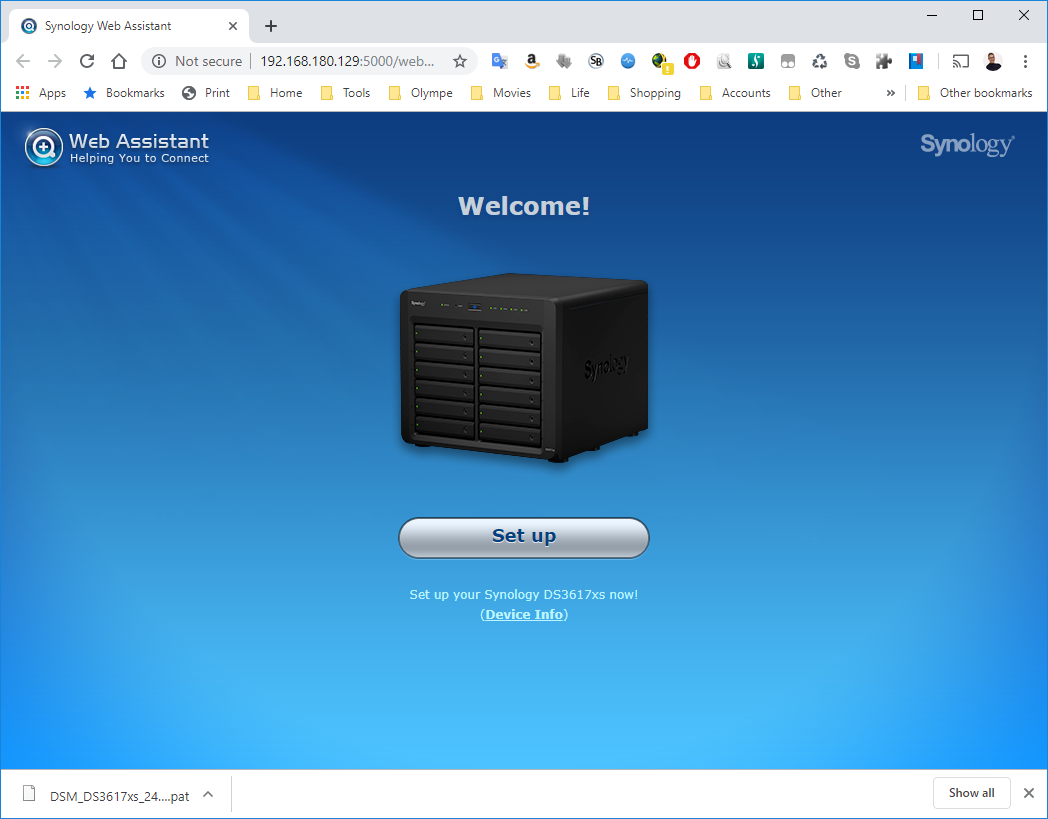

    8: Finally, the Assistant will find your VM. A webpage should automatically open (Otherwise, right click on the VM and select “Install”). Click on “Set up” in that page.

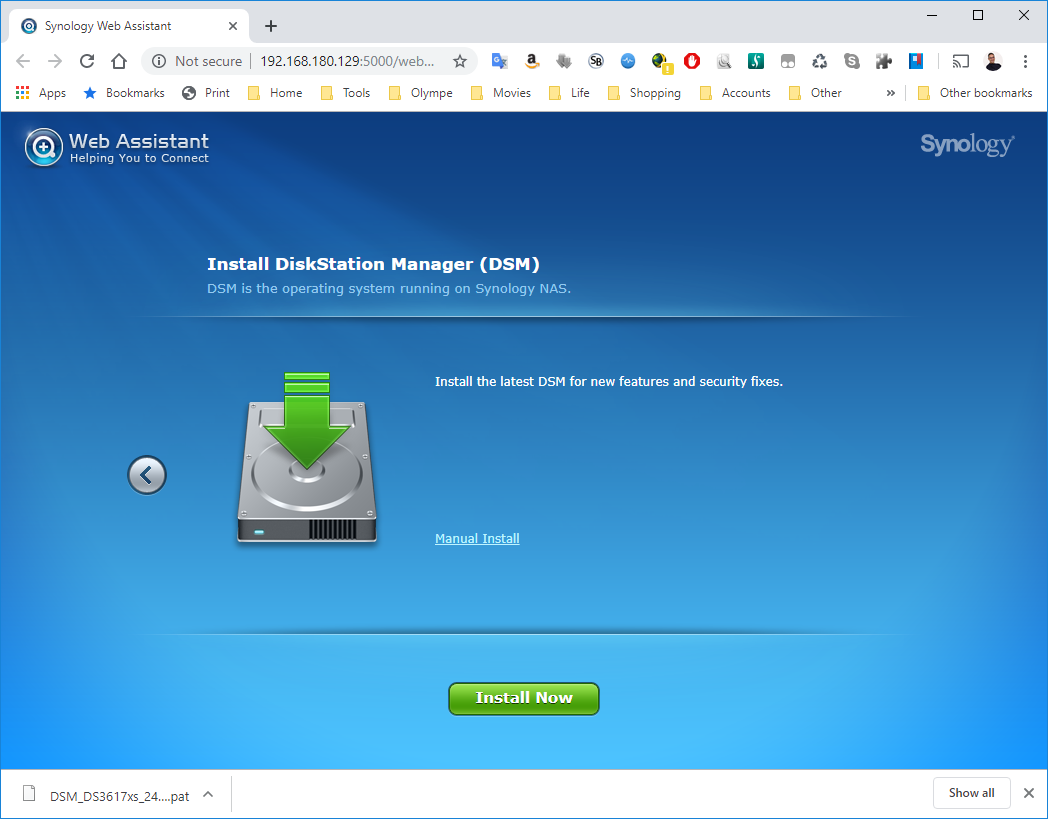

    9: Click next on the link “Manual Install”.

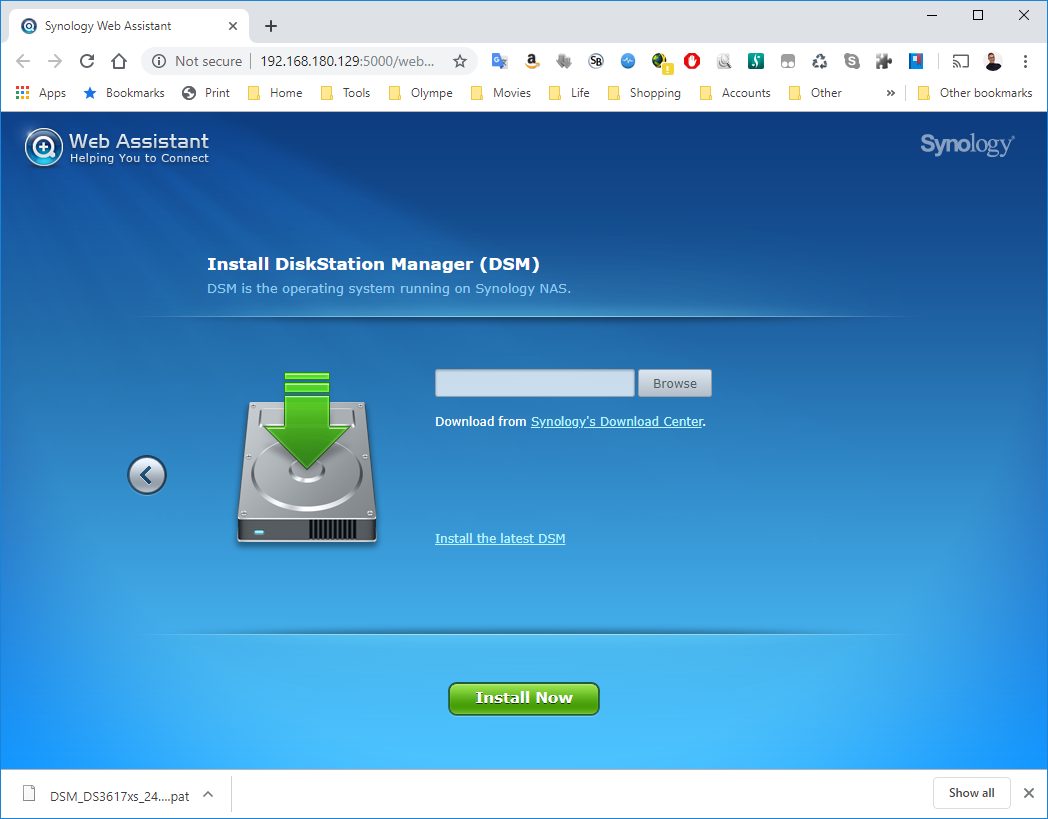

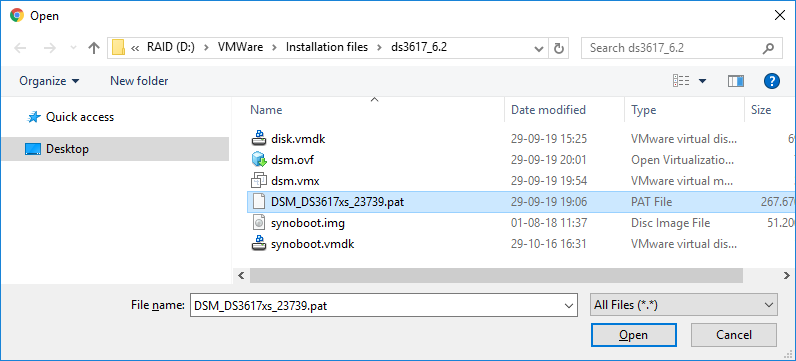

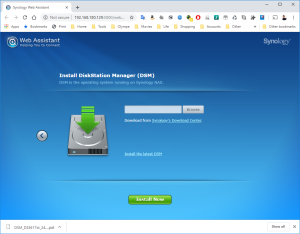

    10: Click on Browse to select the image of the DSM 6.2.2 for DS3617xs and select the file “DSM_DS3617xs_23739.pat” in the folder when you unzipped the package downloaded here previously.

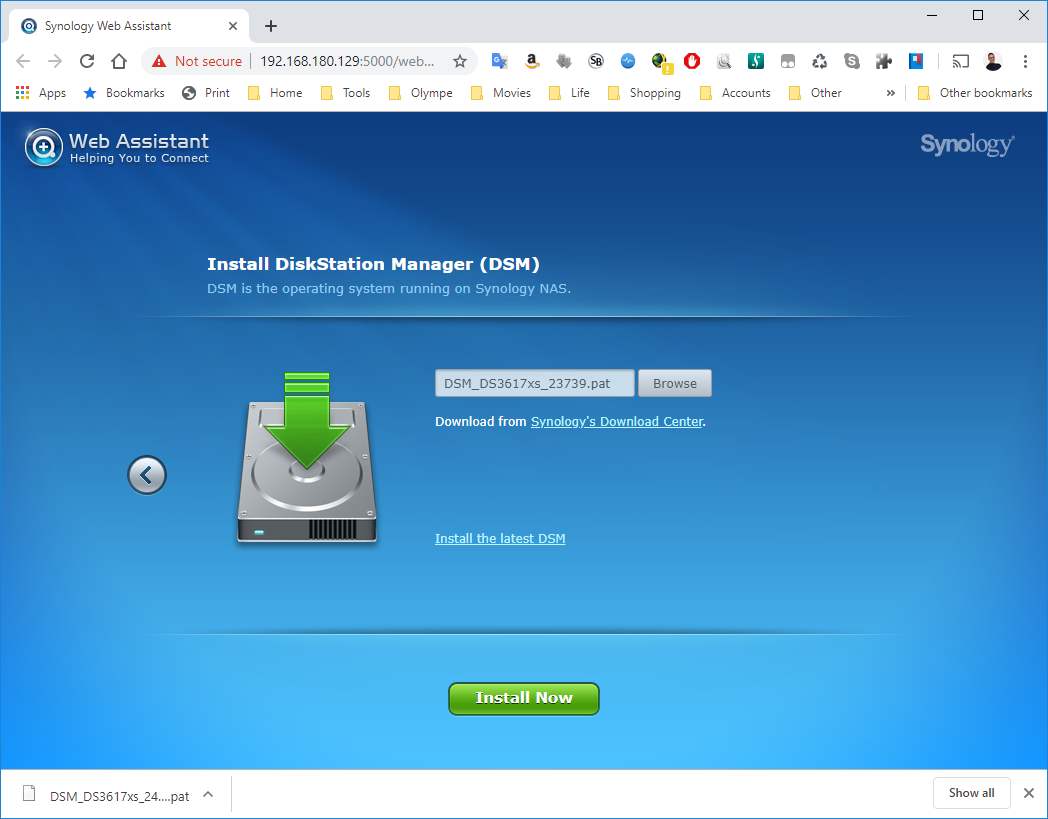

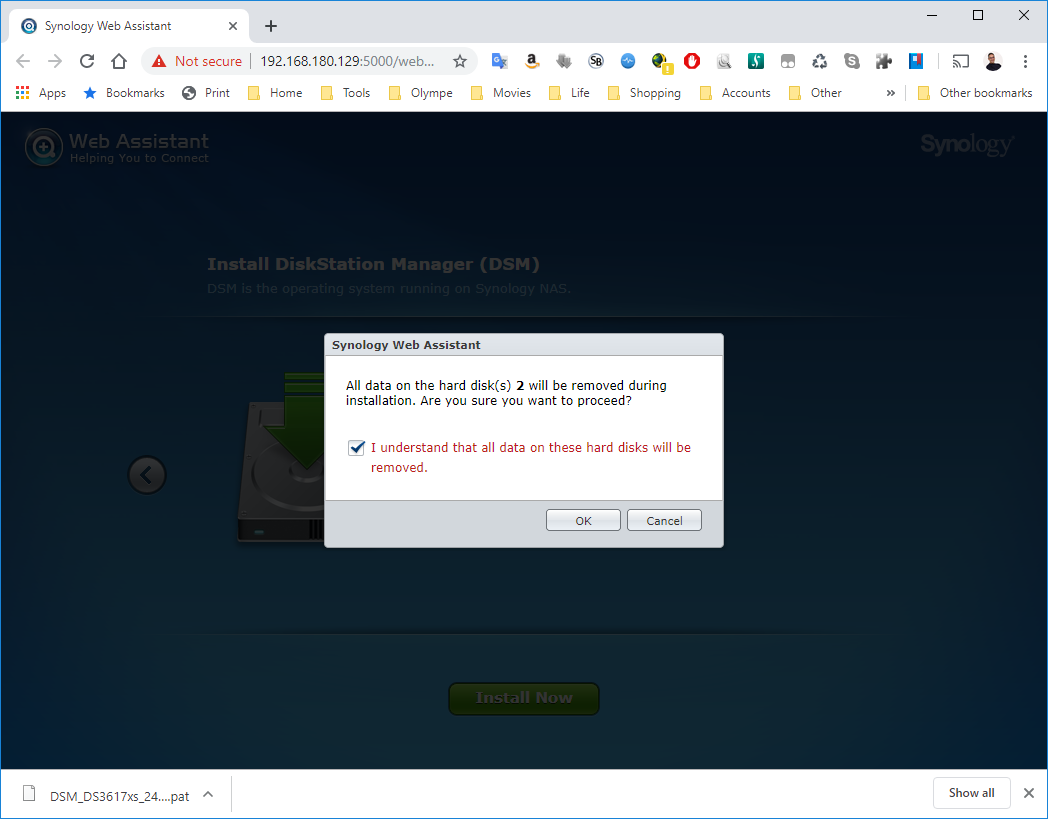

    11: Finally, click on “Install Now” and confirm that the installation can override the disk… it’s the virtual SCSI Hard Disk member of the VM. No worry 😉

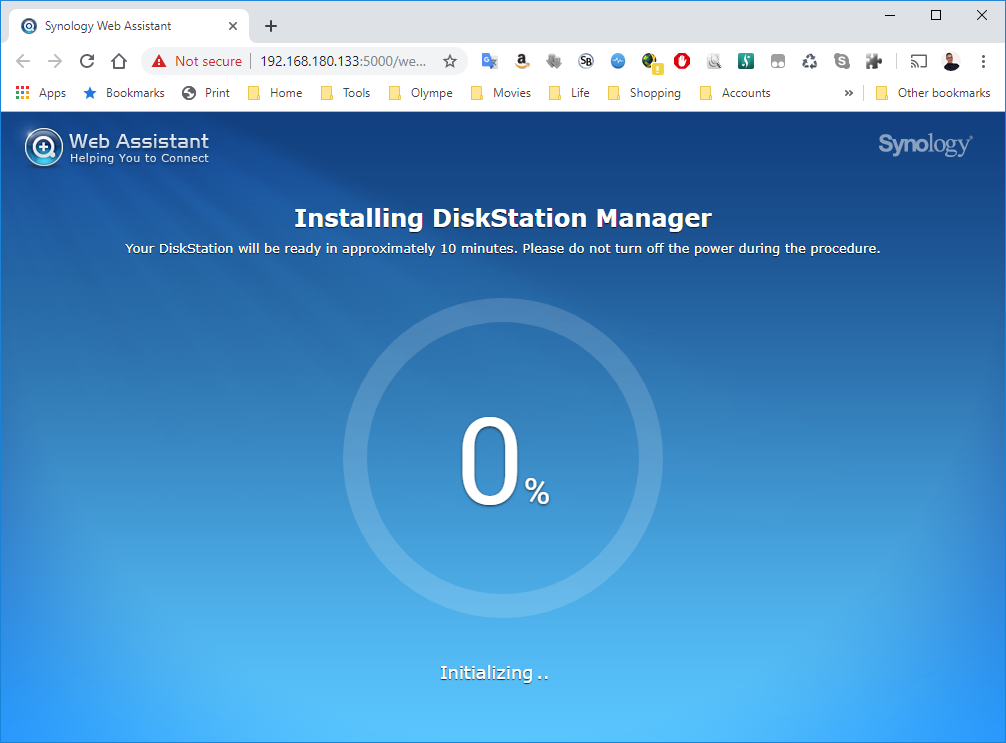

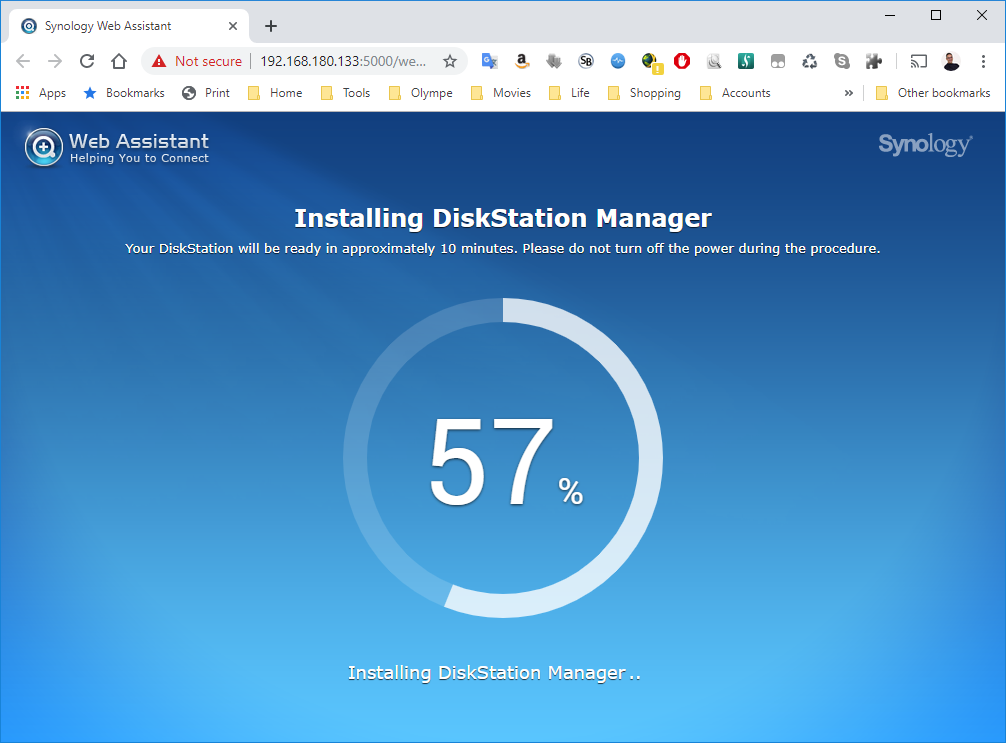

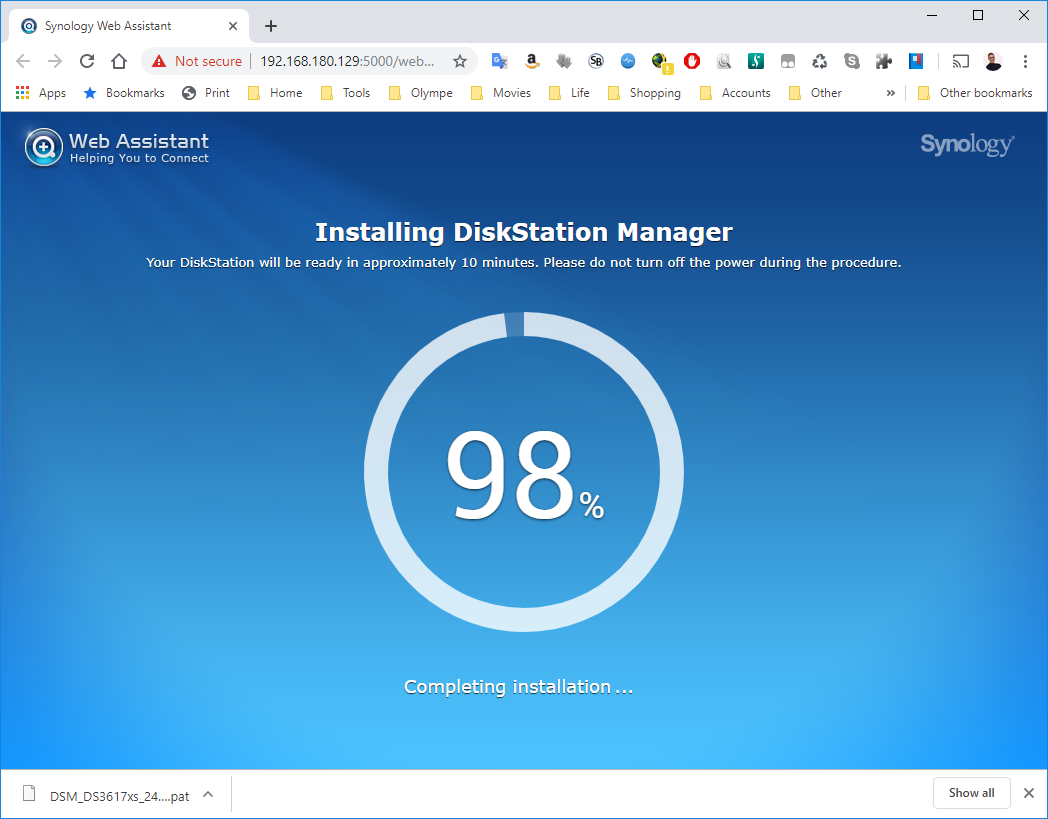

    12: The installation will take a few minutes and once completed, you will see in the VMWare Workstation that the VM is rebooting.

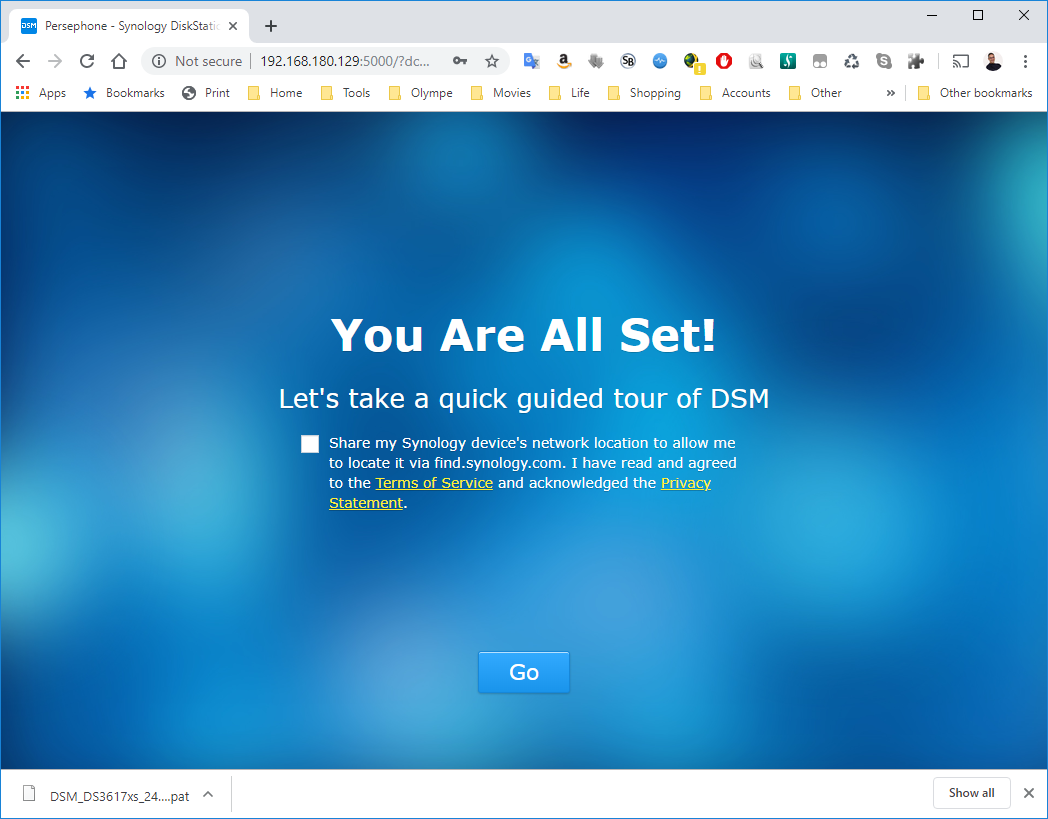

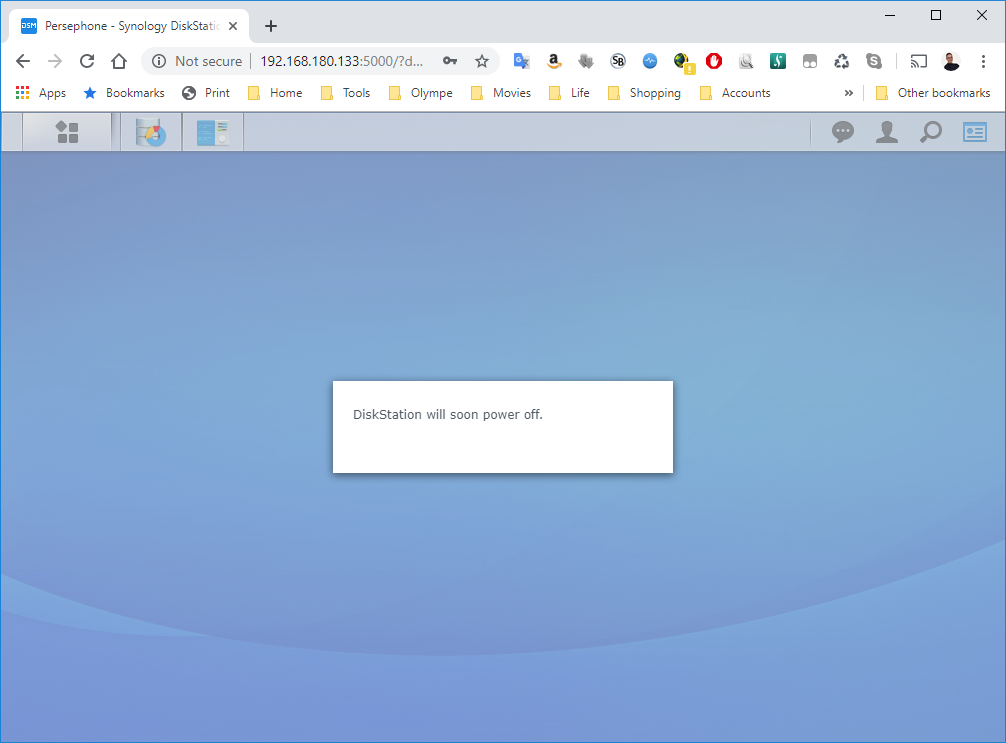

    13: On the installation page, you see a count down. If you want to check the status of the VM, you can go back to the Synology Assistant and Click Search. You should see that it’s restarting, etc… and is finally ready. At that moment, you can select the VM and click Connect.

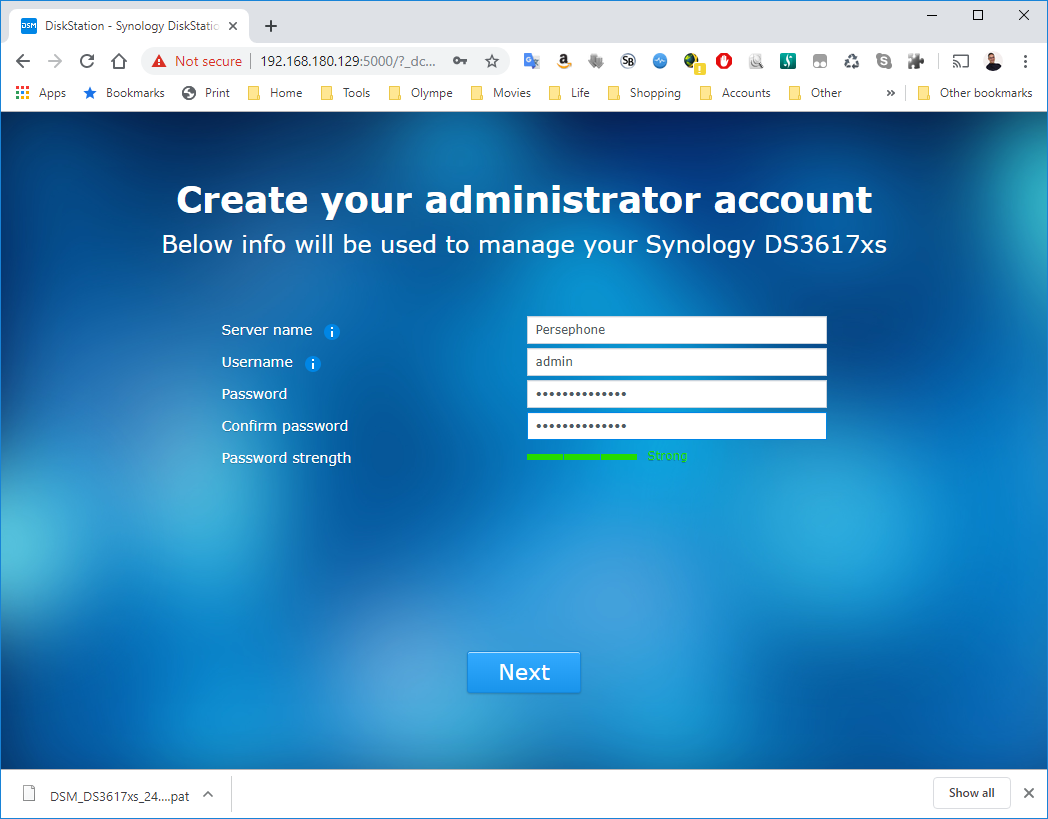

    14: You will now be able to login into the VM and configure it. DO NOT select “Install the latest DSM version automatically” or “Install the important updates of DSM automatically”!!! The image 37739 is the latest compatible with the loader used by this VM. Upgrading your DSM will break the VM.



    15: You have now a DS3617xs with the DSM 6.2.2-23739.

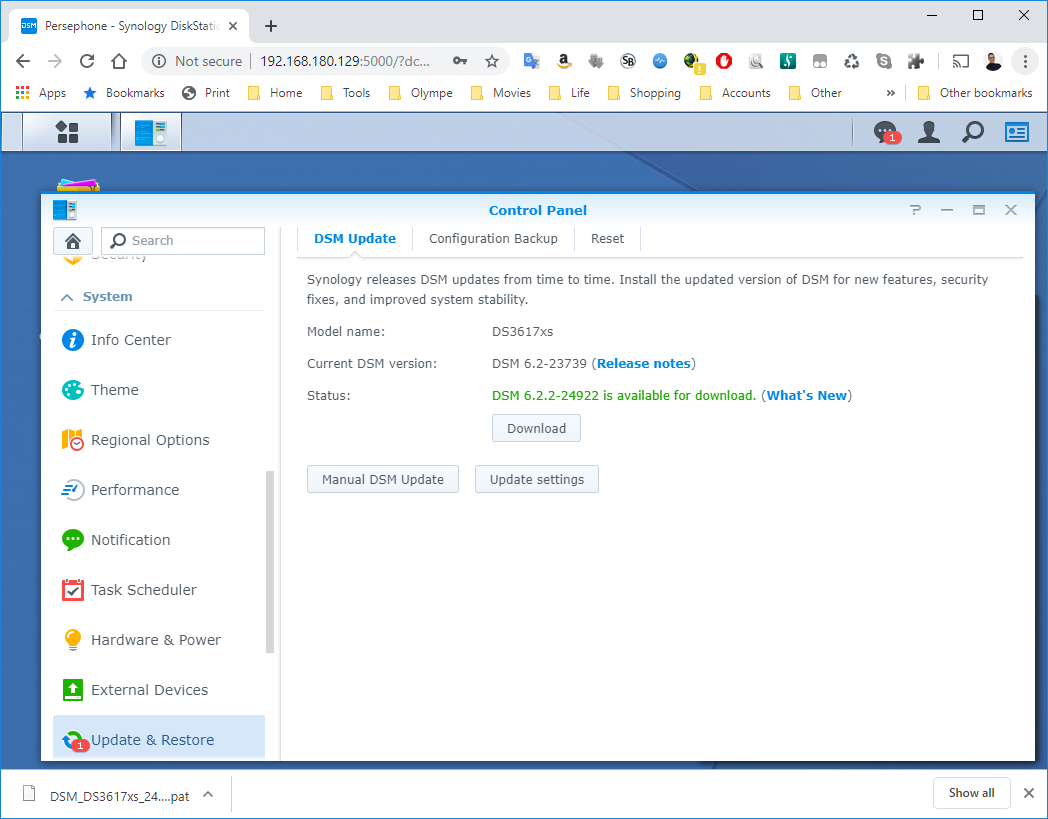

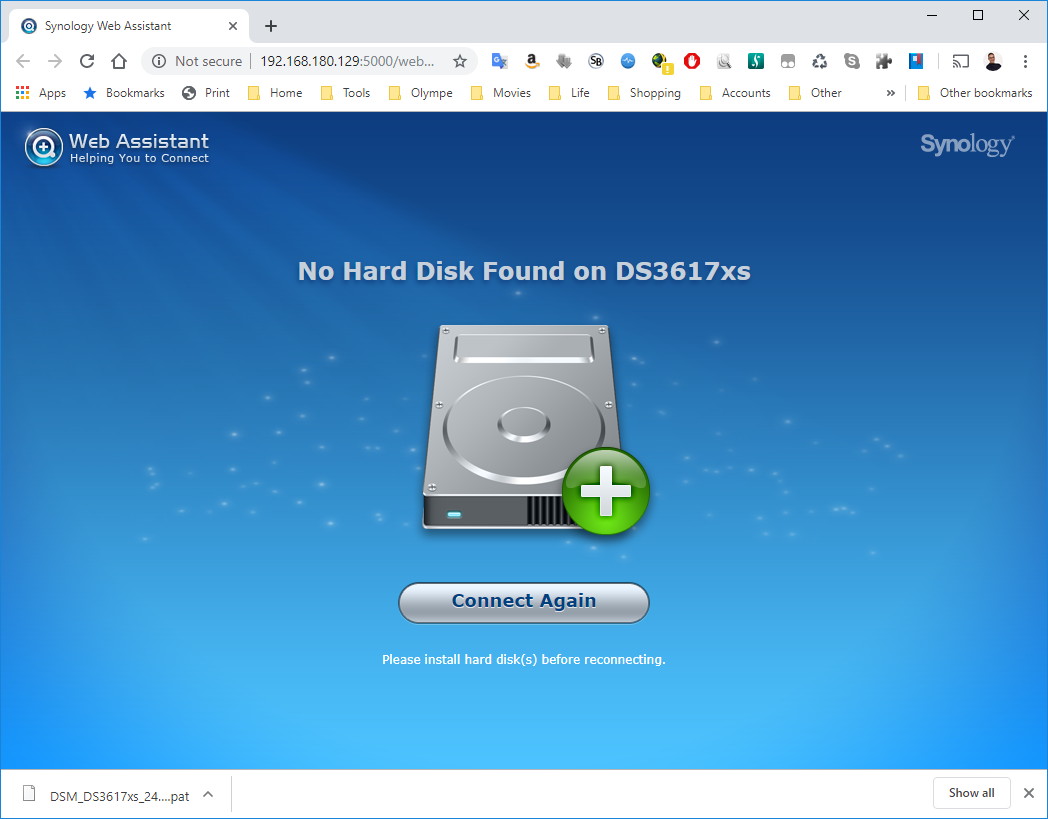

    16: DO NOT upgrade or the disk will disappear and the VM won’t work anymore (Someone mentions that mounting the Disk on a SATA controller instead of a SCSI one helped… See here. But it didn’t work for me). Looking into the Synology Assistant, you would see that the Virtual Synology is not configured.

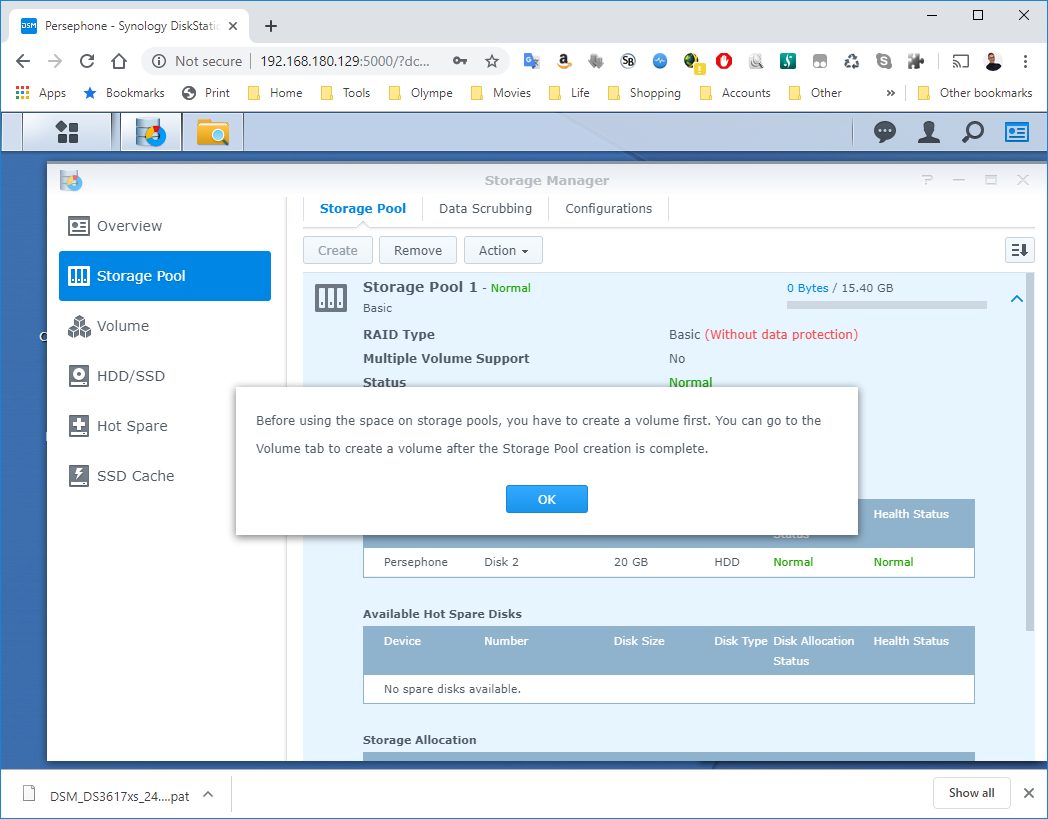

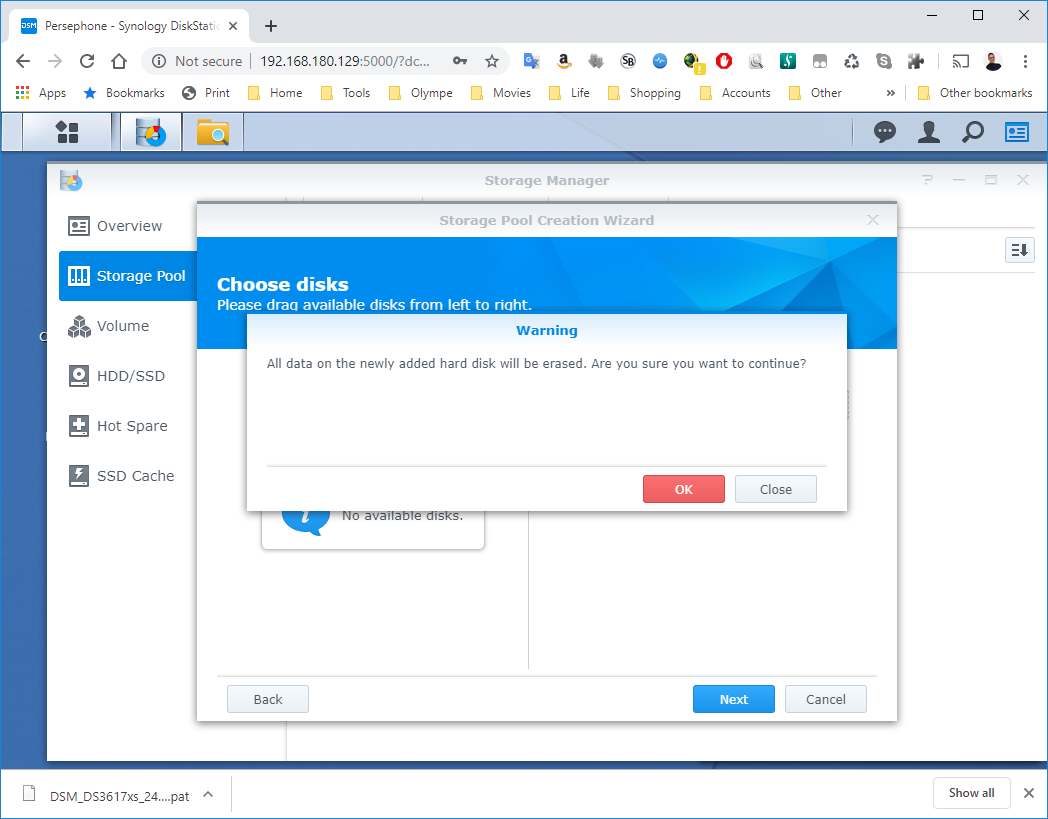

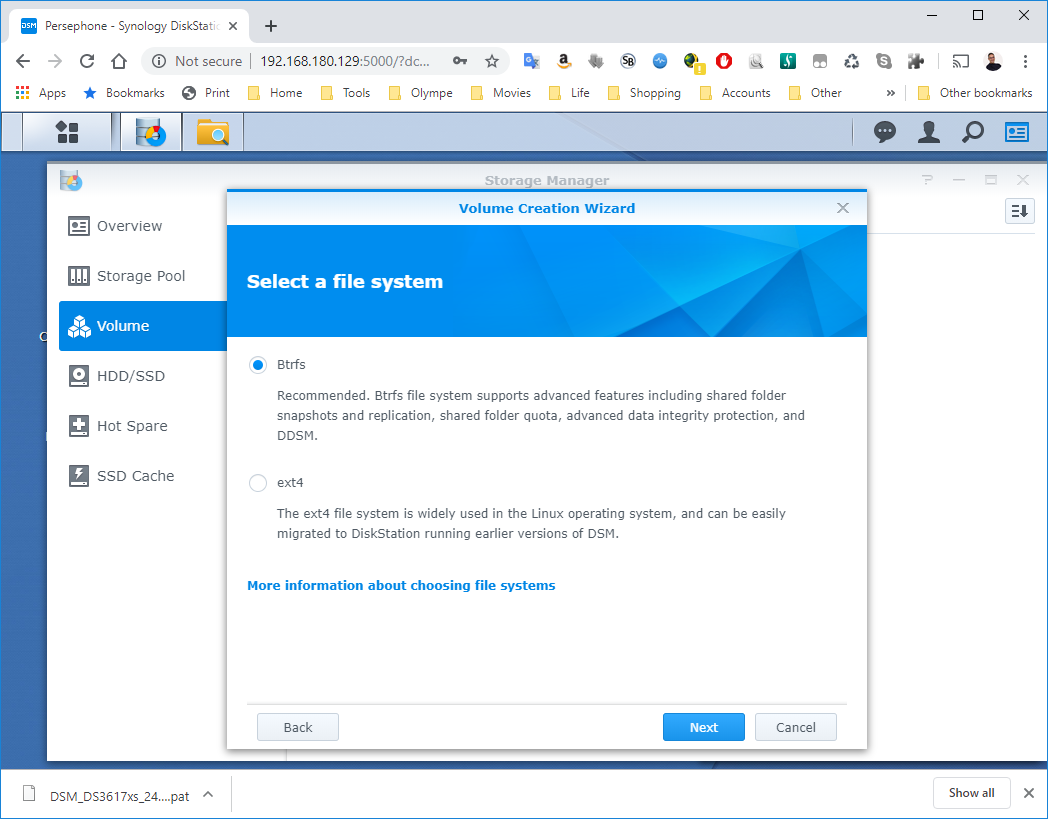

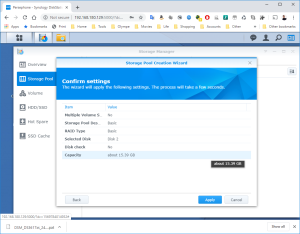

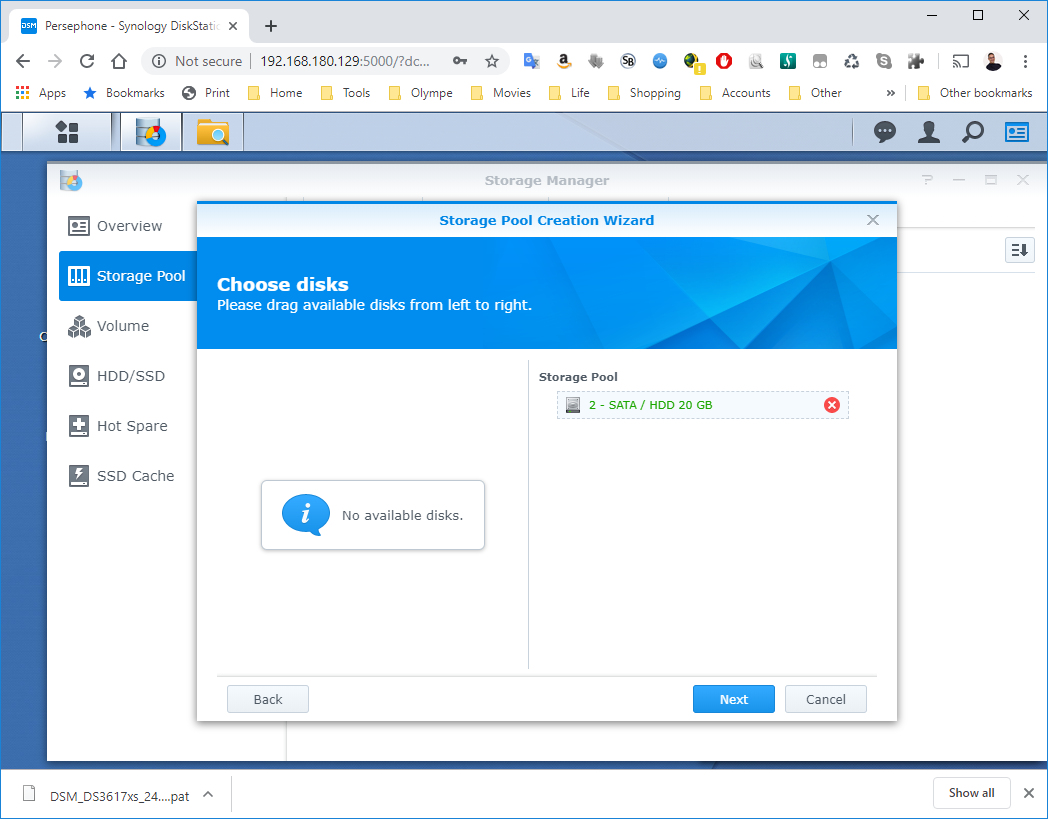

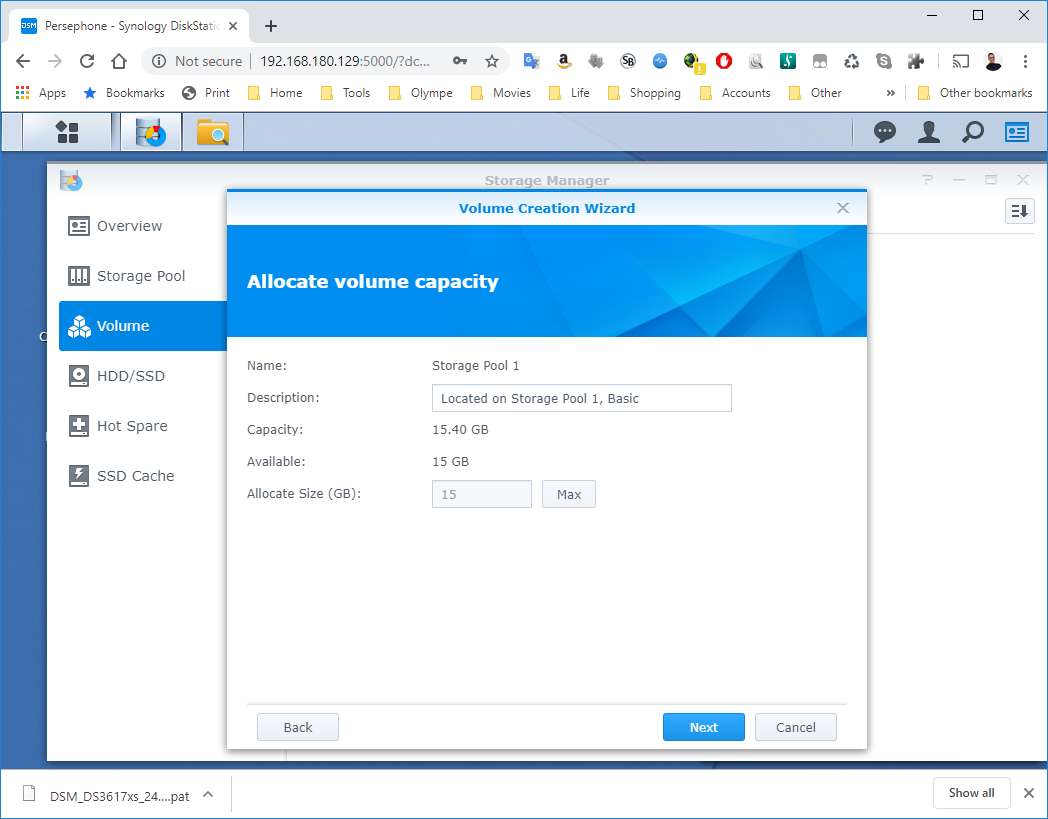

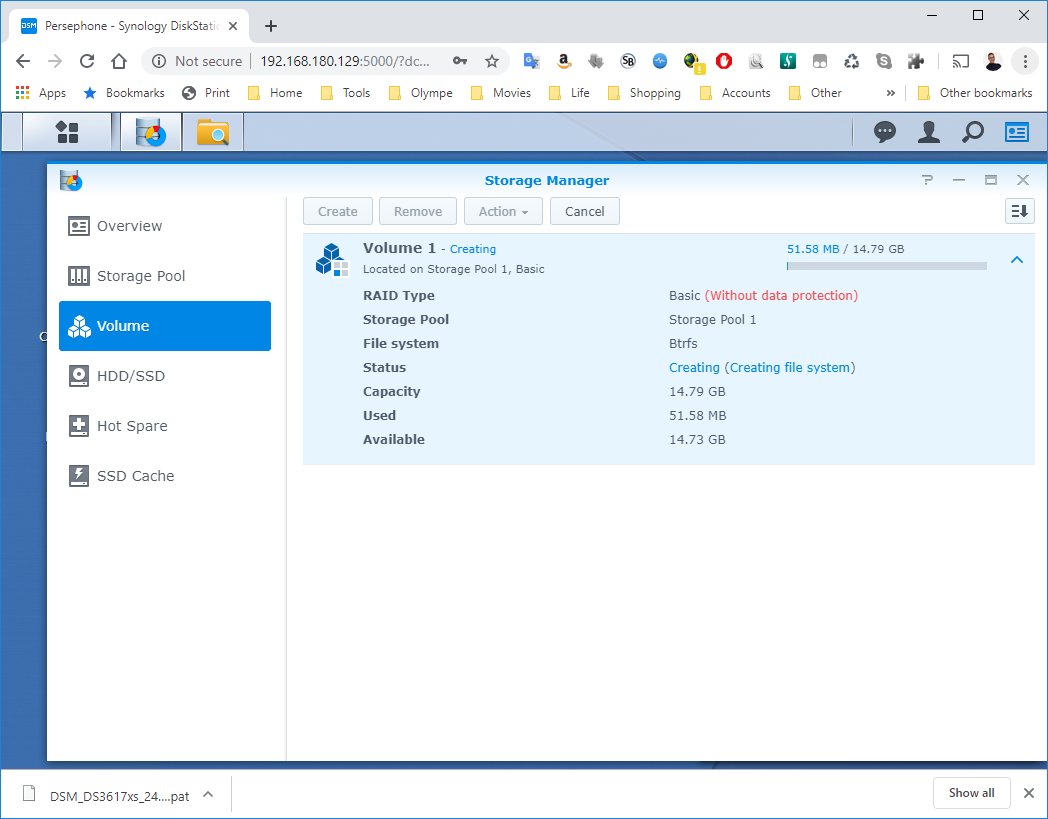

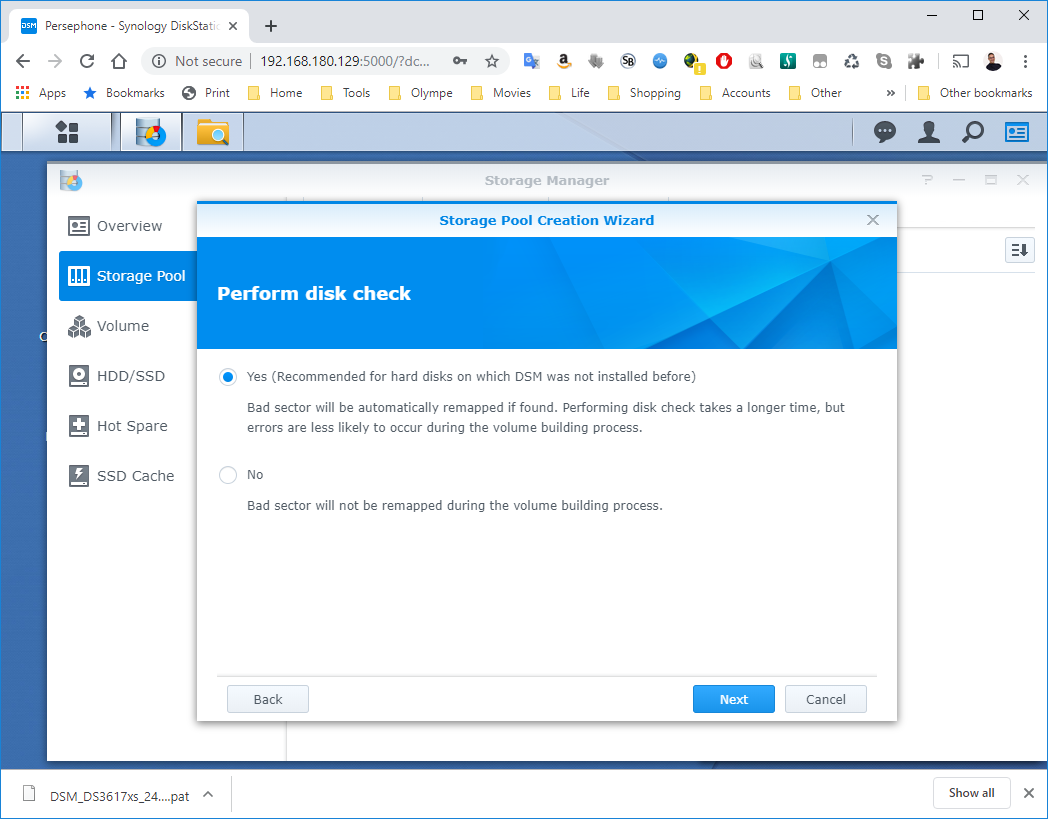

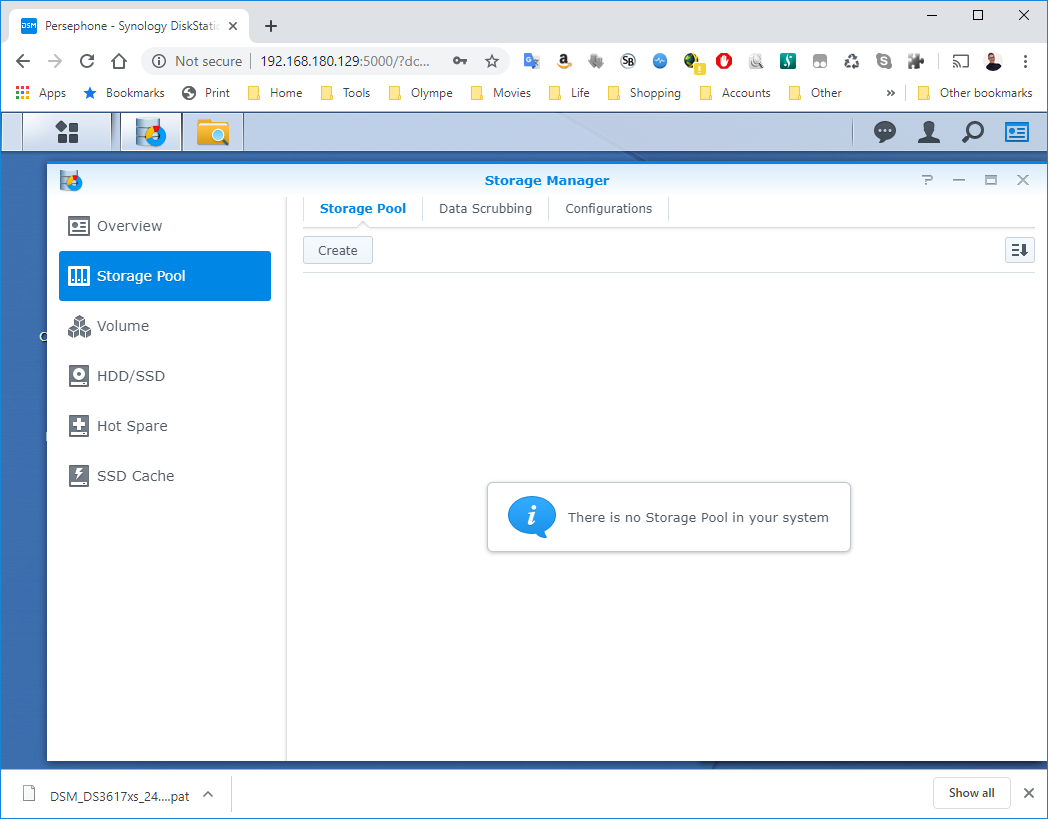

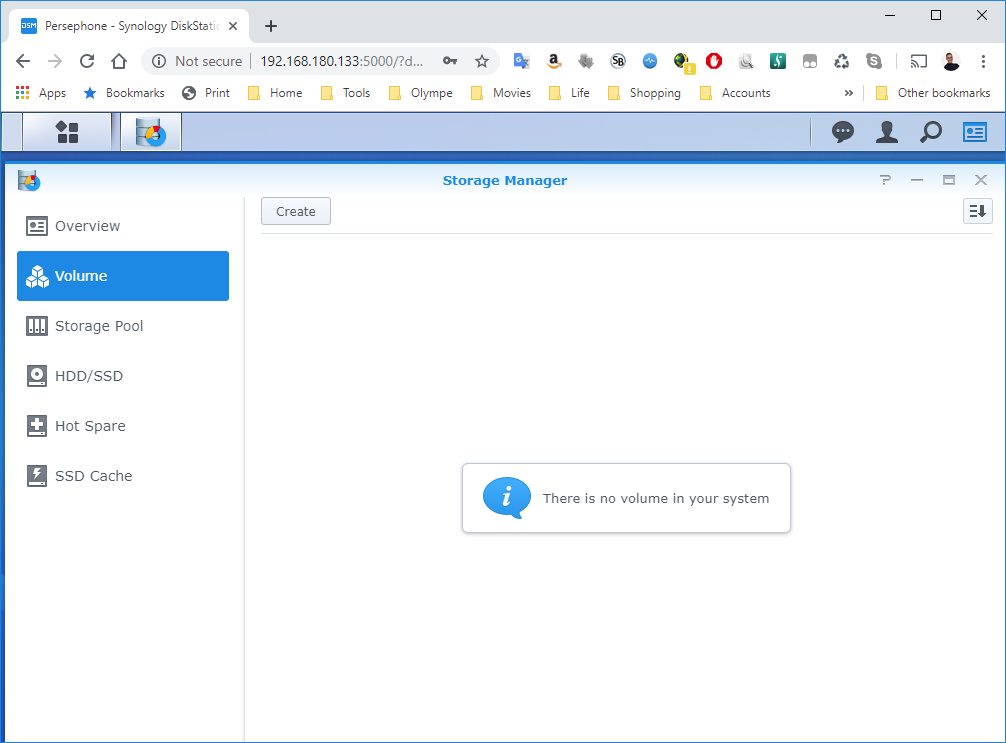

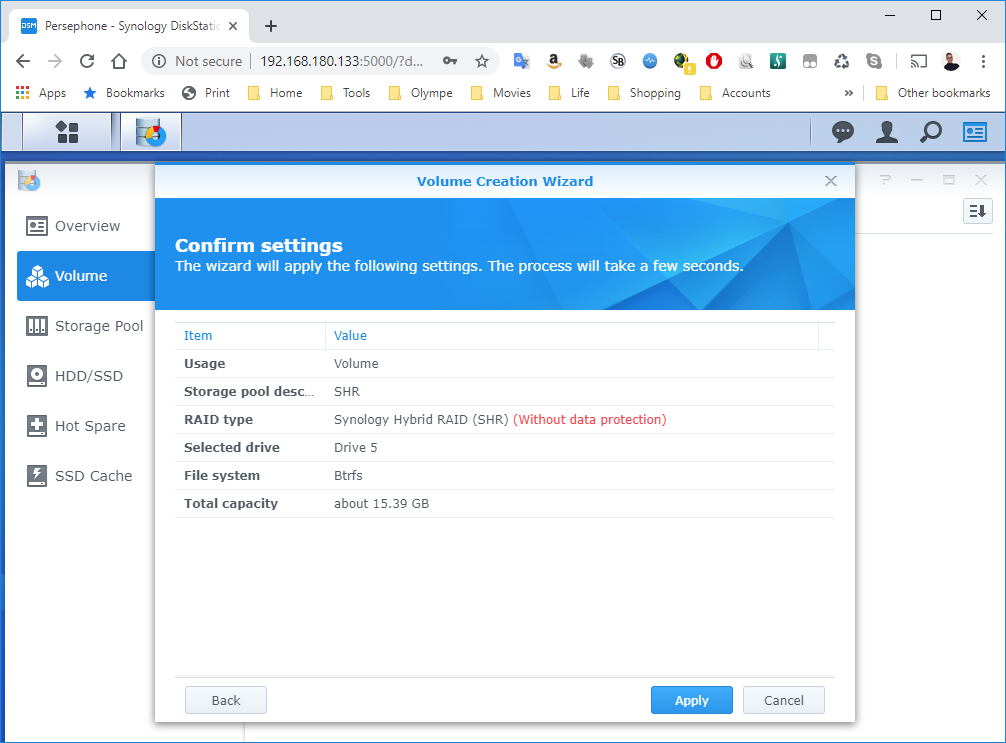

    17: It’s now time to use the SCSI Hard Disk to create a first Volume. Open the DSM Main Menu and start the Storage Manager. Go to “Storage Pool” and click “Create”. Use the HDD of 20GB. Next, go to “Volume” and click “Create”. Use the “Storage Pool” created previously.

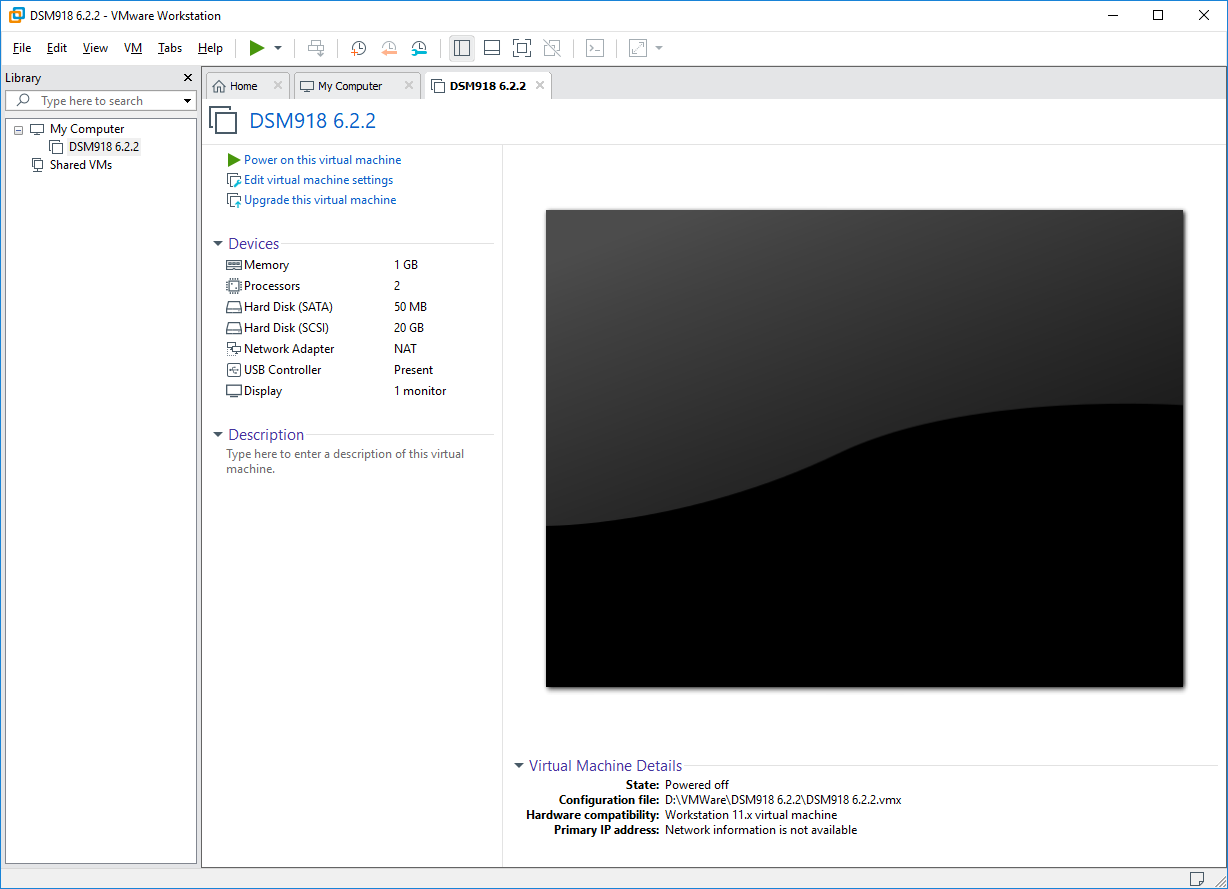

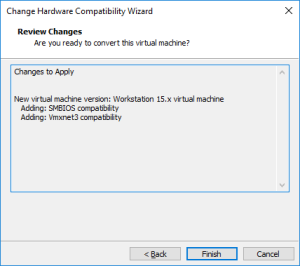

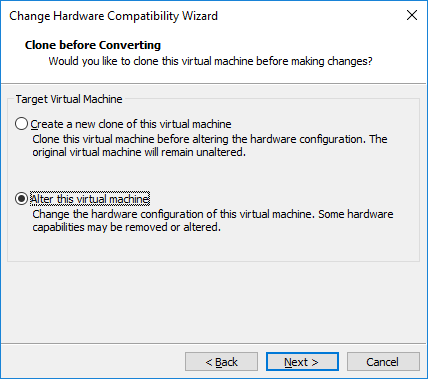

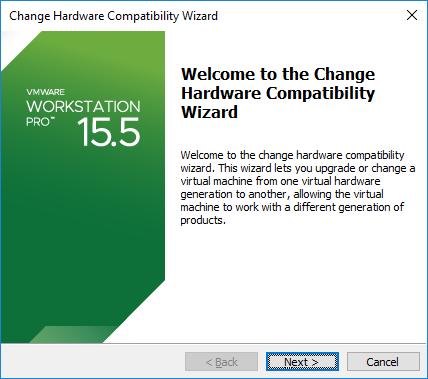

    18: Now, you can upgrade the VM to your version of VMWare. Shutdown the DSM Properly (via the menu on the Buddy Icon in the top-right corner). The VM will soon stop.

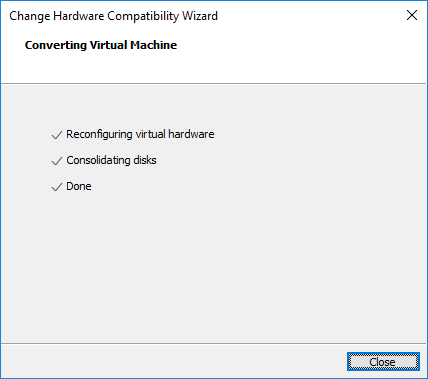

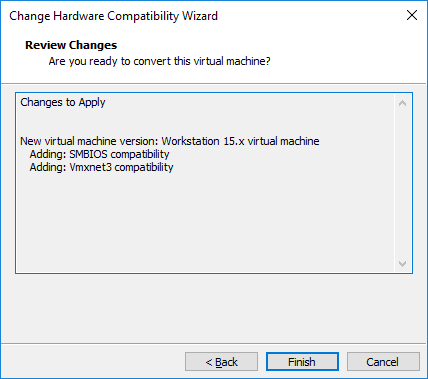

    19: Once the VM stopped, upgrade it by clicking on “Upgrade this virtual machine”.

    Et voilà !

    Loading

  • Setup DSM 6.2.2 in a Virtual Synology DS918+ using VMWare

    Here is a step by step “How-To create a Virtual Machine to emulate a DS918+ running DSM 6.2.2” using VMWare and Xpenology

    Click to Read More

    Xpenology is a bootloader for Synology’s operating system which is called DSM. It can be used to setup DSM on a PC or in a Virtual Machine like VirtualBox or VMWare.

    I am using VMWare 15. But any version from VMWare 11 should work.



    1: Download and unzip this package, containing:

    • the configuration of the virtual machine (dsm.ovf, dsm.vmx, disk.vmdk and synoboot.vmdk),
    • the xpenology boot file for DS918+ (synoboot.img) and
    • the image of the DSM 6.2.2 for DS198+ (DSM_DS918+_24922.pat)

    2: Open VMWare Workstation. If you never configured the default location where you want to create your Virtual Machines, press CTRL-P to open the “Preferences” panel. There, set this default location (I am using D:\VMWare).

    3: Go next to “Windows Explorer”, in the folder where you have unzipped the package, and double click dsm.ovf. This is going to import the VM into VMWare. Type a name for the new virtual machine (I am using DSM918 6.2.2) and click “Import”.

    4: Here is the outcome to the importation. You can now click on “Power on this virtual machine”. If you want, you may also first increase the Memory, the Processors or the size of the SCSI Hard Disk (Do not touch the SATA Hard Disk which contains the boot loader).

    5: As soon as you have run the VM, click into hit to let it capture the keyboard, and press the “down arrow” to select the loader for “VMWARE/ESXI” (attention, you don’t have a lot of time to start the selection). Press next Enter and it will boot.

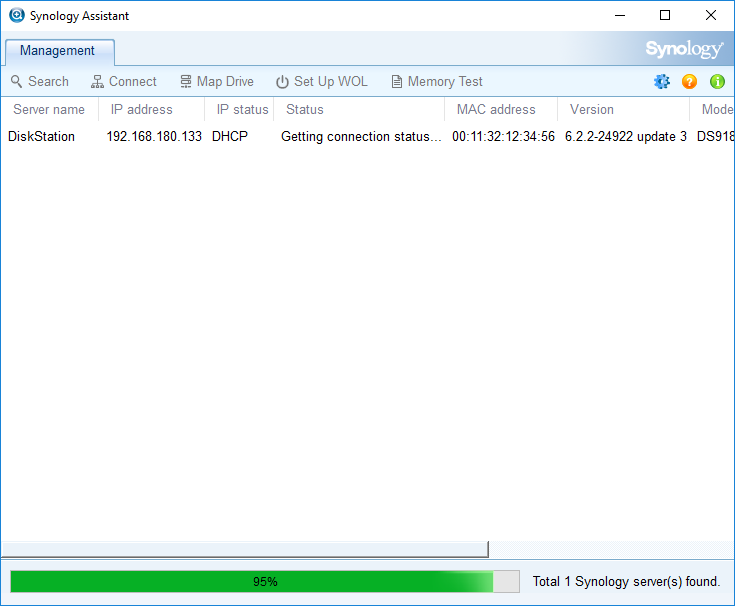

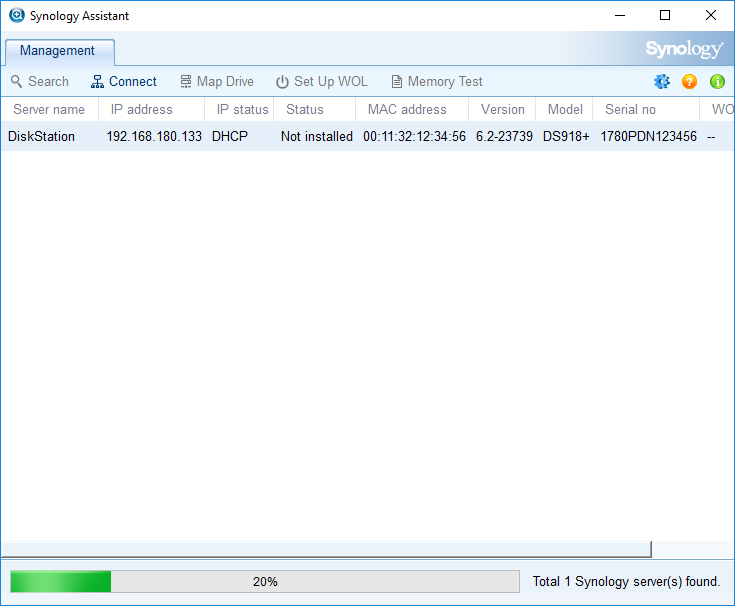

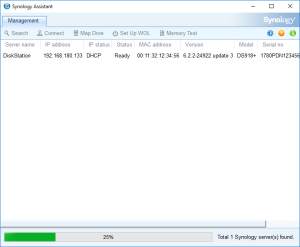

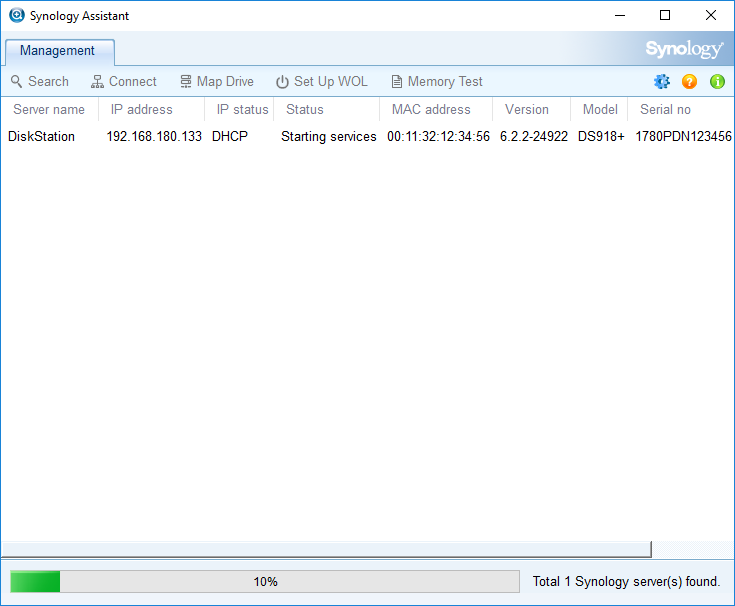

    6: Open the “Synology Assistant”, which is more efficient than the page http://find.synology.com to find your VM, and after 1 minute click on “Search”. If you didn’t wait long enough, you will see an Error message (In such a case, click Search “Again”. I never had to do this more than 3 times).

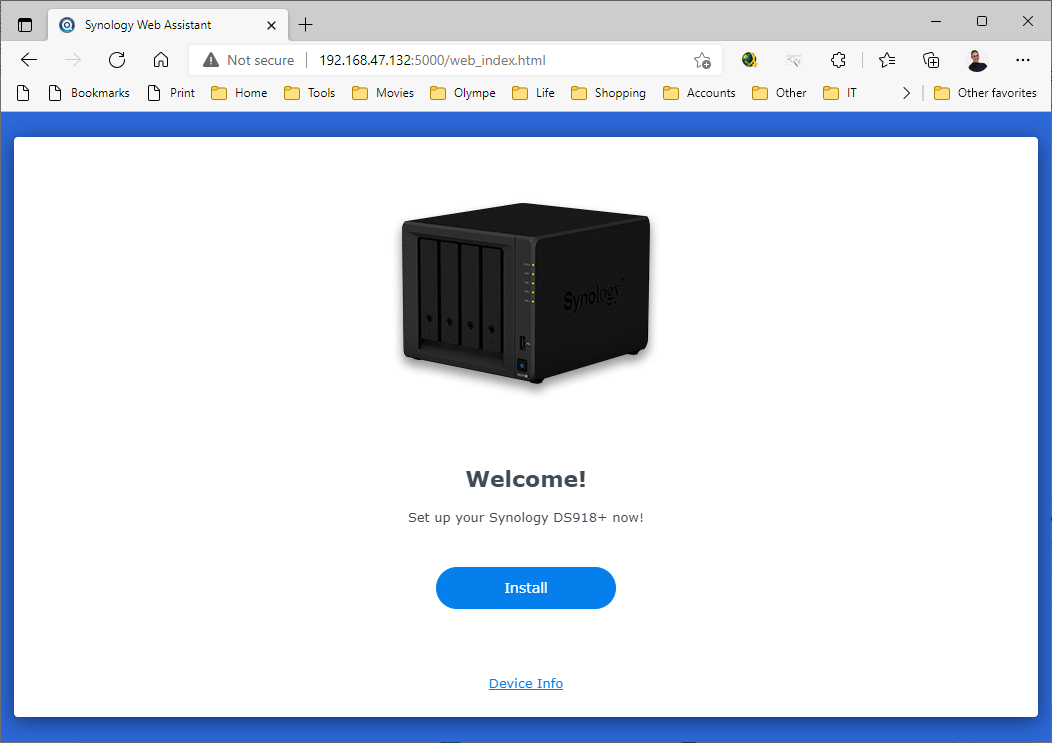

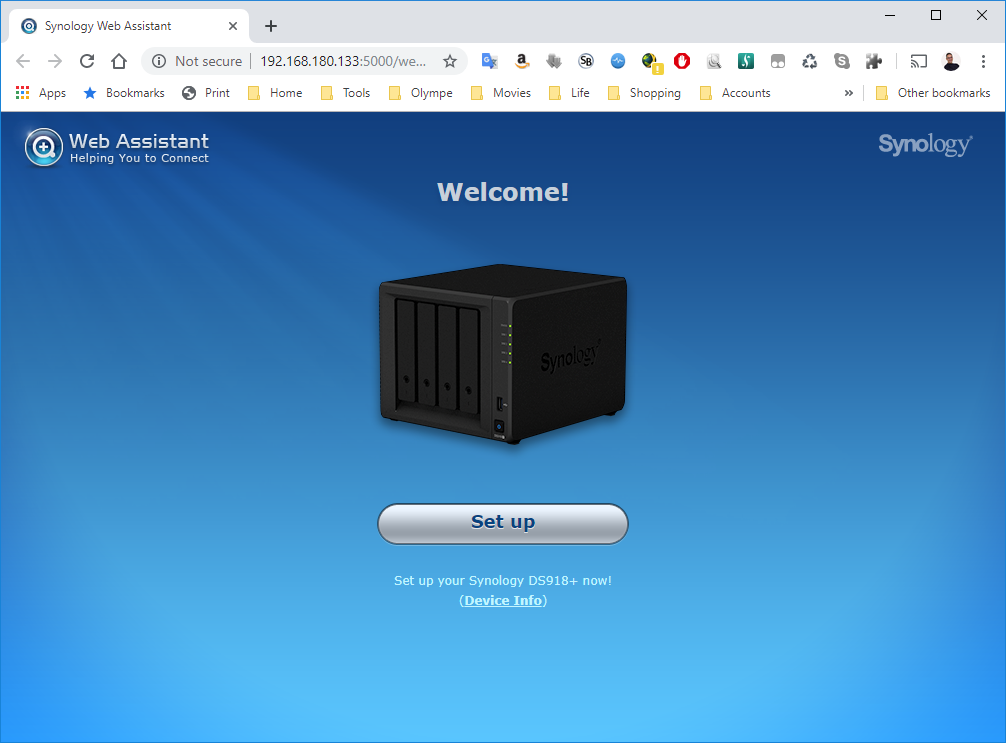

    7: Finally, the Assistant will find your VM. A webpage should automatically open (Otherwise, right click on the VM and select “Install”). Click on “Set up” in that page.

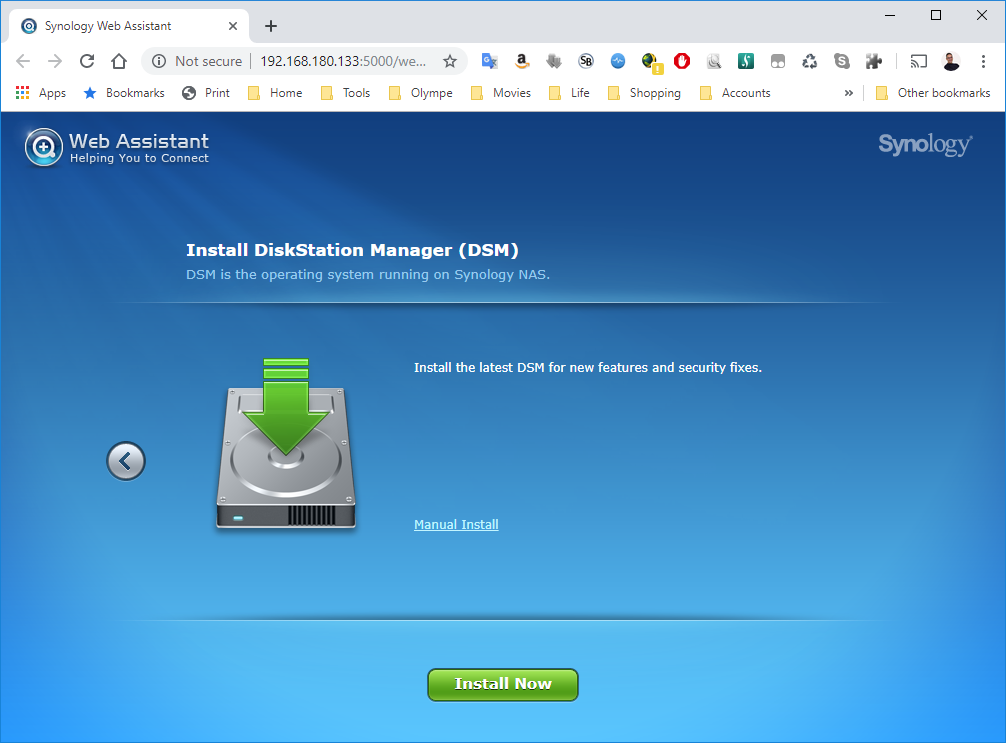

    8: Click next on the link “Manual Install”.

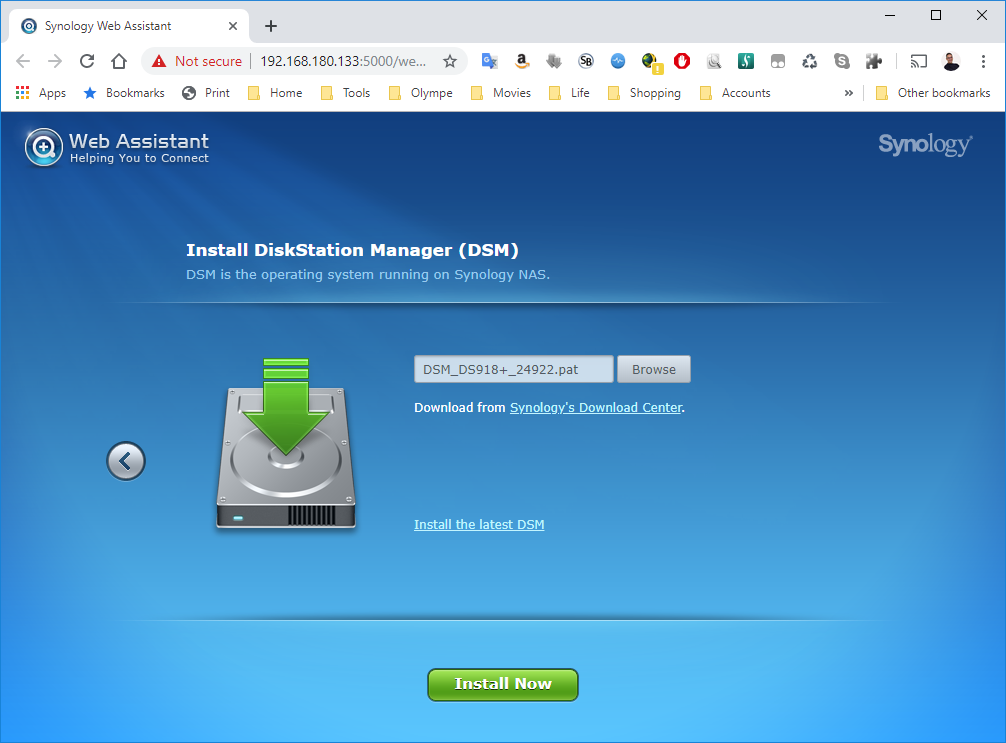

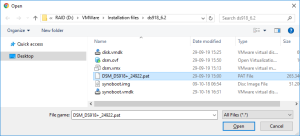

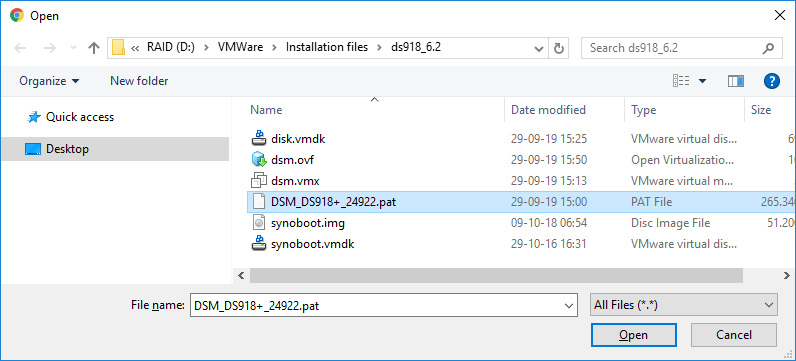

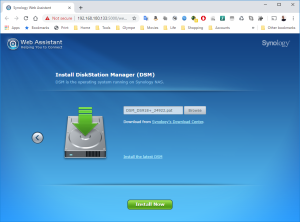

    9: Click on Browse to select the image of the DSM 6.2.2 for DS918+ and Select the file “DSM_DS918+_24922.pat” in the folder where you unzipped the package downloaded here previously.

    10: Finally, click on “Install Now” and confirm that the installation can override the disk… it’s the virtual SCSI Hard Disk member of the VM. No worry 😉

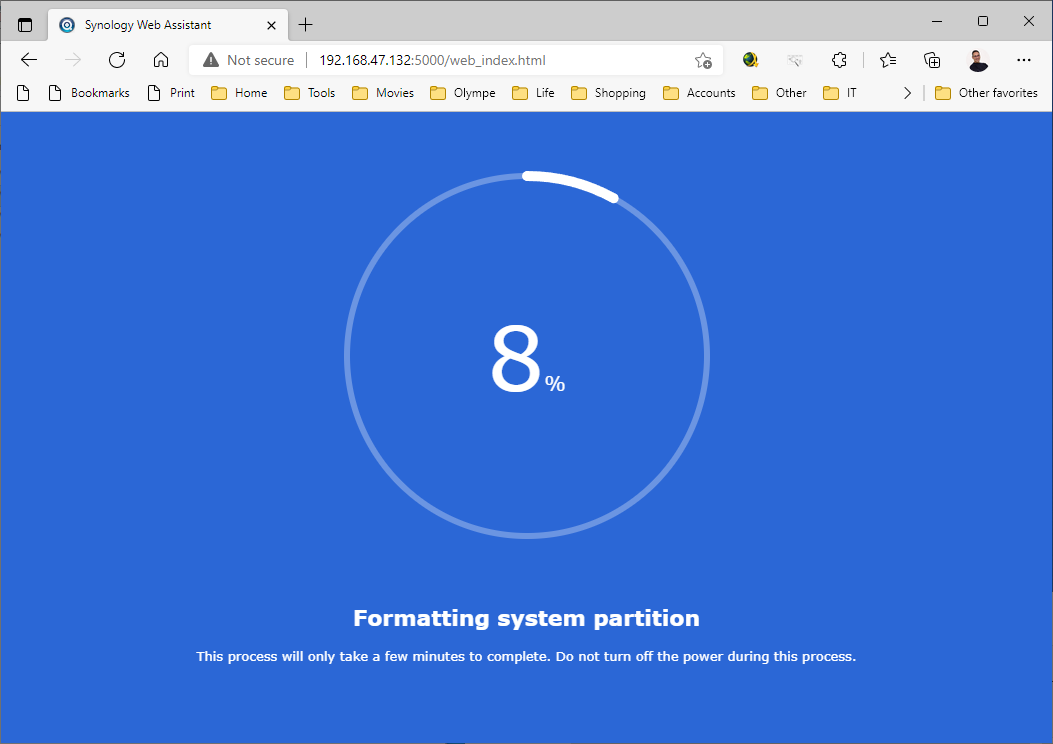

    11: The installation will take a few minutes

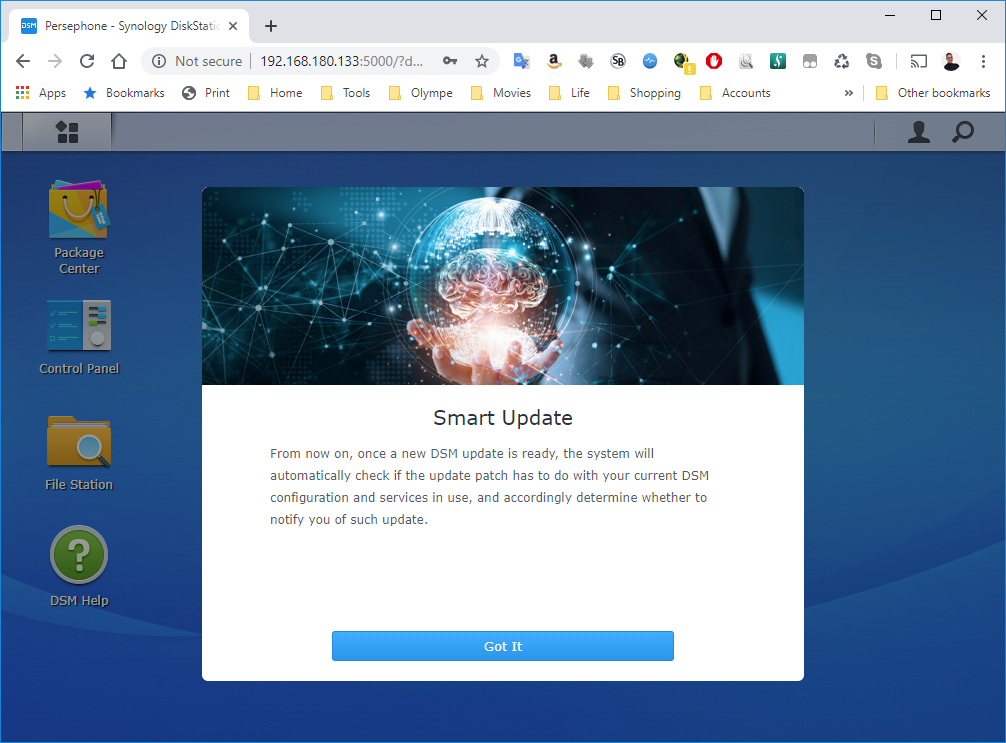

    12: Once the installation complete, you will see in the VMWare Workstation that the VM is rebooting. On the installation page, you see a countdown. If you want to check the status of the VM, you can go back to the Synology Assistant and Click Search. You should see that it’s restarting, installing patches, reconnecting and finally ready. At that moment, you can select the VM and click Connect.

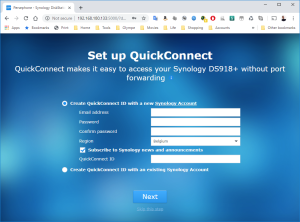

    13: You will now be able to login into the VM and configure it.

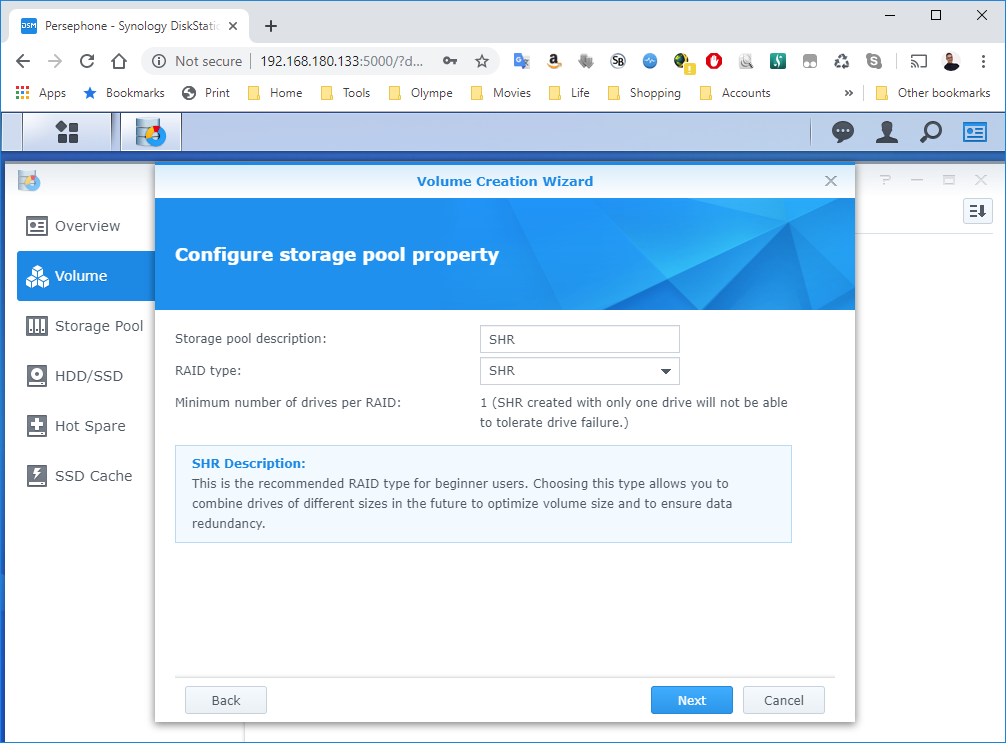

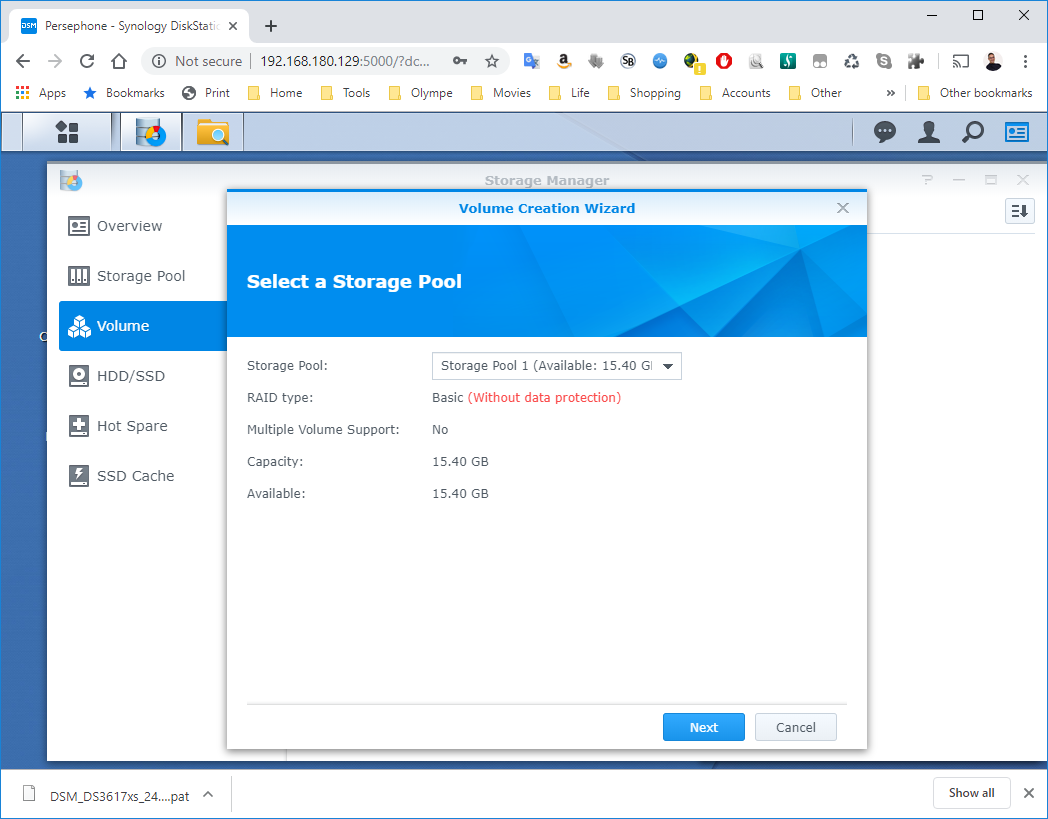

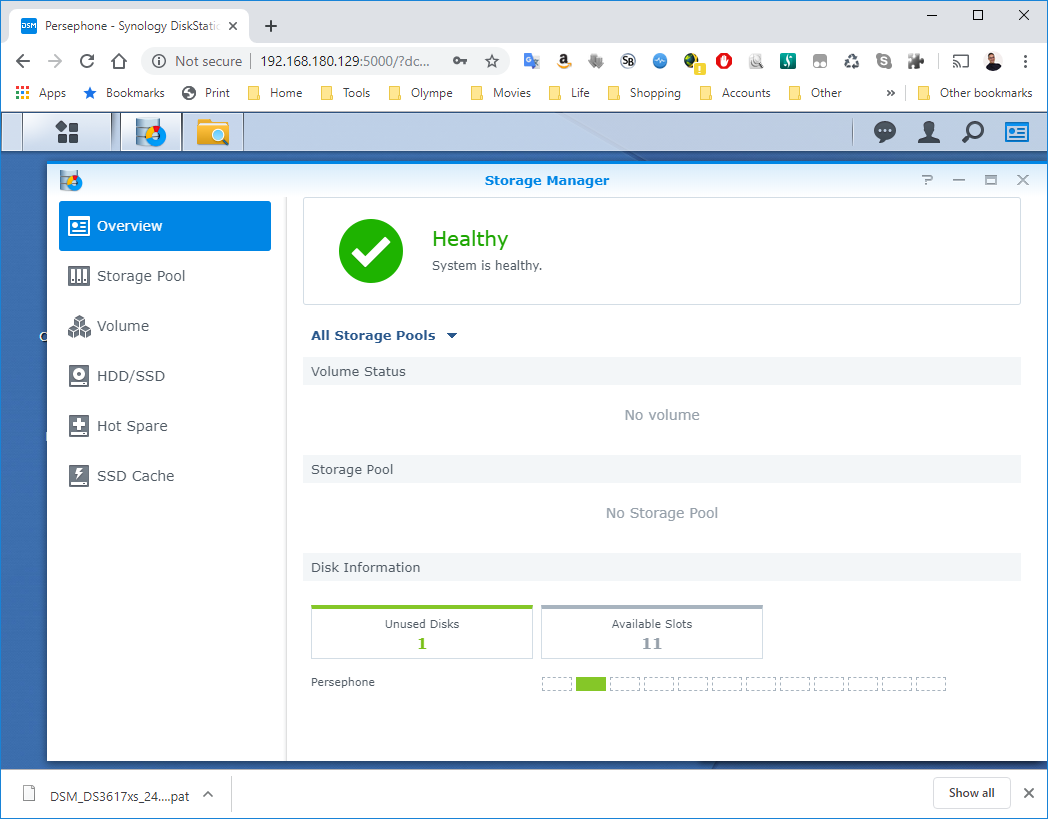

    14: It’s now time to use the SCSI Hard Disk to create a first Volume. Open the DSM Main Menu and start the Storage Manager.

    15: Go to Volume and click Create. Select the HDD of 20GB, etc…

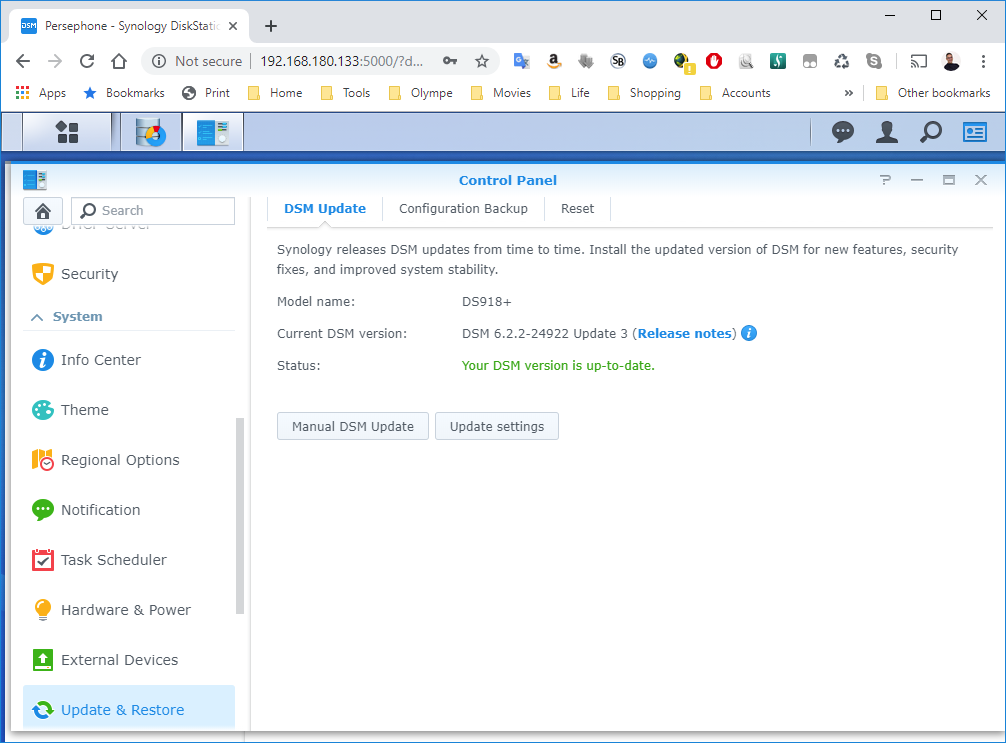

    16: You have now a brand new DS918+ with the DSM 6.2.2-24922 Update 3.

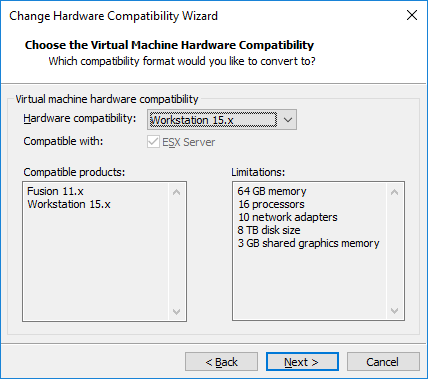

    17: Now, you can upgrade the VM to your version of VMWare. Shutdown the DSM Properly (via the menu on the Buddy Icon in the top-right corner). The VM will soon stop.

    18: Once the VM stopped, upgrade it by clicking on “Upgrade this virtual machine”.

    Et voilà !
